Main Assembly

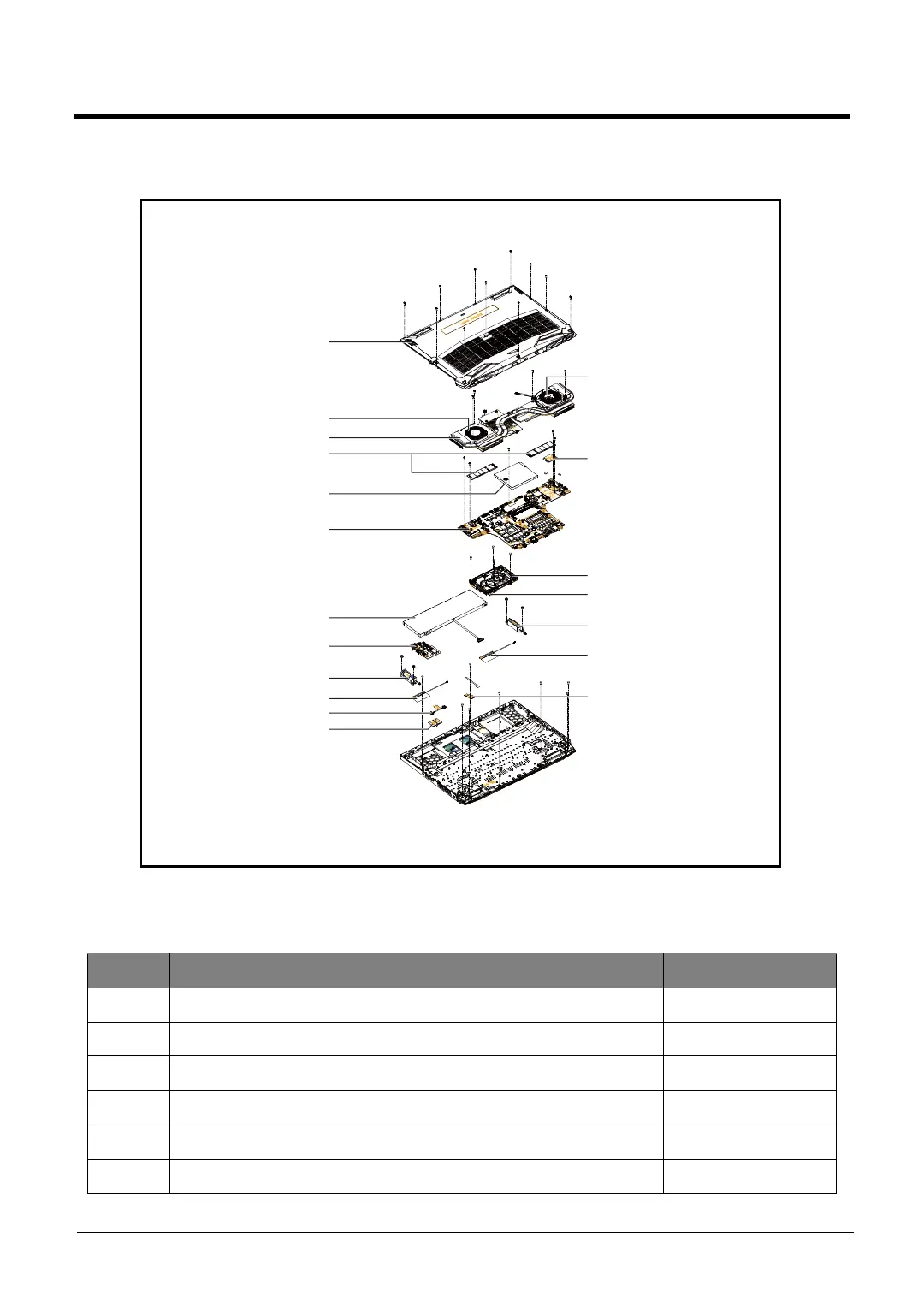

Figure 1-52. Main Assembly Exploded Diagram
Table 1-12. Main Assembly Exploded Diagram
No. Description P/N
1 LOWER CASE 60.QFJN2.002
2 CPU FAN 23.QFJN2.001
3 VGA FAN 23.QFJN2.002
4 THERMAL MODULE 24.QFJN2.001
5 SSD MODULES KN.2560D.018
6 WLAN MODULE KE.11X0N.021
1
4
8
7
3
11
12
14
17
16
(KN.01K04.004) 5
13
2
15
9 (KH.01K04.017)
6
10
19
18
