Acer Nitro 5 - Page 43

Exploded Diagrams 1-41
Upper Case Assembly

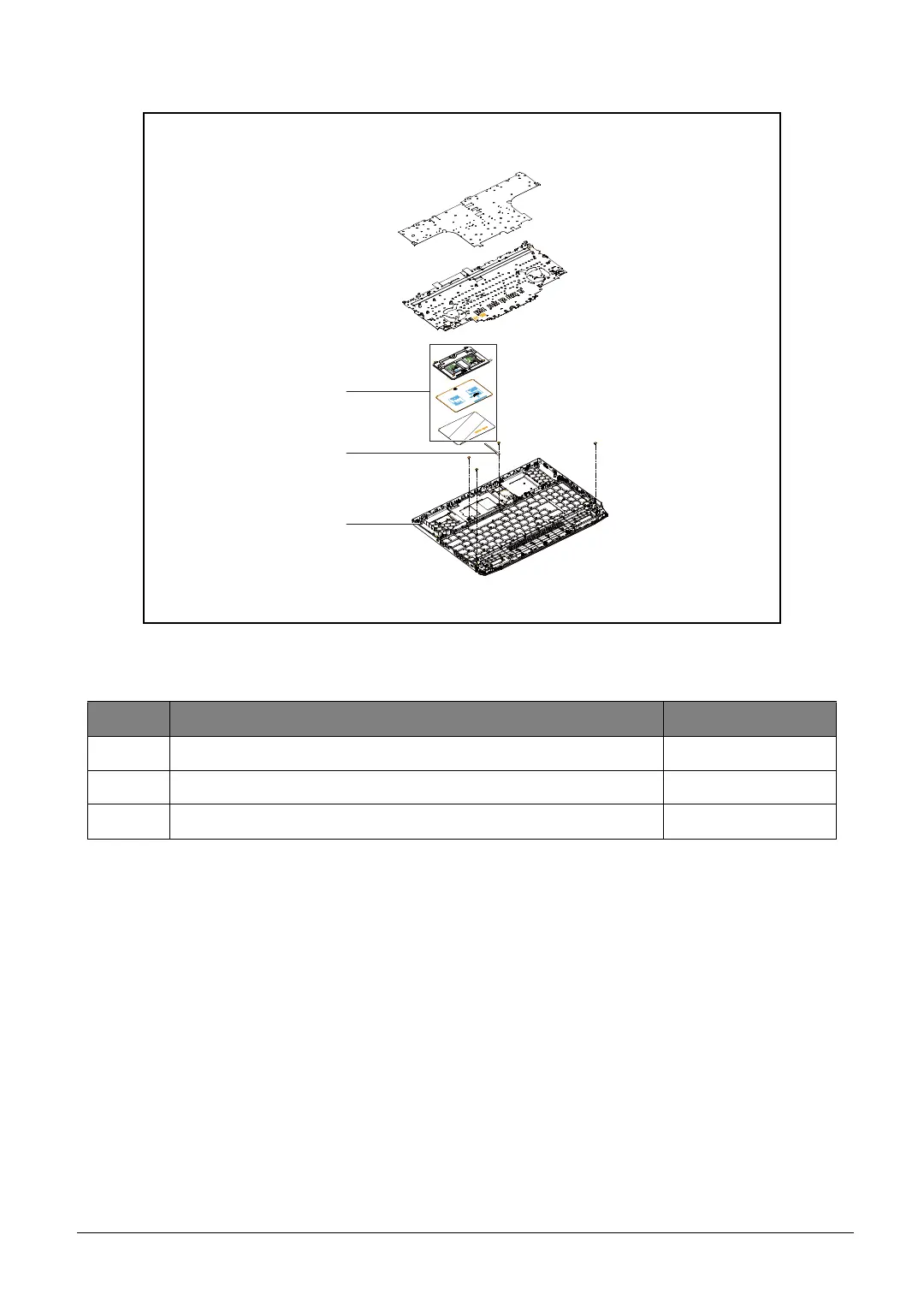

Figure 1-53. Upper Case Assembly Exploded Diagram
Table 1-13. Upper Case Assembly Exploded Diagram
No. Description P/N
1 TOUCHPAD 56.QFJN2.001
2 CONDUCTIVE TAPE 47.QFJN2.002
3 UPPER CASE 6B.QFJN2.001
3
1
2
