ACME CA-M26 - Features; Technical Specification; Panel Overview

1-
1. Features
- DMX MANAGER is a DMX signal Merger & Splitter. It features 2 DMX
inputs and 6 DMX outputs.
- All inputs and outputs are opto-electronically isolated to protect the DMX
consoler or protect other output fixtures if one of the outputs goes faulty.
- 3 input modes:
1. HTP mode:
2. Blackout mode:
3. Merge mode:
- 3 output mode if there is no DMX signal
1. NULL
2. HOLD
3. ALR
- 3 pin and 5 pin XLR in/outputs
- Blue display for easy navigation
2. Technical Specification
- Power supply: 120V-60Hz/230V-50Hz

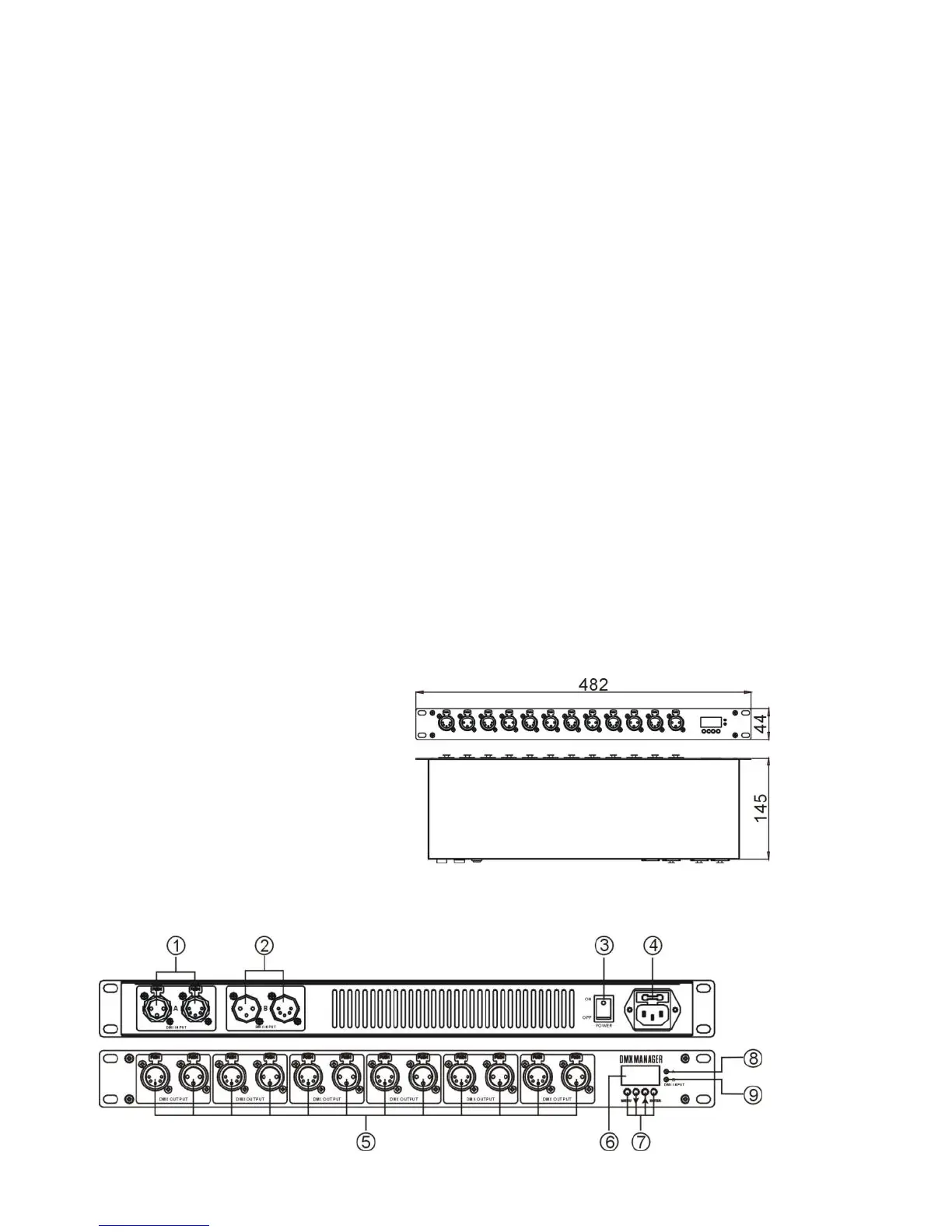

- Size: 482 x 44 x 145 mm
- Weight: 3.0kgs
3. Panel
