III) Pin assignment:

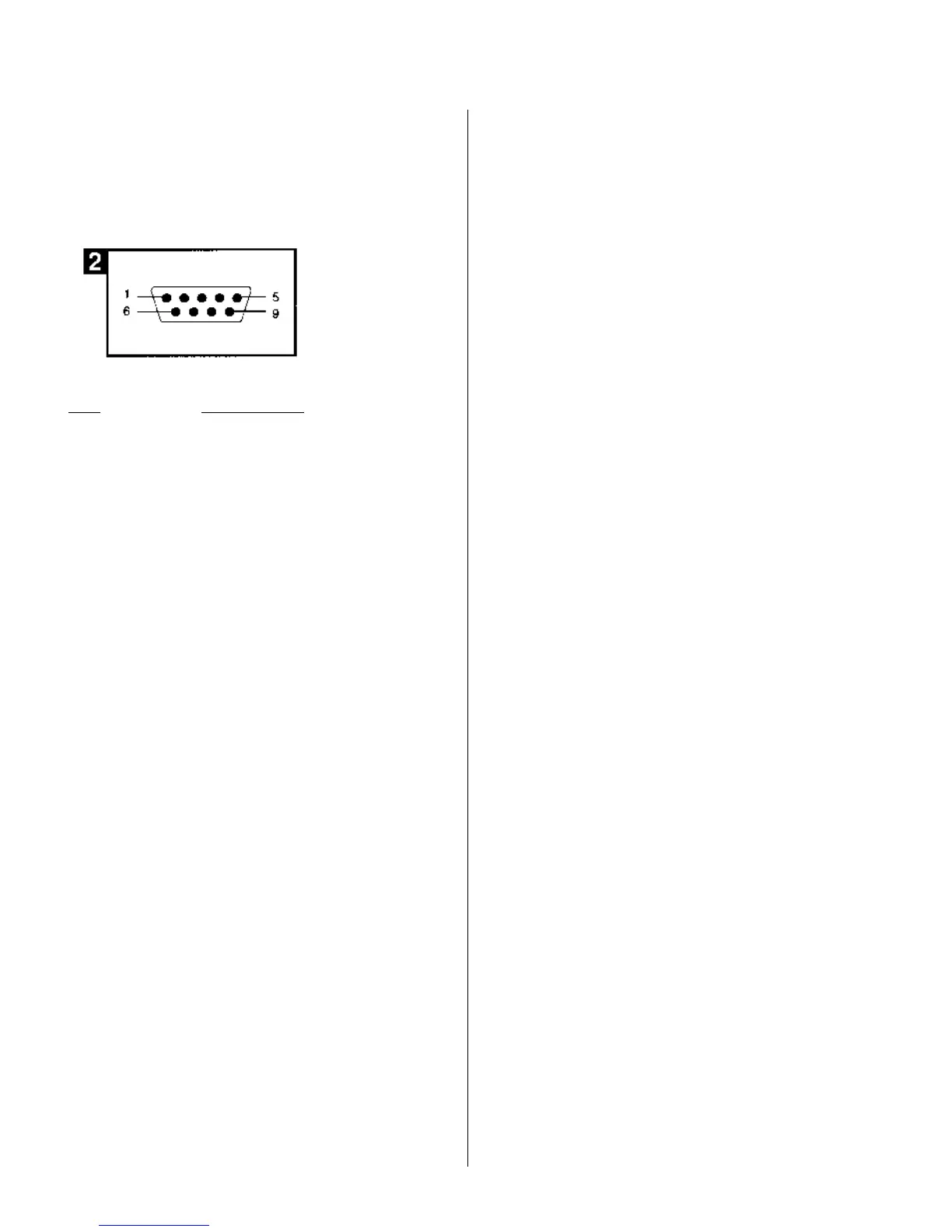

The functions of the 9-pin D-shell connector
are as the following:
Pin no. Assignment
1 Blue
2 Green
3 Red
4 Ground
5 Ground
6
7
8 Composite Sync.
9 –*
In support of our policy of continuous product
improvement, the above specifications are
subject to change without notice.
