Section
3:
User
lnformation
3020-0034

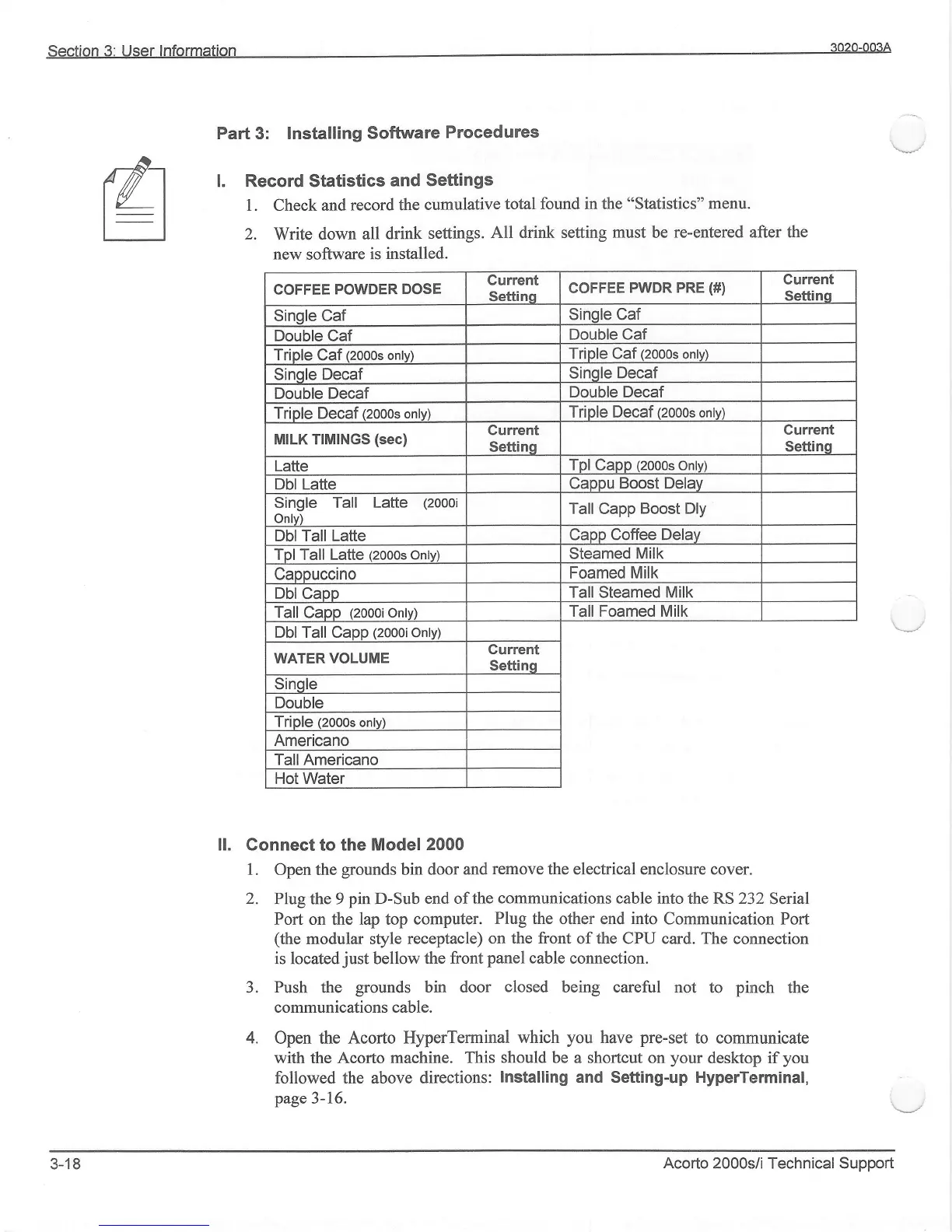

Part 3: lnstalling
Software
Procedures
L Record Statistics
and Settings
1. Check and
record the
cumulative
total found in the
"Statistics" menu.
2.
Write down
all
drink
settings.
All
drink setting must be
re-entered after the
new
software
is
installed.
ll. Connect
to
the Model
2000
1. Open the
grounds
bin door
and remove the electrical enclosure
cover.
2.
Plug the 9
pin
D-Sub
end of the
communications
cable into ttre RS 232
Serial
Port on the lap top computer.
Plug the
other end
into
Communication Port
(the
modular style
receptacle)
on the front
of the CPU card. The cornnection
is located
just
bellow
the front
panel
cable connection.
3. Push the
grounds bin door
closed
being careful
not to
pirnch
the
communications cable.
4.
Open the
Acorto HyperTerminal
which
you
have
pre-set
to comrnunicate
with the Acorto machine.
This
should
be a shortcut
on
your
desktop if
you
followed the above directions:
Installing
and Setting-up HyperTrerminal,
page
3-16.
rLl
t-l
COFFEE
POWDER
DOSE
Gurrent
Settinq
coFFEE
PWDR PRE
(#)
Current
Settino
Sinole Caf
Sinqle Caf
Double Caf
Double Caf
Triple Caf
(2ooos
only)
Triple Caf
(2ooos
onty)
Sinqle
Decaf
Sinqle
Decaf
Double Decaf
Double Decaf
Triple Decaf
(2ooos
only)
Triple Decaf
(2ooos
onty)
MILK TIMINGS
(sec)
Current
Settino
Current
Settinq
Latte
Tpl Capp
(2ooos
ontv)
Dbl Latte
Caoou Boost Delav
Single Tall
Latte
(2oooi
Onlv)
Tall Capp
Boost
Dly
DblTall Latte
Capp Coffee Delav
Tpl Tall Latte
(zooos
ontv)
Steamed
Milk
Capouccino
Foamed
Milk
Dbl Caoo
TallSteamed Milk
Tall Capp
(2oooionty)
Tall Foamed Milk
Dbl Tall Capp
(zoooionty)
WATER VOLUME
Current
Settino
Sinqle
Double
Triole
(zooos
onlv)
Americano
TallAmericano
Hot Water
3-18
