Solid
State
Relays
ControlVoltage:
24VDC
Four Solid
State
Relays
control
voltage
going
to
the
Water
Tank Heating
F)lements
and Steam
Tank
Heating
Elements.
A fuse block
containing
four
20
Amp
Ceramic
Fuses
protects
the
machine
in the
event
the
heating
elements
short.
Additionally,
Solid
State
Relays
located
in the
AC
<lrawer
control
AC
Voltage.
(Some
machines
will
have
Mercury
Contactors
instead
of Relays
in the AC
Drawer.
Both
work lunctionally
lhe
same.)

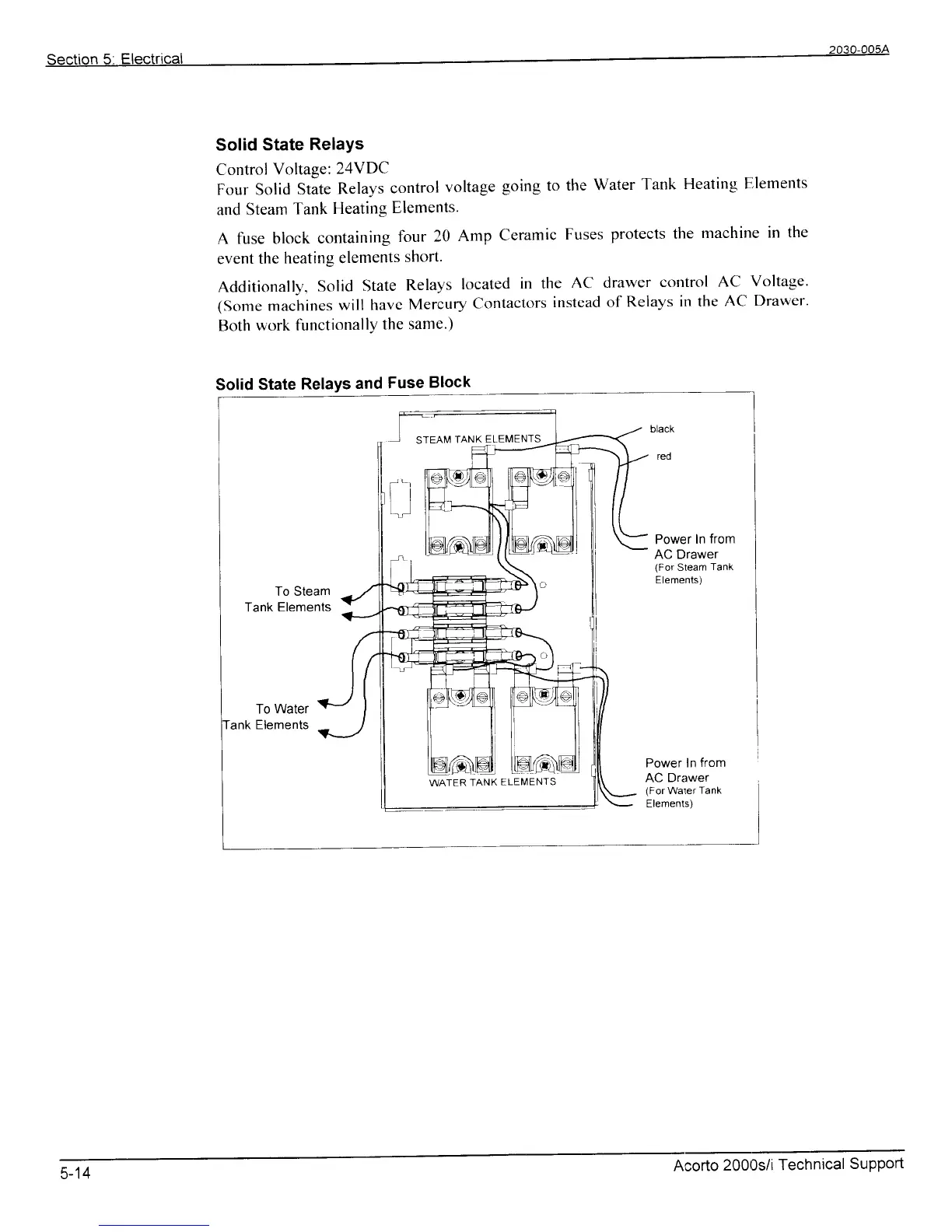

Solid State
Relays
and
Fuse
Block
Power
In
from
AC Drawer
(For
Steam
Tank
Elements)
To Steam
Tank
Elements
To
Water
ank
Elements
Power In
from
AC Drawer
(For
Waler
Tank
Elements)
WATER
TANK
ELEMENTS
5-14
