Acrolon TankNET TC-1 User Manual

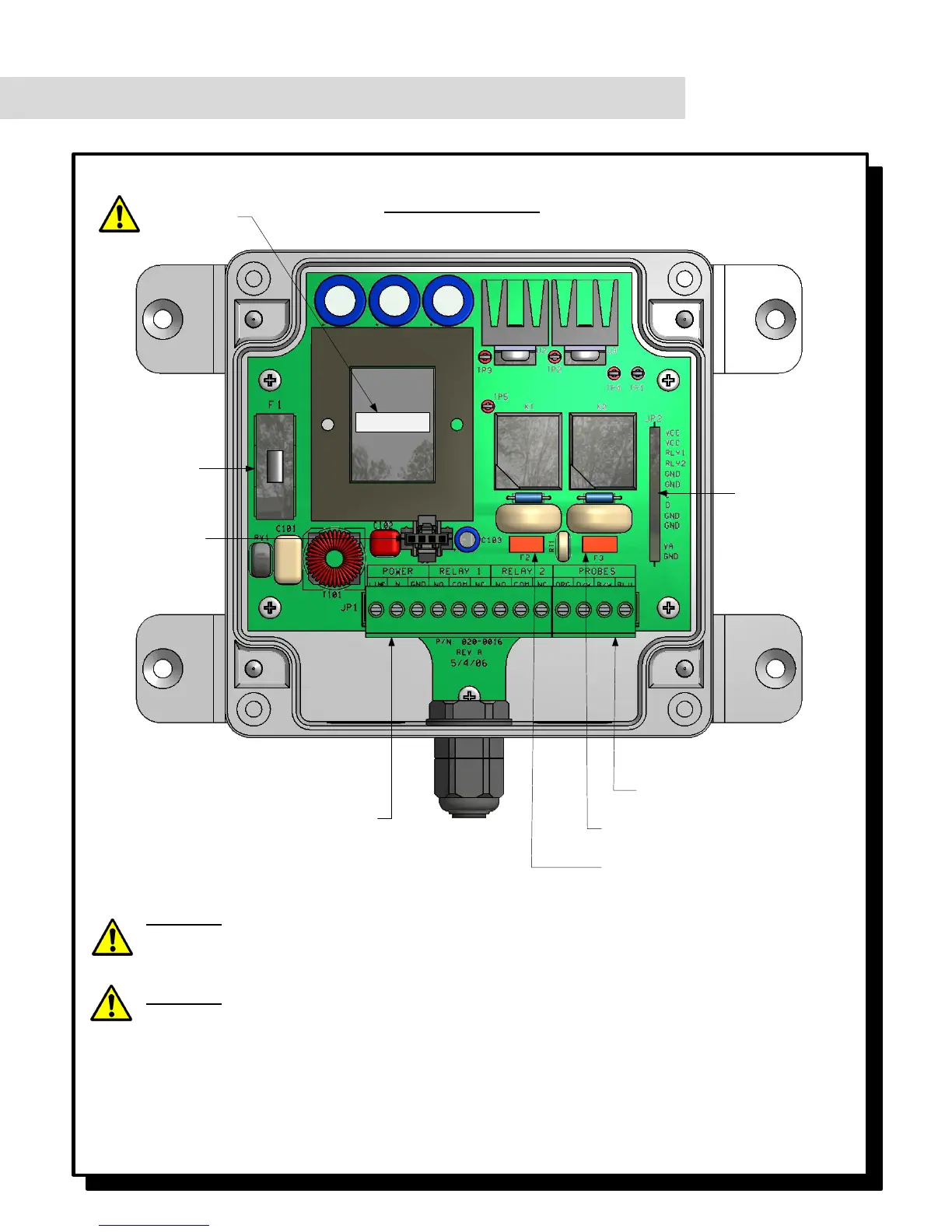

TC-1 Fuses and Internal Connections
CAUTION: For continued protection against risk of fire, replace only with same
type and rating of fuse.
F1:
Main Input Fuse
F2:
Relay 1 Fuse
F3:
Relay 2 Fuse
Display Cable
Communications
Cable
Power and Relay Connections
Removable Plug
4-Wire Temperature Probe
Removable Plug
115VAC
Input Voltage
Specification
CAUTION:
For continued protection against risk of fire, replace only with same type and rating fuse:
F1 : Little fuse, 218P Series, 6.3A/250V time delay, 5 x 20 mm
F2, F3: Wickmann, TE5 Series, 5.0A Time Delay, short pin
CAUTION:
Installer must ensure that only proper input voltage is connected to TC-1 per the specification
labeling (shown above). Failure to do so may void warranty.
TC-1 Power Supply
TC-1 for Power Line Networking Quick Start Installation Guide
Acrolon Technologies, Inc.
