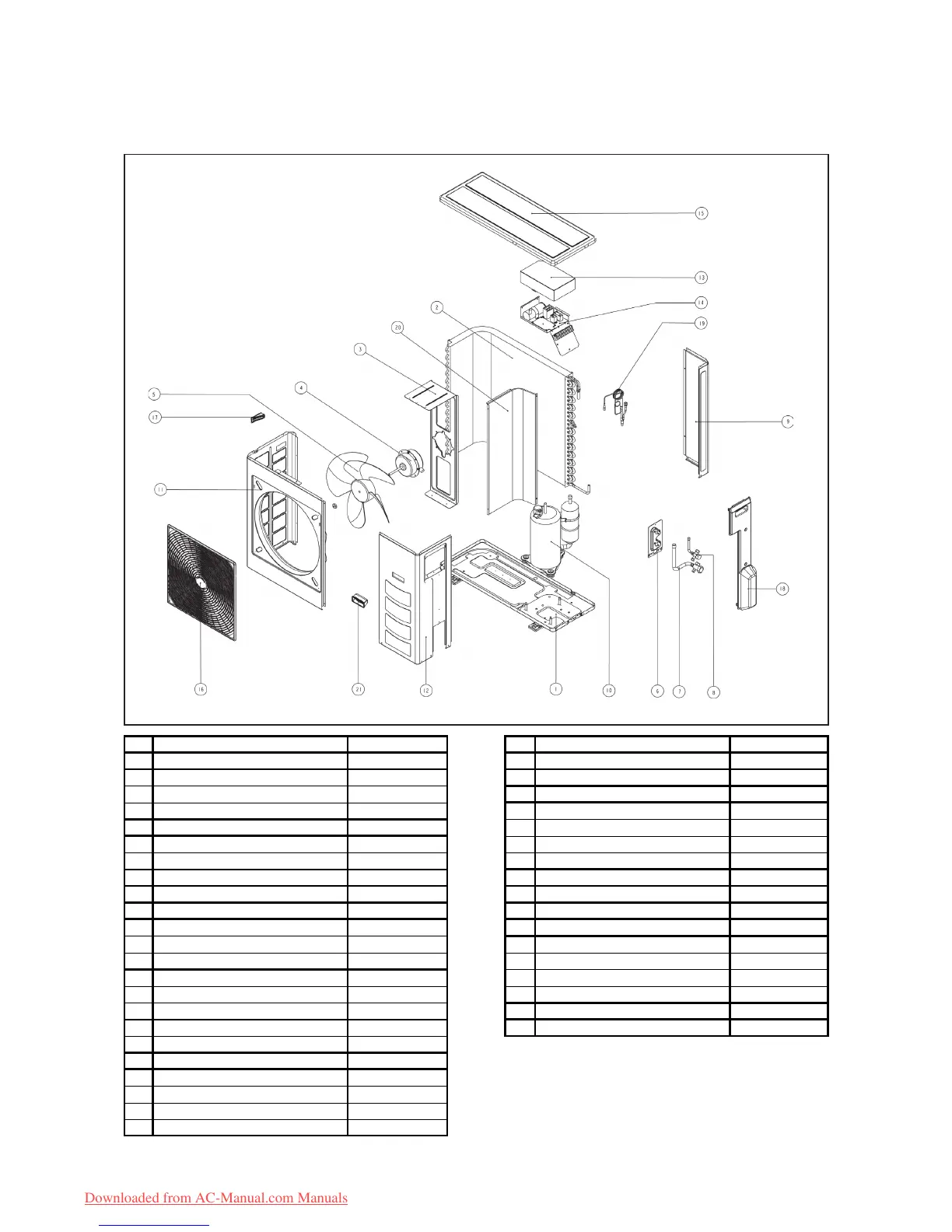

MODEL: A5LC 25 / 28C
No Descriptions Part No No Descriptions Part No
1 Assy. Base Pan R50014073884 11 Front Panel, Left R01014070947
2 Assy. Outdoor Coil 12 Service Panel R01014070949
ALC 25C/28C R50024070959 13 Terminal Cover Panel R01014070838
A5LC 25C/28C R50024079238 14 Assy. Control Panel
3 Motor Bracket R01014070948 A5LC/ALC 25C R50044073902
4 Fan Motor ALC 28C R50044080172
A5LC/ALC 25C R03039023391 A5LC 28C R50044080648
A5LC/ALC 28C R03039024538 15 Top Panel R01014070596
5 Fan Blade R03019023393 16 Assy. Front Grille R50124072880
6 Valve Bracket R50014073890 17 Plastic Handle, Side R12014057948
7 Assy. Flare Valve 3 Ways 5/8" 18 Assy. Valve Cover R50124073905
ALC 25C/28C R50054072863 19 Assy. Cap Tube
A5LC 25C/28C R50059023336 ALC 25C R50024073895
8 Assy. Flare Valve 2 Ways 3/8" A5LC 25C R50024078311
ALC 25C/28C R50059022577 A5LC 28C R50024079593
A5LC 25C R50059023334 20 Partition R01014070951
Assy. Flare Valve 3 Ways 3/8" 21 Plastic Handle, Front R12014070955
A5LC 28C R50059024820
9 Back Panel, Right R01014070950
10 Compressor
ALC 25C R04019019032
ALC 28C R04019012828
A5LC 25C/28C R04019020449
