145

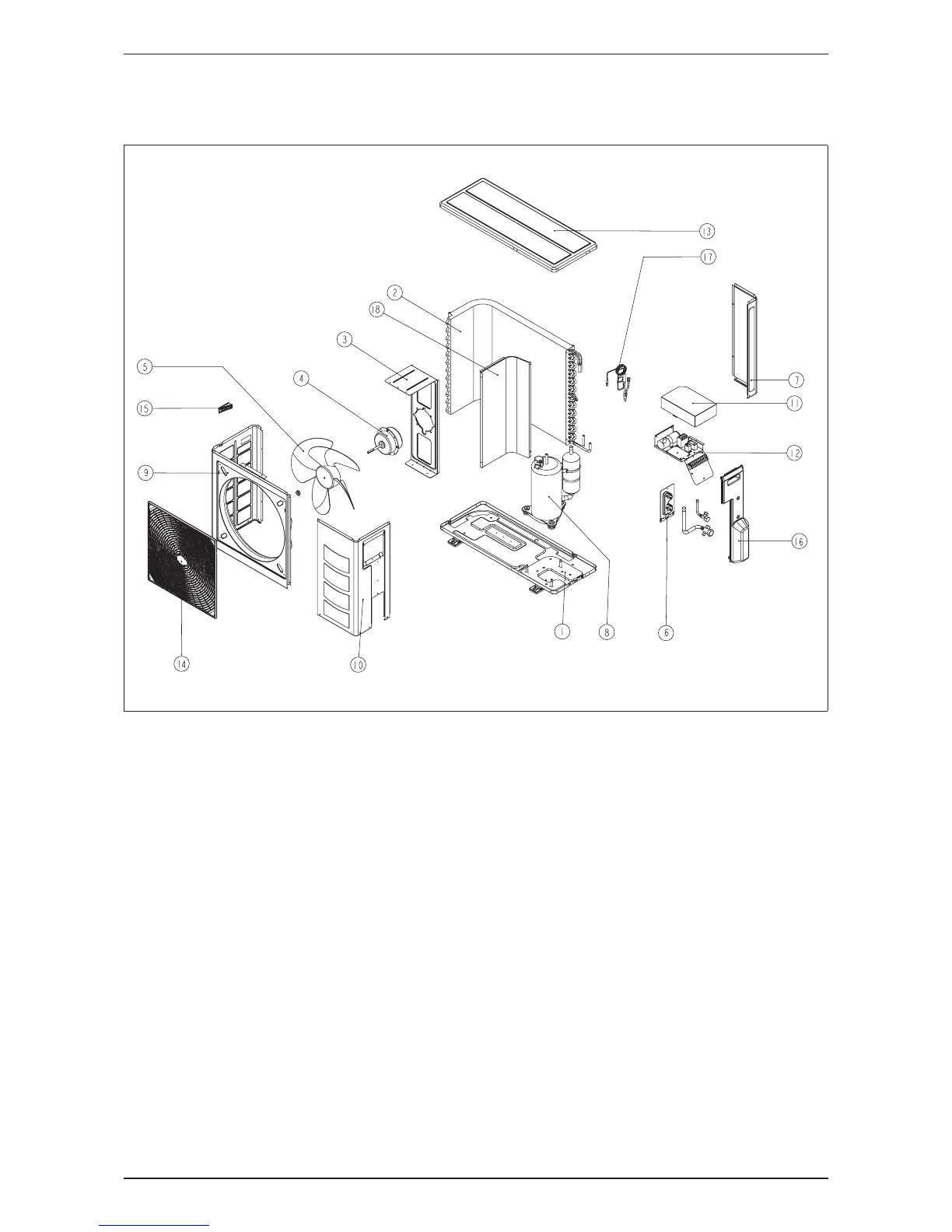

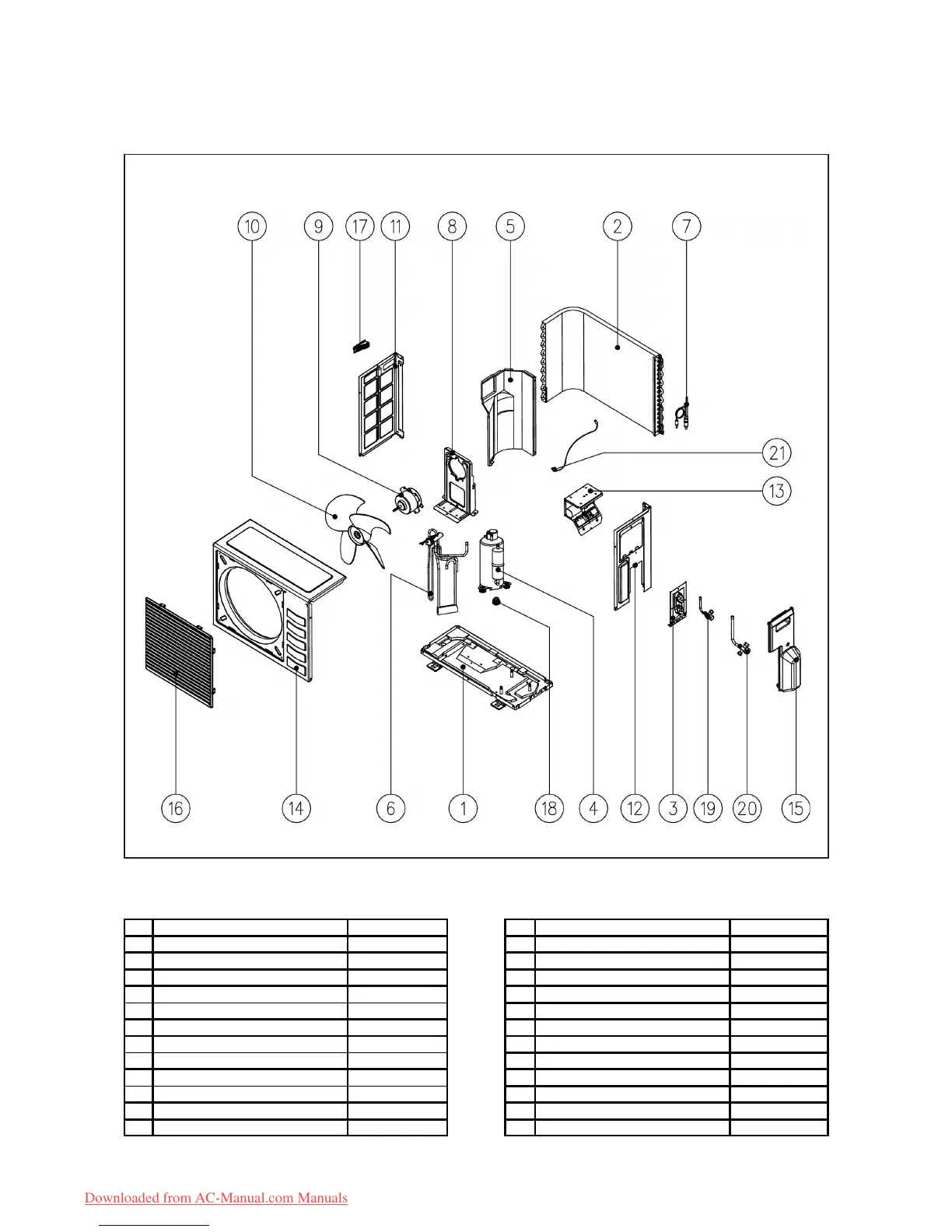

Model: ALC 09CR
No Descriptions Part No No Descriptions Part No
1 Assy., Base Pan R50014057372 10 Fan Blade R03019004131
2 Assy., Condenser Coil R50024064204 11 Left Panel R01014052510
3 Valve Bracket R01014051164 12 Right Panel R01014052509
4 Compressor 13 Assy. Control Panel R50044059032
ALC 09CR R50049016211 14 Assy., Front Panel R01014052512
5 Assy., Partition R50064065275 15 Assy., Valve Cover R50124055172
6 Assy., 4 Way Vlave 16 Assy., Front Grille R50124056905
ALC 09CR R50024065011 17 Plastic, Handle R12014057948
7 Assy., Cap Tube 18 Rubber Grommet R11059016218
ALC 09CR R50024065046 19 Assy., Flare Valve 2 Ways 1/4" R50054054950
8 Bracket, Fan Motor R01014052516 20 Assy., Flare Valve 3 Ways 3/8" R50054054951
9 Fan Motor R03039015324 21 Sensor, Outdoor Defrost R50134039416
