Acson AWM Series User Manual

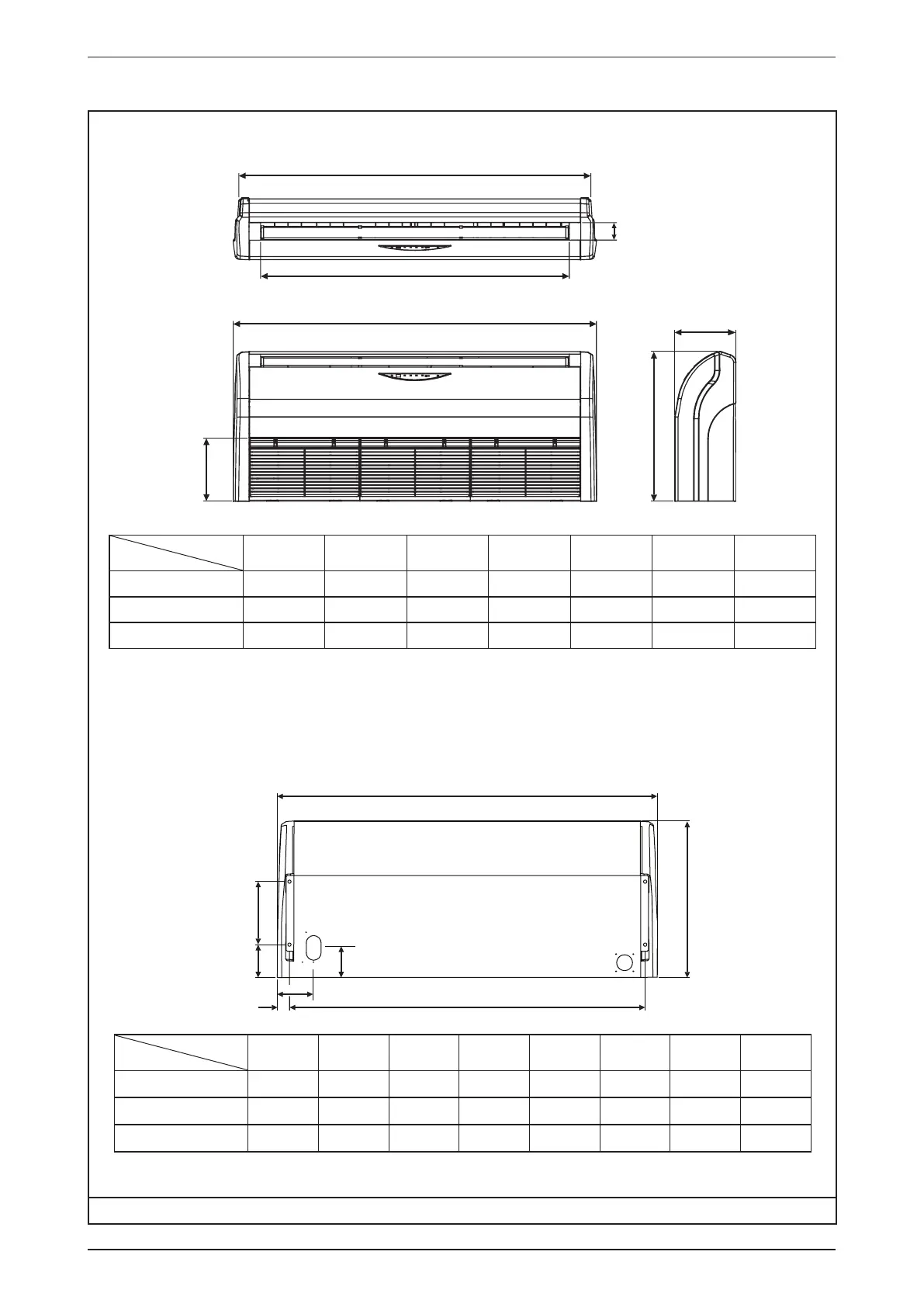

Outlines & Dimensions
122
Model: ACM30/40/50EW
A
B
E
C
D
F
G
Dimension
Model
A B C D E F G
30 1272 1088 74 1320 268 635 259
40 1490 1308 74 1538 268 635 259
50 1738 1556 74 1786 268 635 259
Mounting Bracket
A
E
B
CD
F
G
H
Dimension
Model
A B C D E F G H
30 1320 635 255 134 1222 49 148 120
40 1538 635 255 134 1440 49 148 120
50 1786 635 255 134 1688 49 148 120
Note: Dimension in mm
