Acson SB75BW Installation Manual

1-3
English
CEILING
FREE
RETURN
THREADED
ROD
ISOLATOR
SPRING
FLEXIBLE
CONNECTION
SUPPLY AIR
G.I SHEET
FIBREGLASS
ALUMINIUM FACED
DUCT
SUPPORT
ELECTRICAL
CONDUIT
FALSE
CEILING
CONDENSATE
DRAINAGE
FLEXIBLE
PORTION
INSULATION
(THROUGH-
OUT C/W PIPING)
CHILLED WATER
SUPPLY
CHILLED WATER
RETURN
PLUG
BRACKET
ISOLATOR
CEILING
FREE
RETURN
THREADED
ROD
ISOLATOR
SPRING
FLEXIBLE
CONNECTION
SUPPLY AIR
G.I SHEET
FIBREGLASS
ALUMINIUM FACED
DUCT
SUPPORT
ELECTRICAL
CONDUIT
FALSE
CEILING
CONDENSATE
DRAINAGE
FLEXIBLE
PORTION
INSULATION
(THROUGH-
OUT C/W PIPING)
CHILLED WATER
SUPPLY
CHILLED WATER
RETURN
PLUG
BRACKET
ISOLATOR

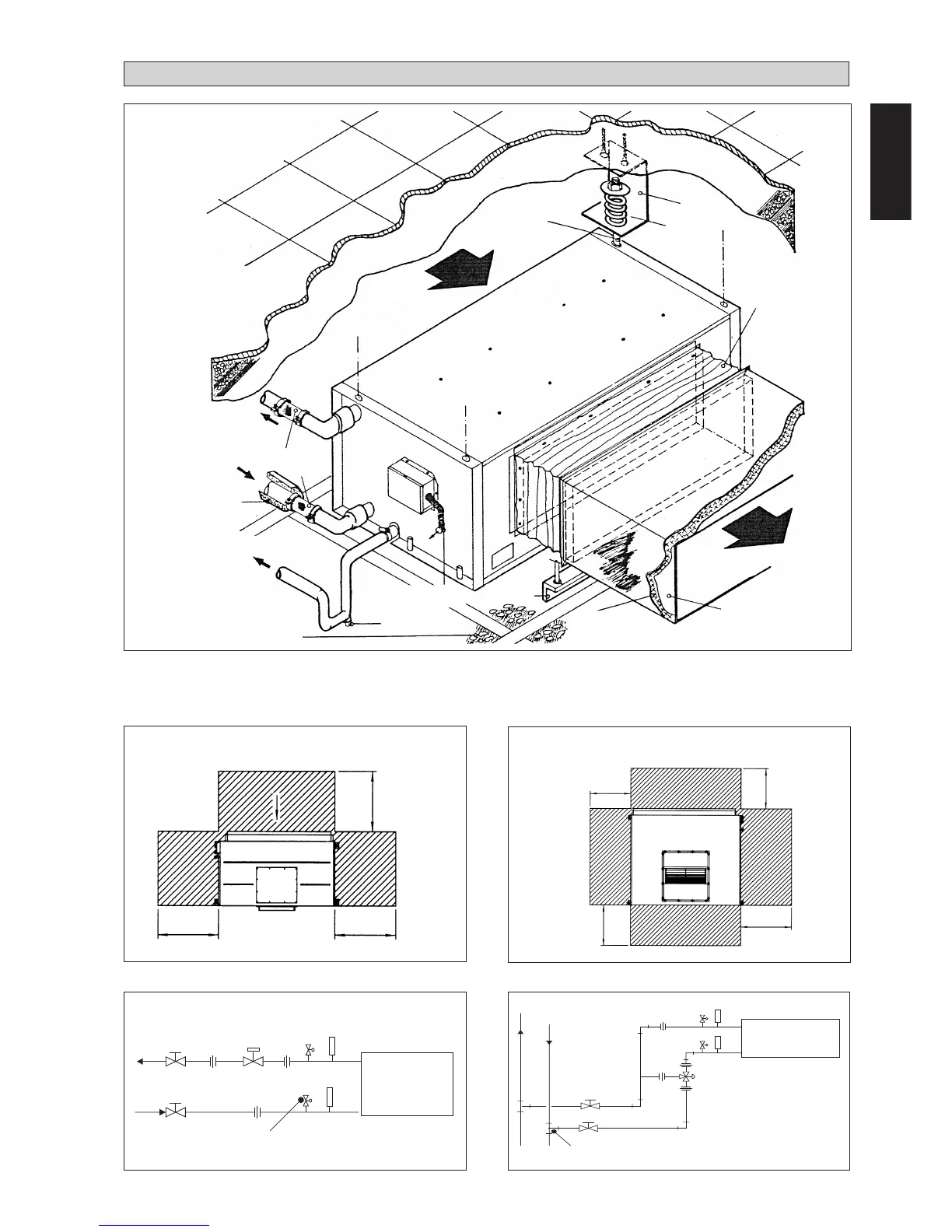

INSTALLATION OF FAN COIL UNIT
Provide clearance for servicing and optimal airflow as shown in the diagram.
The indoor unit must be installed such that there is no short circuit of cool discharge with air discharge.
Respect the installation clearance.
SB125BW / 150BW (Horizontal)
Horizontal installation Vertical installation
T
T
RETURN
SUPPLY
GAUGE COCK
FAN COIL UNIT
T
T
SUPPLY RISER
RETURN RISER
TEE JOINT
3-WAY MIXING VALVE
FAN COIL UNIT
800.0
800.0
1000.0
800.0
800.0 800.0
800.0
SB125BW / 150BW (Vertical)
