Application Information

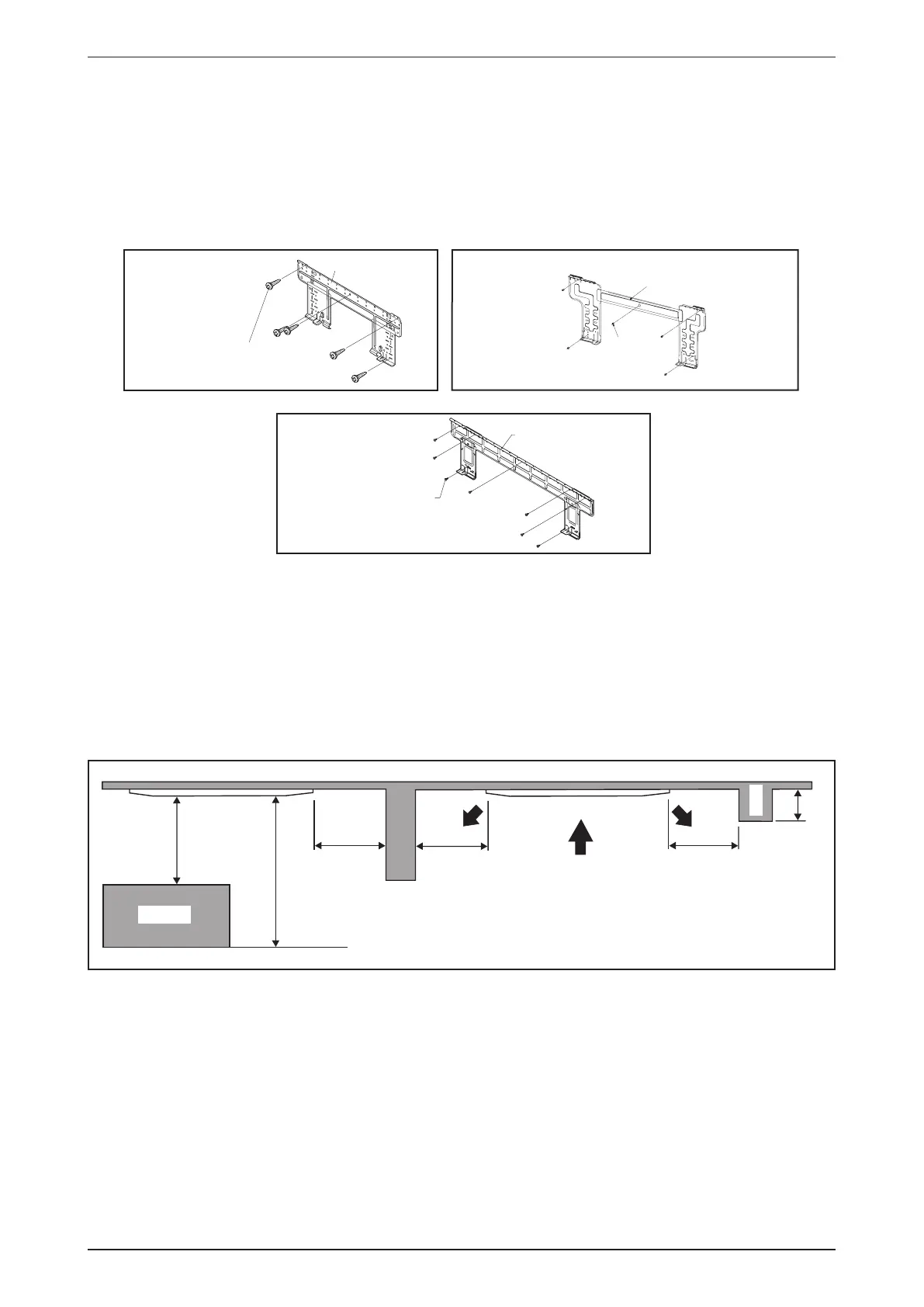

Mounting Installation Plate
Ensure that the wall is strong enough to withstand the weight of the unit. Otherwise, it is necessary to
reinforce the wall with plates, beams or pillars.
Use the level gauge for horizontal mounting, and x it with 5 suitable screws for AWM07/10/15JW and 7
suitable screws for AWM20/25JW.
In case the rear piping draws out, drill a hole 65mm in diameter with a cone drill, slightly lower on the outside
wall (see gure).
Mounting plate
Mounting plate fixing screw
FWW05/06L
Mounting plate
Mounting plate fixing screw
FWW02/03/04L
Mounting plate
Mounting plate
fixing screw
(ALTERNATIVE INSTALLATION PLATE)FWW02/03/04L
Model: ACK/ACM/ACC-C
1. Preliminary Site Survey
Be sure to read this manual before installing the air-conditioner indoor unit.
• Voltage supply uctuation must not exceed +10% of rated voltage. Electricity supply lines must be
independent of welding transformers which can cause high supply uctuation.
• Ensure that the location is convenient for wiring, piping and drainage.
• Do not exert pressure on the resin parts when opening the unit or when moving it after opening.
• Do not move the unit from packaging while moving, until it reaches the installation site. Use safe material
or protection plates when unpacking it or lifting it to avoid damage or scratches to the unit.
erom ro m5.0erom ro m5.0erom ro m5.0
3m or more
1m or more
Floor
Obstacle
Beam
• Ensure a location where:
a) Drainage can be done easily.
b) Convenient for wiring and piping.
c) Which have enough space for installation and service work.
d) Where no risk of ammable gas leakage.
e) When free from any obstacles in path of cool air discharge and warm air return and must allow
spreading of air throughout the room (near the center of the room).
f) Must be provided clearance for indoor unit from the wall and obstacles as shown in gure below.
g) The installation place must be strong enough to support a load 4 times the indoor unit weight to avoid
amplifying noise and vibration.
h) The installation place (hanging ceiling surface) must be assuring levelness and the height in the ceiling
is 350mm or more.
i) The indoor unit must be away from heat and steam sources (avoid installing it near an entrance).
