Selection Process
The following table summarizes the pulley data, motor size used for the FUD series, as manufactured:
Model
Motor
Size
Motor
Speed
Motor
Pulley
Diameter
Blower
Pulley
Diameter
Pulley Center
Distance, C
V-Belt
Length
V-Belt
Length
Horizontal Vertical Horizontal Vertical
kW RPM mm mm mm mm mm mm
ADB125BW 1.5 1405 80 160 340 350 1060 1080
ADB150BW 1.5 1405 80 160 340 350 1060 1080

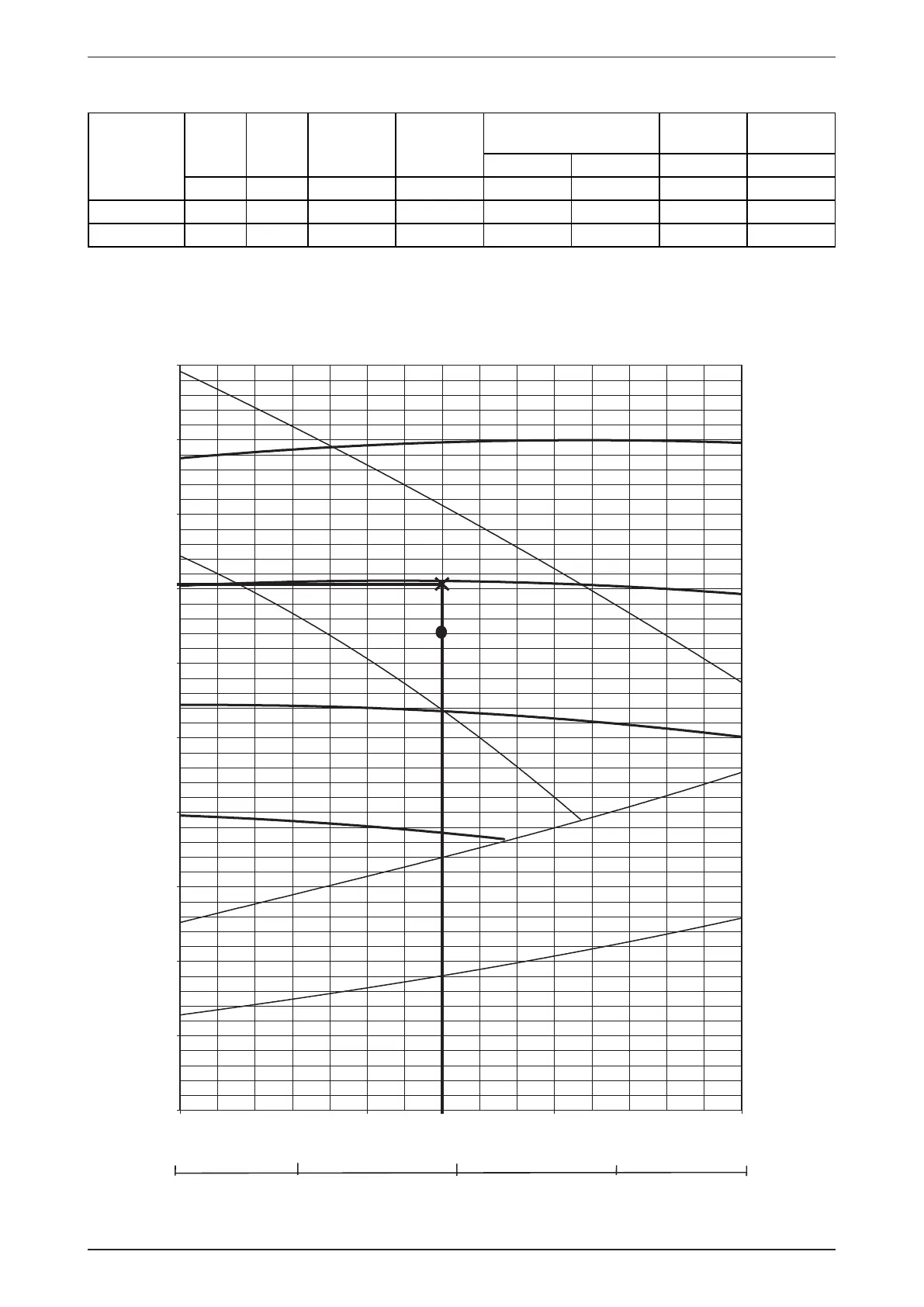

Example 1:
0
50
100
150
200
250
300
350
400
450
500
3500 4000 4500 5000
800
700
Internal Static
Pressure with air filter
Standard
Point
CFM
1.1 kW
L/S
900
1.5 kW
600
Internal Static
Pressure w/o air filter
RPM
1652
1800
2000
2200
2360
Total Static Pressure (Pa)
Air Flow
ADB125BW
