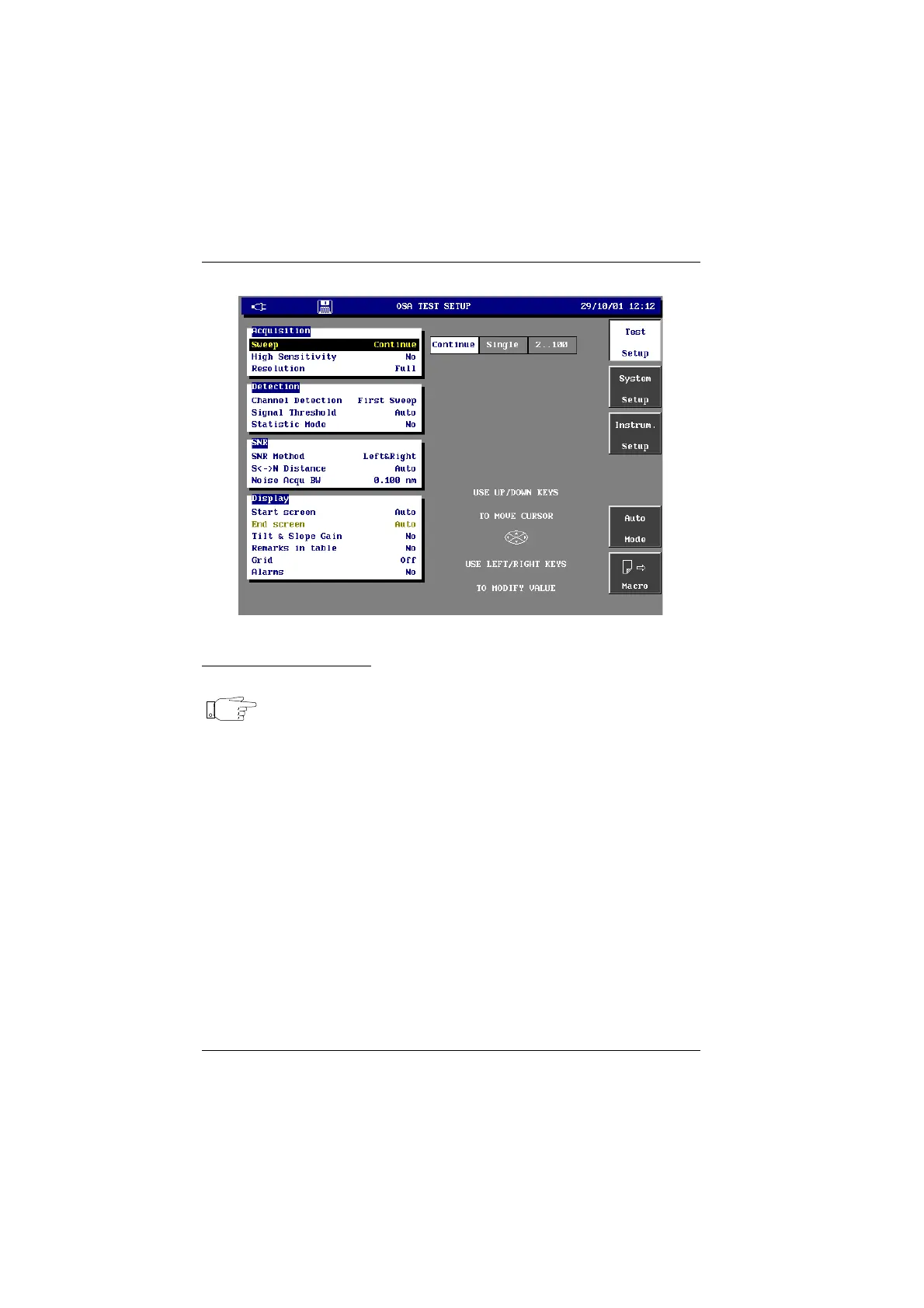

OSA CONFIGURATION TEST
Acquisition parameters
Note When a channel power is higher than10 dBm or when the composite
power of the input signal is higher than20 dBm, a warning is dis-
played and the signal is cut off.
Sweep
Continuous Every two seconds there will be a measurement with a trace
refresh and a real-time display of the results and statistics on these
results.
Single There will only be one measurement and a display of the results.
2. .100 Number of acquisitions required from 2 to 100.
High Sensitivity
No Power scale ranges from +15 to - 65 dBm.
Ye s Power scale ranges from - 25 to - 75 dBm.
Resolution
Full Maximum filter resolution (<0.1 nm).
0.1 / 0.2 / 0.3 / 0.4 or 0.5 nm.
