Acterna MTSe 5000 Series - Remote Control (cont.); Status Structure Registers

9-6
USER MANUAL 750000992/16
Remote control MTS
e
Device event bit enable
* ESE is followed by a number (0 to 255)
Action
: Enabling register modified and ESB bit updated. This
instruction is associated with *ESE?
Clear status registers
- clear standard event register in RS 232
- clear standard event register and device status register in IEEE.
Action
: The device resets the status word register. If this command
is the first in a message, the output queue is reset. If not, the queue
is initialized on reception of the next message.

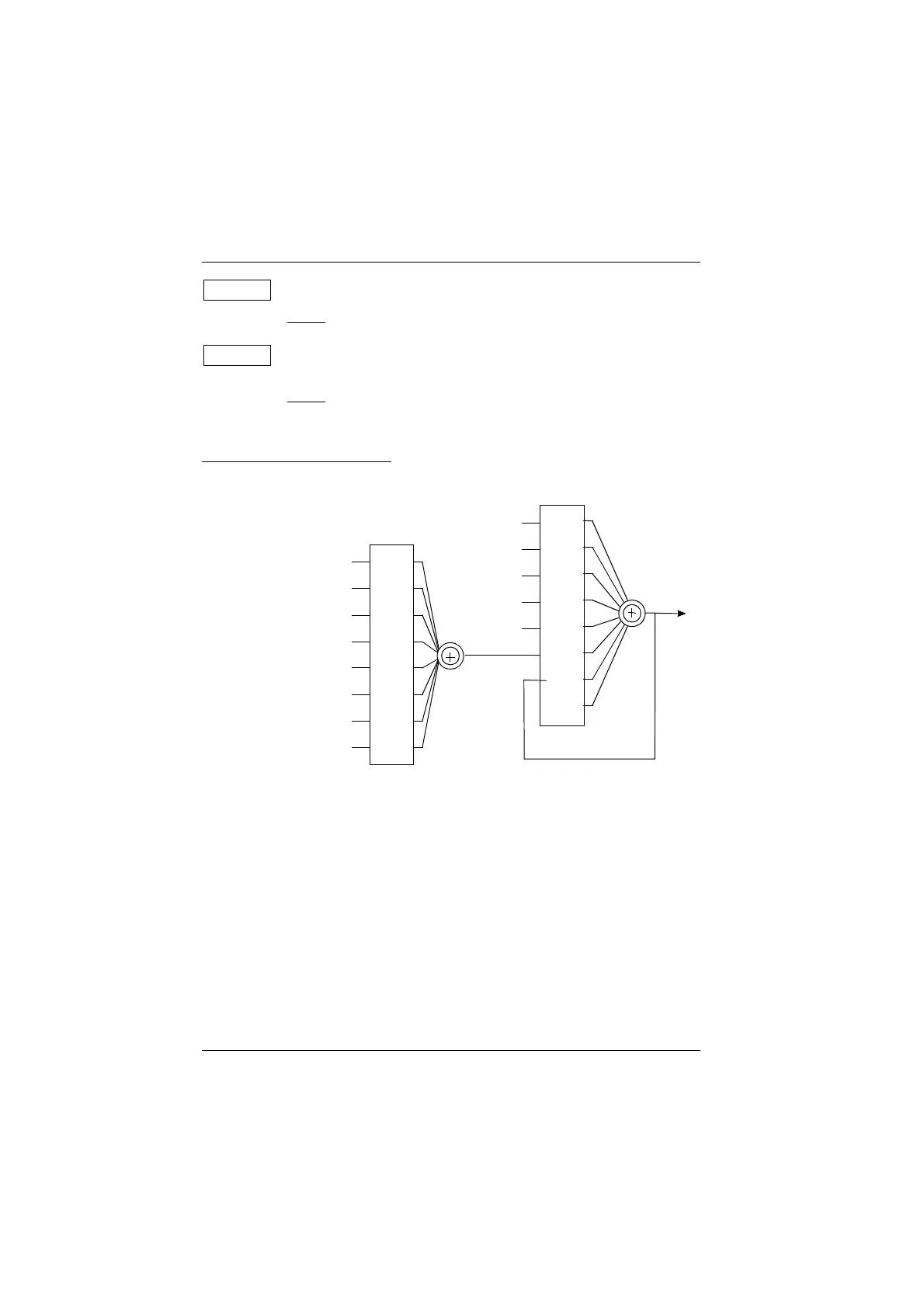

Status structure Registers
• Bit 0 of STB at 1 at the end of the measurement;
at 0 at the next acquisition or
if STATUS:ACQ? is read
• Bit 1 of STB at 1 if a warning is displayed;
at 0 when a message is read by STATUS:ERROR?
• Bit 2 warning: excessive temperature in a module
• Bit 4 of STB Message Available (MAV)
• Bit 6 of STB Master Summary Status (MSS)
*ESE
*CLS
Error
Operation complete
Event Status
Register
Status Byte
ESR?
STB?
SRE
SRE?
ESE
ESE?
SRQ
(IEEE only)
Query error
Request control
Power on
Device dependent error
Execution error
Command error
User request
End acq
MAV
Temperature
warning
MSS
1
2
3
5
4
6
7
0
1
2
3
5
4
6
7
0
