Addition of manual measurements

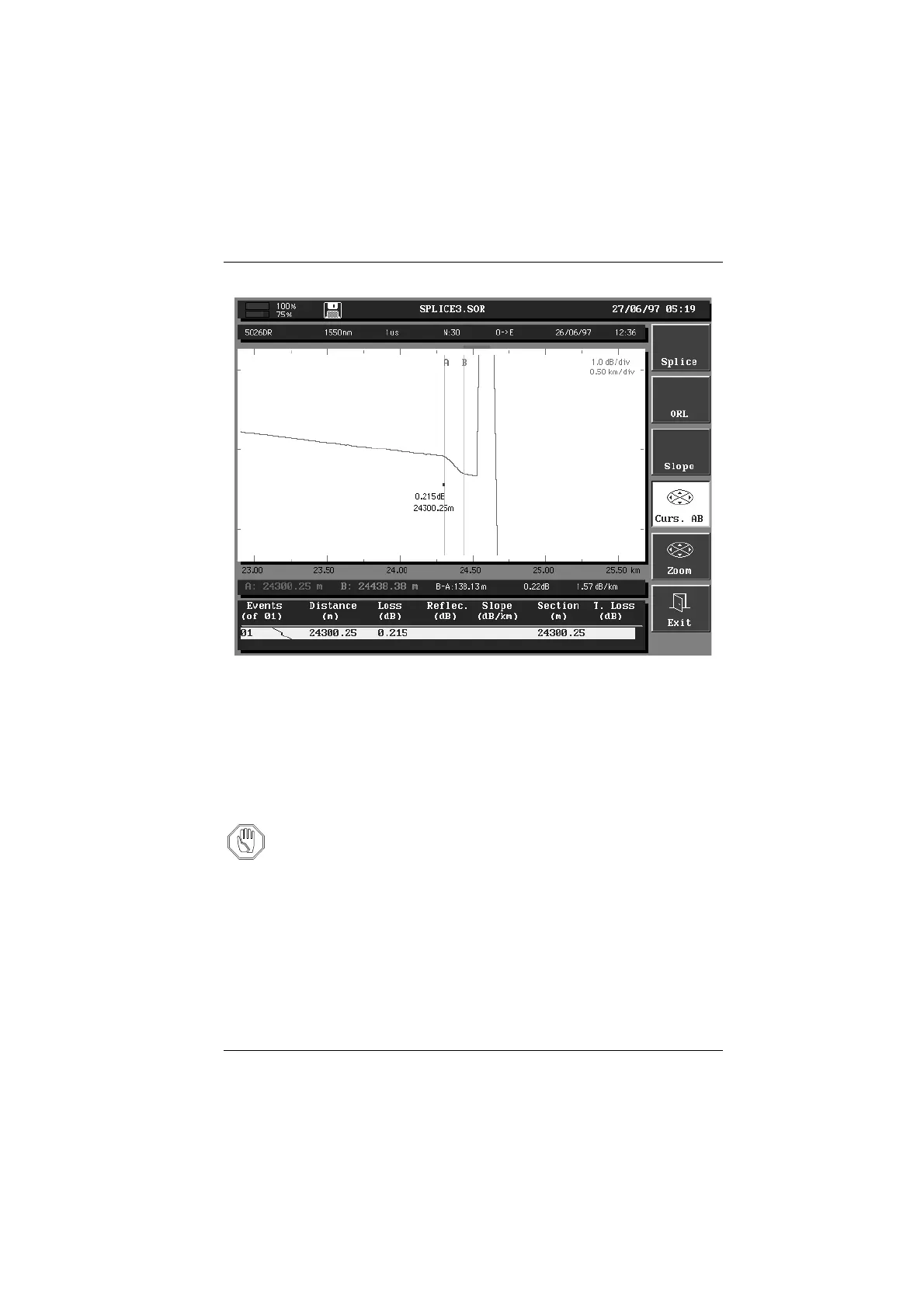

Two cursor splice measurement result
Five cursor method
To make a five cursor splice measurement:
1. Measure the slopes that precede and follow the fault to be measured using
the slope function.
2. Position the cursor at a point between the two slopes (at the location of the
fault).
Attention Select cursor A or B, do not select the cursor A/B or a 2 cursor splice
measurement will be performed.
