ActionTec MyWirelessTV3 User Manual

Step 3D Turn on the TV and switch the source to the HDMI input
that the receiver is connected to.
Step 4A Plug the smaller end of the
power supply into the 5VDC port on the
back of the receiver.
Step 4B Plug the larger end of the
power supply into a power outlet.
Step 4C Verify the LED light of the
receiver is orange. It will start ashing
until it nds the transmitter.
Step 4D Wait for a bit as the
receiver connects to the transmitter.
The LED light should show solid green
once they’re connected.

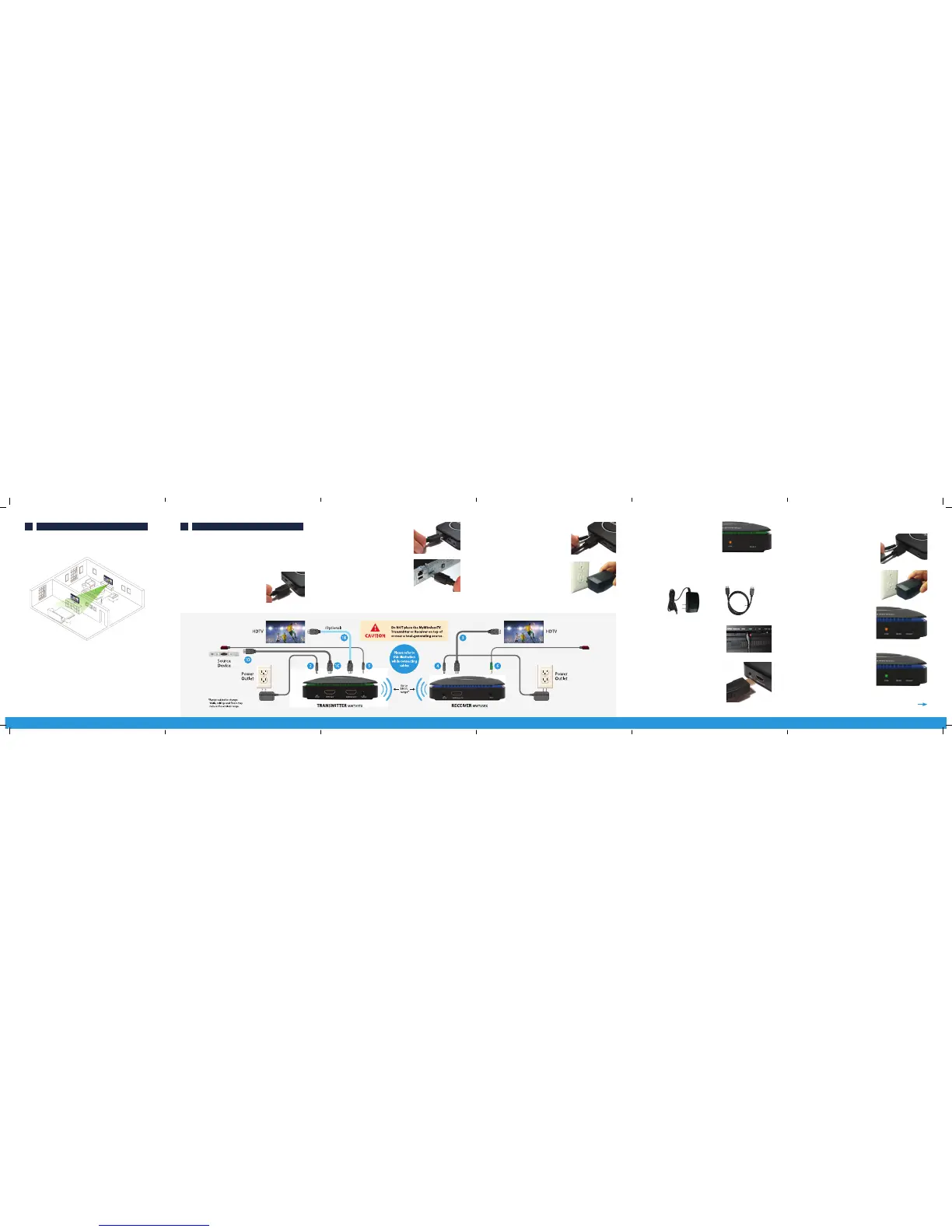

A . How MyWirelessTV Works
MyWirelessTV allows video and audio to be sent from a video source to
a TV wirelessly, which gives you the freedom to place the TV virtually
anywhere within the home and enjoy live TV without the wiring mess.
Identify which source device you want to connect to the transmitter.
Video from that source device will then be transmitted to your receiver
box(es).
Installation for the MyWirelessTV is easy. Both units come pre-paired
to work with each other. All you need to do is connect the cables
according to the diagram or, if you want, follow the detailed step-by-
step instructions.
Note: Only use power adapter Actiontec Electronics Inc. model
number AC08T-501-WB1000.
B . Setting up Transmitter and Receiver
Step 1A Select the source device (i.e. a cable/satellite set-top box or
Blu-ray player) you wish to transmit signal to the TV, and power o that
device. Get the wireless HD video transmitter unit from MyWirelessTV 3
Kit and follow the steps below.
Note: If the transmitter and receiver are in the same room,
you may skip to Step 1C.
Step 1B (Optional) If the source device is
previously connected to an HDTV, unplug the
HDMI cable from the back of the source, then
plug the free end of the HDMI cable into the
HDMI port labeled Out-to-TV on the back of
the transmitter.
Step 1C Otherwise, get an HDMI cable
from the MyWirelessTV 3 Kit. Plug one
end into the HDMI Input port on the back
of the transmitter.
Step 1D Plug the other end of the
HDMI cable into the HDMI port on the
source device.
Step 2A Get the power supply from the
MyWirelessTV 3 Kit. Plug the smaller end
of the power supply into the 5VDC port on
the back of the transmitter.
Step 2B Plug the larger end of the
power supply into a power outlet.
Step 2C Verify the LED light of
the transmitter is orange. It will start
ashing until it nds the receiver.
Step 2D Now power on your video source device.
Step 3A Get the wireless HD video receiver, HDMI cable and
power supply. Go to the TV you want to connect.
Step 3B Plug one end of this HDMI
cable into an HDMI port on the HDTV.
Step 3C Plug the other end of the
HDMI cable into the HDMI port labeled
Out-to-TV on the back of the receiver.
CONTINUE ON OTHER SIDE

ActionTec MyWirelessTV3 Specifications

General

Type	AV transmitter & receiver
Product color	Black
Maximum resolution	- pixels
Security algorithms	128-bit AES, WPS
Cable types supported	HDMI
Video compression formats	H.264
Wi-Fi	Yes
HDMI in	1
Connectivity technology	Wireless
Input current	2 A
AC input voltage	5 V
Power consumption (standby)	5 W

Weight and Dimensions

Depth	120 mm
Width	105 mm
Height	30 mm
Weight	133.24 g
