Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.

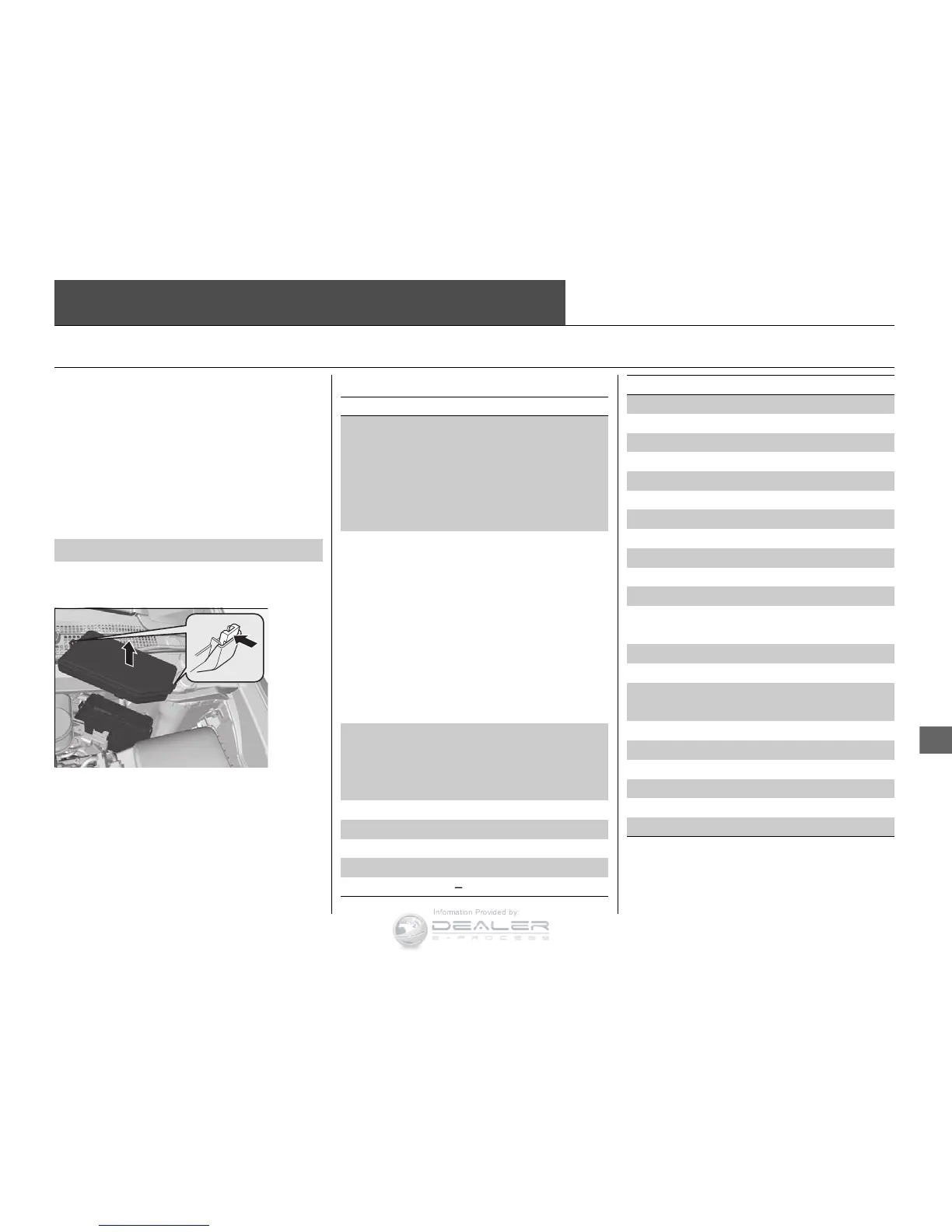

Located near the brake fluid reservoir. Push
the tabs to open the box.
■
Engine Compartment Fuse Box
■ Circuit protected and fuse rating
Circuit Protected Amps
1
EPS 70 A
Power Tailgate Motor
*
(40 A)
ABS/VSA FSR 20 A
ABS/VSA Motor 40 A
E-DPS 30 A
Main Fuse 120 A
2
ST CUT 50 A
Fuse Box Main 1 60 A
Fuse Box Main 2 60 A
IG Main 50 A
Headlight Washer (30 A)
Sub Fan Motor 30 A
Rear Defogger 40 A
Main Fan Motor 30 A
Headlight Main 30 A
Blower 40 A
3
Driver's Power Seat Sliding 20 A
Driver's Power Seat Reclining
20 A
Passenger's Power Seat Sliding
20 A
Passenger's Power Seat Reclining
20 A
4− −
5 STR Diagnosis Fuse 7.5 A
6− −
7 − −
8− −
*1:Models with halogen low beam
headlight bulbs
*2:Models with high voltage discharge tube
bulbs
9 − −
10 − −
11 Oil Level 7.5 A
12 Fog Lights
*
(20 A)
13 Power Tailgate Closer
*
(20 A)
14 Hazard 10 A
15 IGP2 15 A
16 IG Coil 15 A
17 Stop 10 A
18 Horn 10 A
19 ACM 10 A
20 Right Headlight Low Beam
10 A
*1
15 A
*2
21 MG Clutch 7.5 A
22 DBW 15 A
23 Left Headlight Low Beam
10 A
*1
15 A
*2
24 ACC 10 A
25 FI Main (15 A)
26 Trailer (20 A)
27 Small 20 A
28 Interior Lights 7.5 A
29 Back Up 10 A
Circuit Protected Amps
