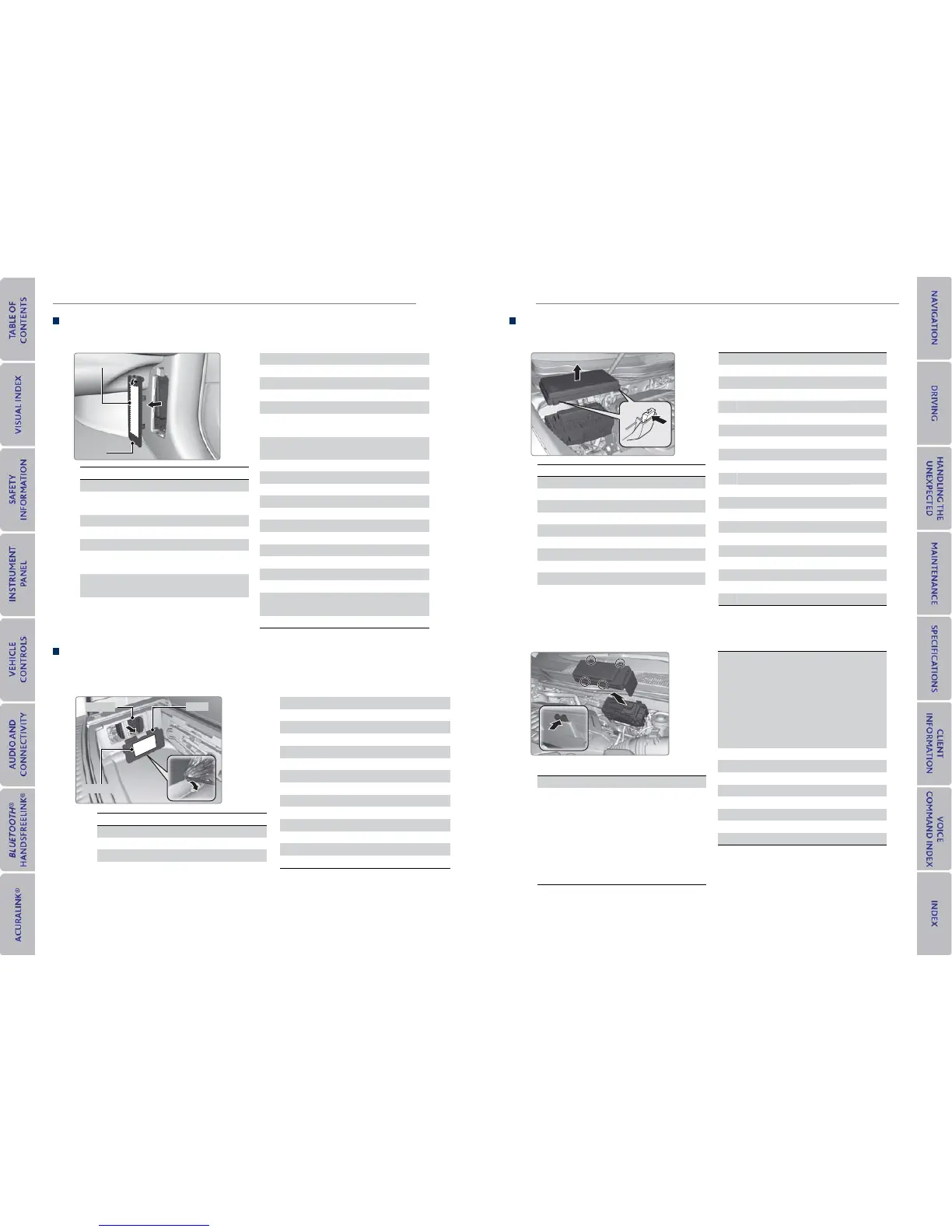

Passenger’s Side Interior Fuse Box
Located on the lower side panel. Remove the cover to access.
Circuit Protected Amps
1
Right e-pretensioner
*
(30A)
2
Rear Passenger’s Side
Power Window
20 A
3 ACM 20 A
4 Front DEF
*
(15A)
5 AVS/Seat Heaters 20 A
6
Front Passenger’s Power
Window
20 A
7
Passenger’s Power Seat
Sliding
20 A
8
Passenger’s Power Seat
Reclining
20 A
9
Passenger’s Lumbar
*
(7.5 A)
10 −
−
11 HSW
*
(10A)
12 −
−
13 −
−
14
Rear Accessory Power
Socket
20 A
15
Front Accessory Power
Socket
20 A
16 − −
17 − −
18 Premium AMP 30 A
19 SRS1 10 A
20 Passenger’s ECU 7.5 A
21 SVTM4
7.5 A
22 − −
23
− −
24 IG1 OPDS 7.5 A
25 Illumination
7.5 A
26 Left e-pretensioner
*
(30A)
27
Center Accessory Power
Socket
20 A
28 AC Inverter (30A)
Rear Fuse Box
Located on the left side of the cargo area. Remove the cover using a cloth-wrapped flat-
tip screwdriver to access.
Circuit Protected Amps
1 Power Tailgate Closer
20 A
2 Trailer Small Light
*
(20 A)
3
−
−
4 Fuel Lid
7.5 A
5 Seat Slide
20 A
6 − −
7 Rear H/Seat
*
(20 A)
8 −
−
9 Trailer Charge
*
(20 A)
10
Trailer Back Light
*
(7.5 A)
11 Trailer Hazard
*
(7.5 A)
12 Rear Wiper
10 A
13
ECU RR
7.5A
14 − −
15
−
−
16 − −
17 Trailer E-Brake
*
(20 A)
18
Power Tailgate Motor 40 A
Fuse label
Cover
Cover
Fuse label
Fuse box
*if equipped
Circuit Protected Amps
1 −
−
2 − −
3
ACG FR
15 A
4IG1 Washer15 A
5
IG1 VBSOL 7.5A
6IG1 ECU FR 7.5A
7 − −
8FI SUB15A
9 DBW
15 A
10 FI Main 15 A
11 IG Coil
15 A
12 DRL
R1
0 A
13
DRL L
10 A
14 IN
J2
0A
15
Radio
20 A
16 Back Up 10 A
17
MG Clutch 7.5A
18 Front Fog
*
(20 A)
19
− −
20 Right Headlight High Beam 7.5A
21
− −
22 Smal
l1
0A
23
− −
24 Left Headlight High Beam7.5 A
25
− −
26 Right Headlight Low Beam 10 A
27 Left Headlight Low Beam
10 A
28 IGPS Oil LVL 7.5A
29 Cooling Fan
30 A
30 Sub Fan 30 A
31 WIP Main 30 A
Located near the battery. Push the tabs to open the box.
Circuit Protected
Amps
1
Main Fuse
150A
2
VSA MTR 40 A
VSA FSR 20 A
Stop/Horn/Hazard 30 A
Rear Blower/BMS 30 A
FI Main 40 A
Rear F/B 260A
AS F/B 260A
EPS 60 A
3
H/L Washer 30 A
IG1B Main 30 A
R/B Main
60 A
DR F/B 1
50 A
AS F/B 1
50 A
Rear F/B 1
60 A
IG1A Main
30 A
DR F/B 2
50 A
4STM
43
0A
5 Front Blower 40 A
6Rear De
f4
0A
7
IG Main 1
40 A
8Stop & Horn 20 A
9 Hazard 15 A
10 BMS 7.5 A
11 − −
Engine Compartment Fuse Boxes
Located near the brake fluid reservoir. Push the tabs to open the box.
*if equipped
