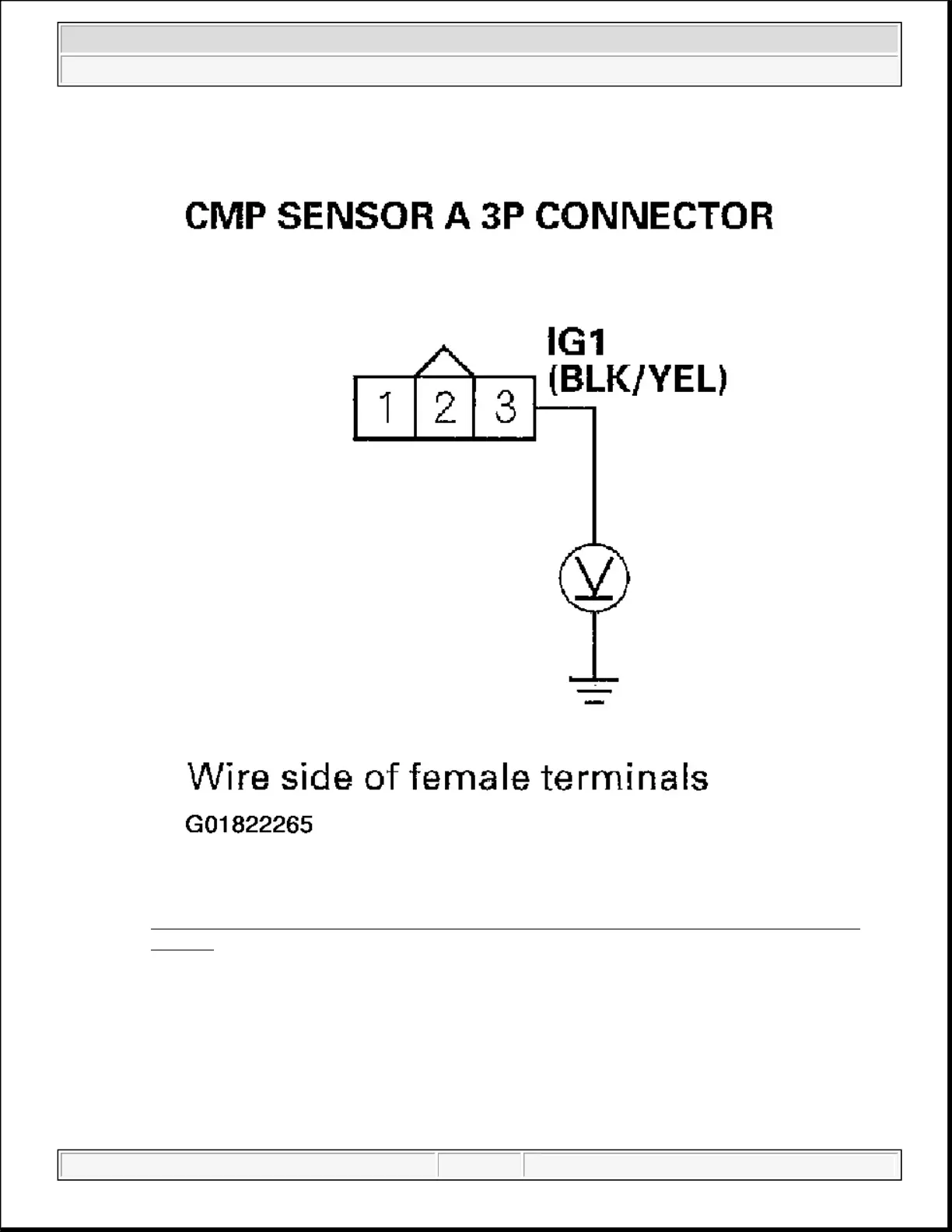

Fig. 8: Measuring Voltage Between CMP Sensor A 3P Connector Terminal No. 3 & Body
Ground
9.
Measure voltage between CMP Sensor A
3P connector terminal No. 1 and body ground.
Is there about 5 V?
YES:
Go to step 10.
NO:
Go to step 11 .
2004 Acura TSX
2004 ENGINE PERFORMANCE VTEC/VTC - TSX
Wednesday, March 12, 2008 2:17:58 AM
Page 12
11
13
Table of Contents
Component Location Unit
1
Troubleshooting
1
DTC P0010: VTC Oil Control Solenoid Valve Malfunction
2
VTC Oil Control Solenoid Valve 2P Connector
3
ECM/PCM Connector B (24P)
5
DTC P0011: VTC System Malfunction
8
Removing the VTC Strainer & Checking It for Clogging
9
DTC P0340: CMP Sensor a no Signal
10
CMP Sensor a 3P Connector
12
ECM/PCM Connector a (31P)
15
DTC P0341: CMP Sensor and CKP Sensor Incorrect Phase Detected
17
DTC P0344: CMP Sensor a Intermittent Interruption
18
DTC P2646: Oil Pressure Switch Circuit Low Voltage
20
DTC P2647: VTEC Oil Pressure Switch Circuit High Voltage
23
VTEC Oil Pressure Switch 2P Connector
25
DTC P2648: VTEC Solenoid Valve Circuit Low Voltage
28
VTEC Solenoid Valve 2P Connector
29
DTC P2649: VTEC Solenoid Valve Circuit High Voltage
31
VTC Oil Control Solenoid Valve Removal/Test/Installation
36
VTEC Solenoid Valve Inspection
41
CMP Sensor Replacement
44
Removal and Installation
44
VTEC Solenoid Valve Removal/Installation
45
Removing VTEC Solenoid Valve
47
Removing VTEC Oil Pressure Switch
47
