such as recorders - computers - iPods, etc..
17- LINE OUT: unbalanced output with JACK POST EQ connector for
external amplification systems where the cable to connect them are not
long.
18- OFF-ON RESONANCE: When pressing the button the led turns on, and
the resonant circuit starts working. This circuit is used to make sure that
when you plug in an acoustic guitar at a high volume the guitar does not go
into resonance.
19- RESONANCE: potentiometer which (once the button is pushed), by
turning moves the NOTCH FILTER from a frequency of 100 Hz to a
frequency of 250Hz. The attenuation of NOTCH FILTER is 12d .B
20- VOL. LINE OUT: 7level control of LINE OUT (1 ) independent from the
MASTER volume ( ).30
21- PHONES: 4volume control for headphone output (1 ). This control is
independent from the MASTER volume ( ).30
22- STEREO OUT: 6control output volume (1 ). This control is independent
from the MASTER volume ( )30
23- 24- HIGH- LOW: t522one control input (1 ), treble ( 3), bass ( 4) with a
variation of + - 15db. Placing the controls in the middle do not give
magnification or attenuation of the corresponding frequencies.
25- STEREO IN: 5Volume control for each channel (1 ) to be sent to the
MASTER volume ( ).30
26- EFF. (LED AND SWITCH): the SWITCH allows you to slide the flashes of
the led 1-8 so that you can hear all the effects and stop at the most suitable
for that type of instrument
27- PH (LED AND SWITCH): The switch allows you to enable or disable the
PH for powering condenser microphones. When the PH is active, the LED
is on.
28- PW: power indicator.
29- EFF. RET.: Volume that controls the amount of the DSP to send to
MASTER ( ).30

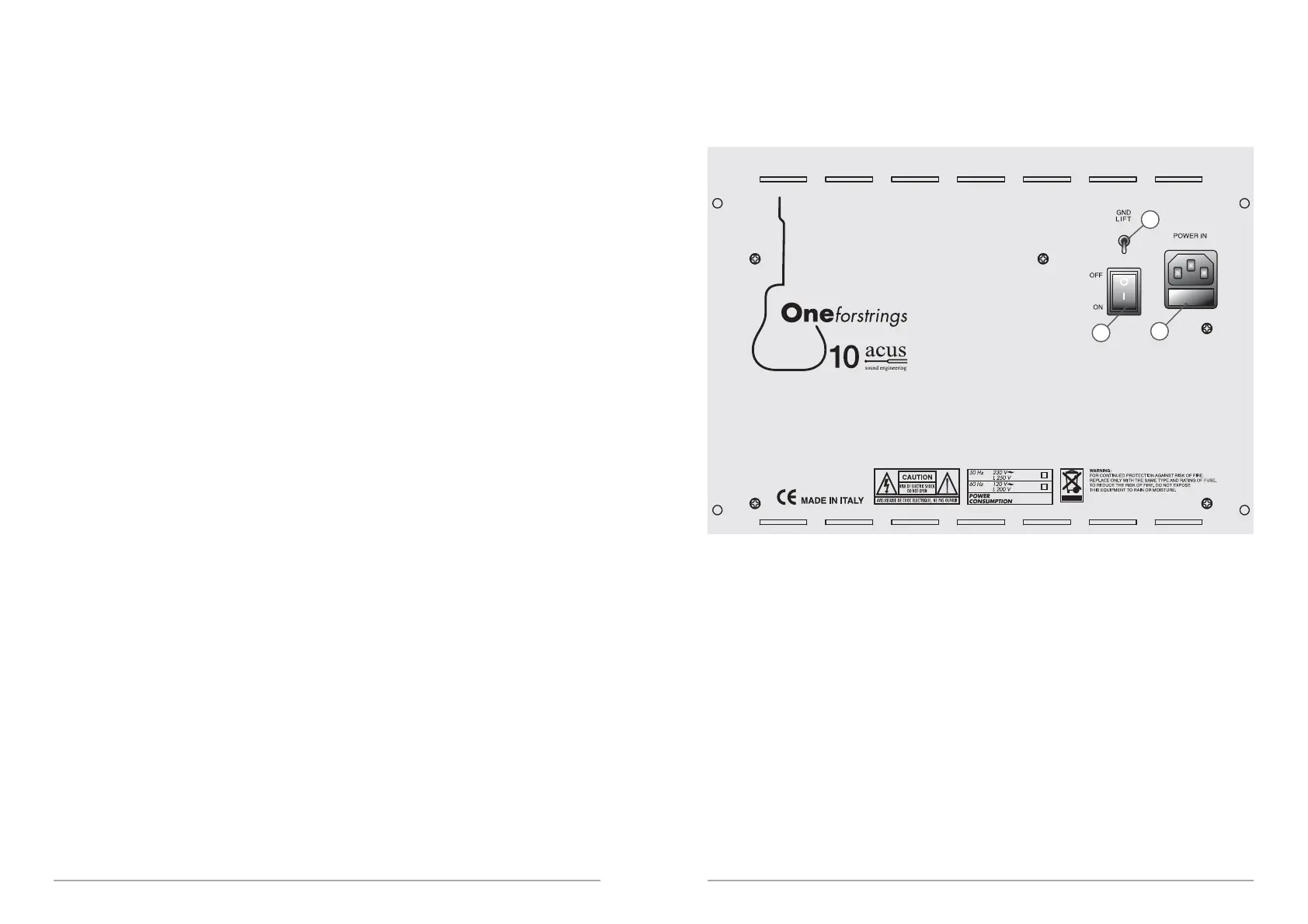

31- GND LIFT: switch grounding of the electronic circuit. Revert the position
in the event of a humming noise generated by the power supply.
32- OFF-ON: main switch.
33- POWER IN: socket for the power cord (supplied) to connect to the mains.
acus One 10
forstrings
acus One 10forstrings
30- MASTER: general volume of the amplifier. When this knob is set to 0, any
instrument is connected does not come out.
