ADB P.DG A4001N User Manual

Home Station ADSL ADB P.DG A4001N
© (2011) ADB Broadband S.p.A. All Rights Reserved. Proprietary Use Pursuant to Cover Page Instructions.
Advanced Setup Section 49
NAT >> VIRTUAL SERVER
If you enable NAT (Network Address Translation), you can configure the Virtual
Server, Port Triggering and DMZ Host.
Virtual Server allows you to direct incoming traffic from WAN side (identified by
Protocol and External port) to the Internal server with private IP address on the
LAN side. The Internal port is required only if the external port needs to be con-
verted to a different port number used by the server on the LAN side.

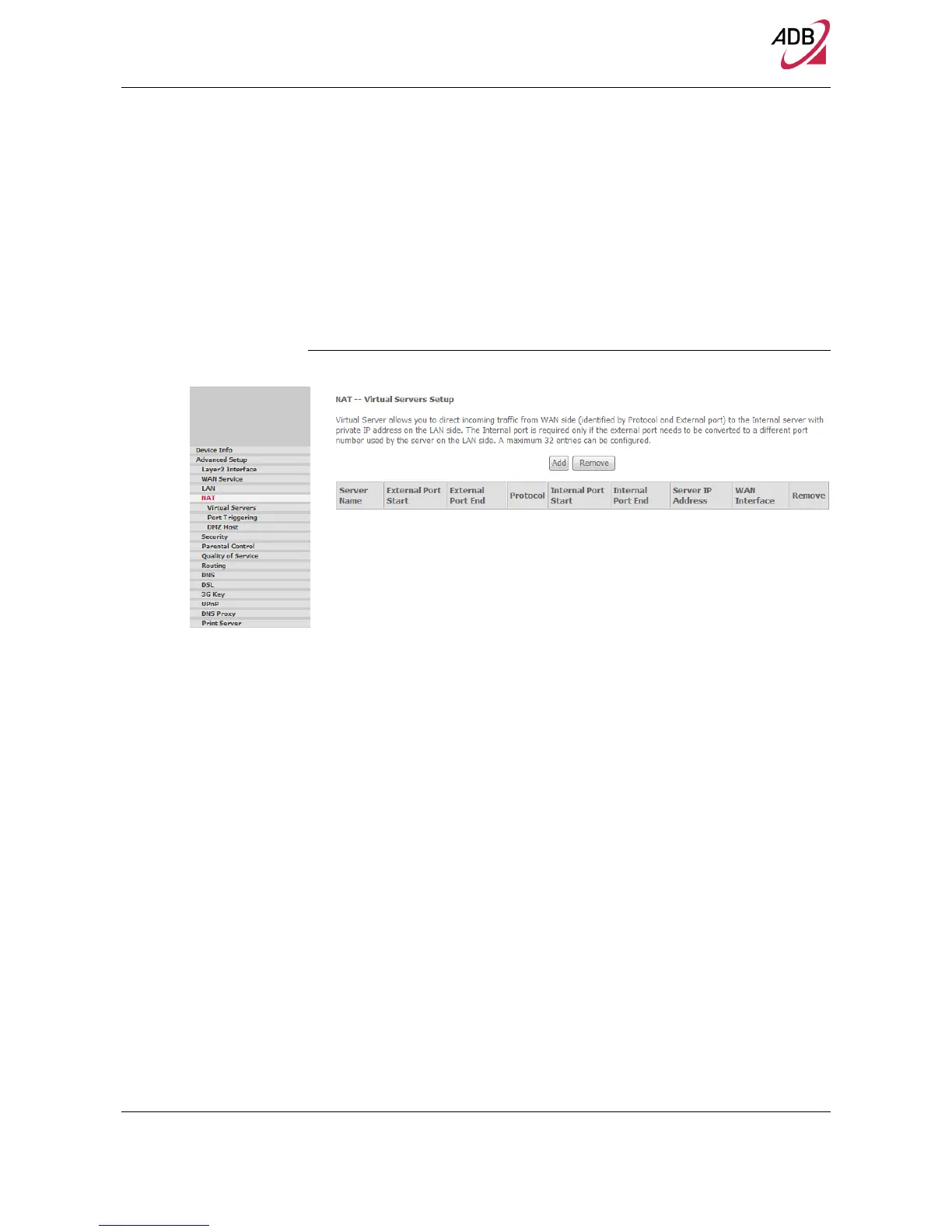

FIGURE 11. NAT - Virtual Servers Setup Panel
To add additional virtual servers, click on the Add button. If you need to remove
any of the server names, select the check box and click on the Remove button.
