FLEX power supply

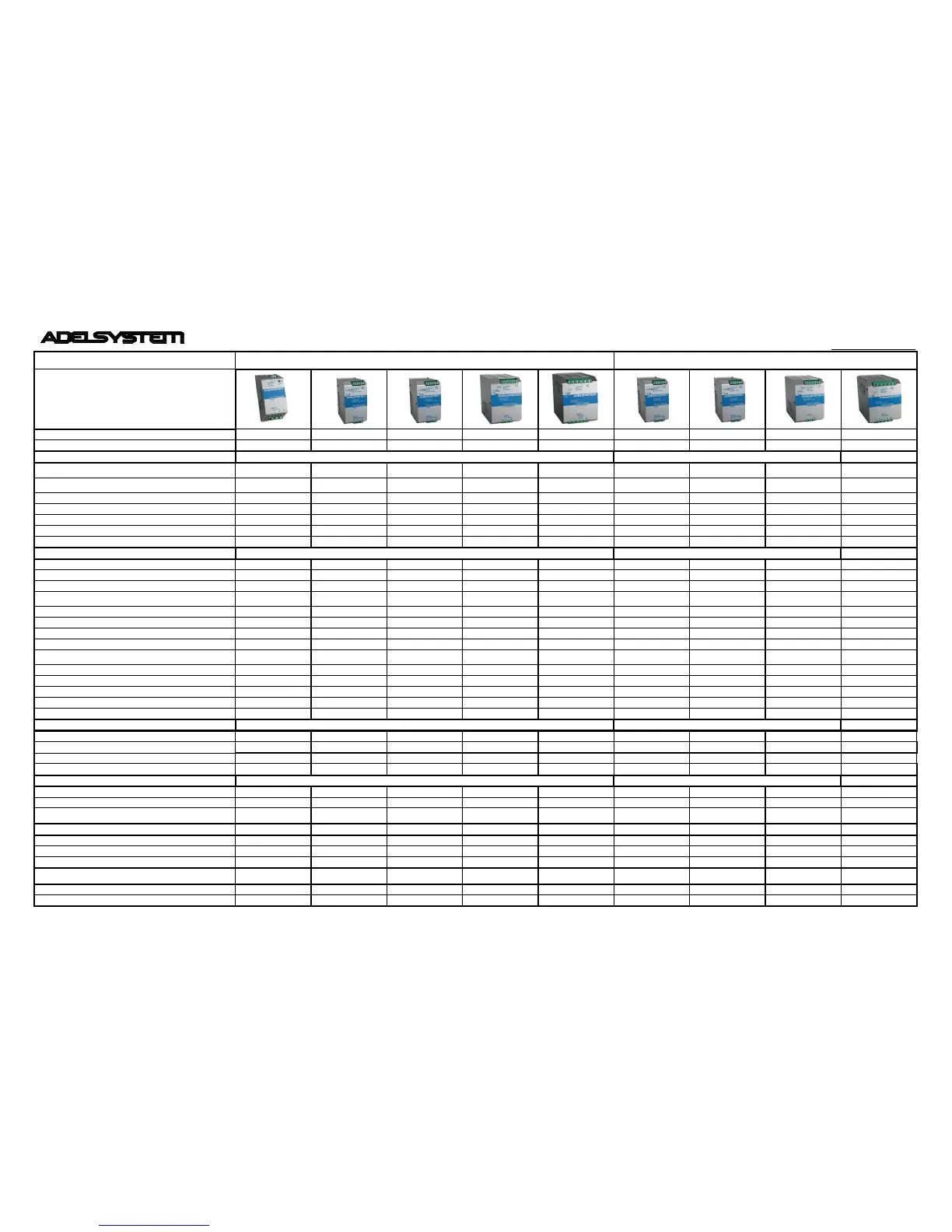

TECHNICAL DATA
Model
FLEX6024A FLEX9024A FLEX17024A FLEX28024A FLEX50024A FLEX9024B FLEX17024B FLEX28024B FLEX50024B
Wattage 40–70W 95–120W 120–180W 240–330W 480–600W 95–120W 120–180W 240–330W 480–600W
INPUT DATA
3 x Vac
Nominal Input Voltage / Tensione d’ingresso nominale 115 – 230Vac
115 – 230Vac
Input selectable
115 – 230Vac
Input selectable
115 – 230Vac
Input selectable
115 – 230Vac
Input selectable
230 – 400 – 500Vac
Input selectable
230 – 400 – 500Vac
Input selectable
230 – 400 – 500Vac
Input selectable
400 – 500Vac
Input Voltage Range / Campo di funzionamento 90 – 264Vac
90 – 135Vac
180 – 264Vac
90 – 135Vac
180 – 264Vac
90 – 135Vac
180 – 264Vac
90 – 135Vac
180 – 264Vac
187 – 264Vac
330 – 550Vac
187 – 264Vac
330 – 550Vac
187 – 264Vac
330 – 550Vac
330 – 550Vac
Inrush Current (Vn and In Load) I
2
t / Corrente di Inserzione
≤ 19 A ≤ 5msec ≤ 36 A ≤ 5msec ≤ 36 A ≤ 5msec ≤ 42 A ≤ 5msec ≤ 80 A ≤ 5msec ≤ 28 A ≤ 5msec ≤ 28 A ≤5 msec ≤ 34 A ≤5 msec ≤ 35 A ≤ 5 msec
Frequency /Frequenza di Ingresso 47 – 63 Hz 47 – 63 Hz 47 – 63 Hz 47 – 63 Hz 47 – 63 Hz 47 – 63 Hz 47 – 63 Hz 47 – 63 Hz 47 – 63 Hz
Input Current / Assorbimento 1.0 – 0.7A 1.8 – 0.9A 2.8 – 1.3A 3.3 – 2.2A 8.5 – 4.2 A 1.0 – 0.5 – 0.4A 1.5 – 0.8 – 0.7 A 2.2 – 1.4 – 1.0A 1,7A max
Internal Fuse / Fusibile Interno (non sostituibile) 4A 4A 4A 6.3A 10A 4A 4A 4A 6.3A
External Fuse (recommended)/ Fusibile Esterno raccomandato 6A 10A 10A 16A 16A 10A 10A 16 A 16A
OUTPUT DATA
Output Voltage Factory Setting ±3%/ Tensione di Uscita – (Vn) 24Vdc 24Vdc 24Vdc 24Vdc 24Vdc 24Vdc 24Vdc 24Vdc 24Vdc
Adjustment range / Campo di regolazione (Vadj) 22 – 27Vdc 22 – 27Vdc 22 – 27Vdc 22 – 27Vdc 22 – 27Vdc 22 – 27Vdc 22 – 27Vdc 22 – 27Vdc 22 – 27Vdc
Start up with capacitive load / Start up con carichi capacitivi
≤ 50.000µF ≤ 50.000µF ≤ 50.000µF ≤ 50.000µF ≤ 50.000µF ≤ 50.000µF ≤ 50.000µF ≤ 50.000µF ≤ 50.000µF
Turn-On delay after applying mains voltage /
Accensione con tensione di rete
1.5 sec. (max) 1 sec. (max) 1 sec. (max) 1 sec. (max) 1 sec. (max) 1 sec. (max) 1 sec. (max) 1 sec. (max) 1 sec. (max)
Continuous Current at 24 V < 40°C (In) / Corrente Continua 2.0A(115) – 3.0A(230) 5.0A 7.5A 14A 25A 5.0A 7.5A 14A 25A
Continuous Current at 24 V < 50°C (In) / Corrente Continua 1.5A(115) – 2.5A(230) 4.5A 6.0A 12A 22A 4.5A 6.0A 12A 22A
Continuous Current at 24 V < 60°C (In) / Corrente Continua – 4.0A 5.0A 10A 20A 4.0A 5.0A 10A 20A
Power Boost Current / Corrente di Boost (at 24Vdc 60°C ≥ 3min.) 3.5A 5.0A 7.5A 14A 25A 5.0A 7.5A 14A 25A
Current Max Oveload approx. 4Vdc (permanent) /
Corrente di sovraccarico (permanente)
Imax =
In 50°C x (1,8 – 2,2)
Imax =
In 60°C x (1,8 – 2,2)
Imax =
In 60°C x (1,8 – 2,2)
Imax =
In 60°C x (1,8 – 2,2)
Imax =
In 60°C x (1,8 – 2,2)
Imax =
In 60°C x (1,8 – 2,2)
Imax =
In 60°C x (1,8 – 2,2)
Imax =
In 60°C x (1,8 – 2,2)
Imax =
In 60°C x (1,8 – 2,2)
Short circuit current (Icc) / Corrente di corto circuito 7.0A 12A 16A 30A 60A 12A 16A 30A 60A
Hold-up Time ( min. Vac) 24Vdc / Tempo di arresto Typ. 20 msec Typ. 20 msec Typ. 20 msec Typ. 20 msec Typ. 20 msec Typ. 20 msec Typ. 20 msec Typ. 20 msec Typ. 20 msec
Residual Ripple / Ripple Residuo
≤ 80 mVpp ≤ 80 mVpp ≤ 80 mVpp ≤ 80 mVpp ≤ 80 mVpp ≤ 80 mVpp ≤ 80 mVpp ≤ 80 mVpp ≤ 80 mVpp
Efficiency (50% of In) / Rendimento tipico ≥ 85% ≥ 89% ≥ 89% ≥ 89% ≥ 90% ≥ 89% ≥ 89% ≥ 89% ≥ 91%
Dissipation power load max (W) / Potenza dissipata 6 11 17 28 54 11 17 28 54
CLIMATIC DATA
Ambient Temperature operation / Temperatura Ambiente di Lavoro -25 – +70°C -25 – +70°C -25 – +70°C -25 – +70°C -25 ÷ +70°C -25 ÷ +70°C -25 ÷ +70°C -25 ÷ +70°C -25 ÷ +70°C
De rating Tª > (In) / De rating Tª > (In) > 50° 2.5% °C > 60° 2.5% °C > 60° 2.5% °C > 60° 2.5% °C > 60° 2.5% °C > 60° 2.5% °C > 60° 2.5% °C > 60° 2.5% °C > 60° 2.5% °C
Ambient Temperature Storage / Temperatura max. Magazzino -40 ÷ +85°C -40 ÷ +85°C -40 ÷ +85°C -40 ÷ +85°C -40 ÷ +85°C -40 ÷ +85°C -40 ÷ +85°C -40 ÷ +85°C -40 ÷ +85°C
Humidity at 25 °C / Umidità 95% to 25°C 95% to 25°C 95% to 25°C 95% to 25°C 95% to 25°C 95% to 25°C 95% to 25°C 95% to 25°C 95% to 25°C
GENERAL DATA
Isolation Voltage (IN / OUT) / Tensione di Isolamento (IN / OUT) 3000Vac 3000Vac 3000Vac 3000Vac 3000Vac 3000Vac 3000Vac 3000Vac 3000Vac
Isolation Voltage(IN / PE) / Tensione di Isolamento(IN / TERRA) 1605Vac 1605Vac 1605Vac 1605Vac 1605Vac 1605Vac 1605Vac 1605Vac 1605Vac
Isolation Voltage(OUT / PE) / Tensione di Isolamento(OUT/TERRA) 500Vac 500Vac 500Vac 500Vac 500Vac 500Vac 500Vac 500Vac 500Vac
Protection Class (EN/IEC 60529) / Protezione Classe IP 20 IP 20 IP 20 IP 20 IP 20 IP 20 IP 20 IP 20 IP 20
Reliability (MTBF IEC 61709) / Affidabilità > 500 000 h > 500 000 h > 500 000 h > 500 000 h > 500 000 h > 500 000 h > 500 000 h > 500 000 h > 500 000 h
Pollution Degree Environment / Grado d'inquinamento ambientale 2 2 2 2 2 2 2 2 2
Connection Terminal Blocks Screw Type / Dimensione morsetti 2,5mm 2,5mm 2,5mm 2,5mm 4 mm 2,5mm 2,5mm 2,5mm 4 mm
Protection class (with PE connected) /
Grado di protezione (con cavo di terra collegato)
I I I I I I I I I
Dimension (w-h-d)/Dimensioni (l-h-p) mm 50x120x50 mm 55x110x105 mm 55x110x105 mm 72x115x135 mm 85x120x140mm 55x110x105 mm 55x110x105 mm 72x115x135 mm 85x120x140mm
Weight / Peso 0.30 Kg approx 0.56 Kg approx 0.56 Kg approx 0.85 Kg approx 1.2 Kg approx 0.56 Kg approx 0.56 Kg approx 0.85 Kg approx 1.2 Kg approx
2 and 3Phase (Input 230 – 400 – 500Vac) 1 Phase (Input 115 – 230Vac)
2 x Vac 2 x Vac
All specification are subject to change without notice Data List FLEX UNI_R14_pag 2.xls
