ADF LINEA 820 NMV ZERO CLEARANCE BOX ASSEMBLY INSTRUCTIONS 1/8/23
12

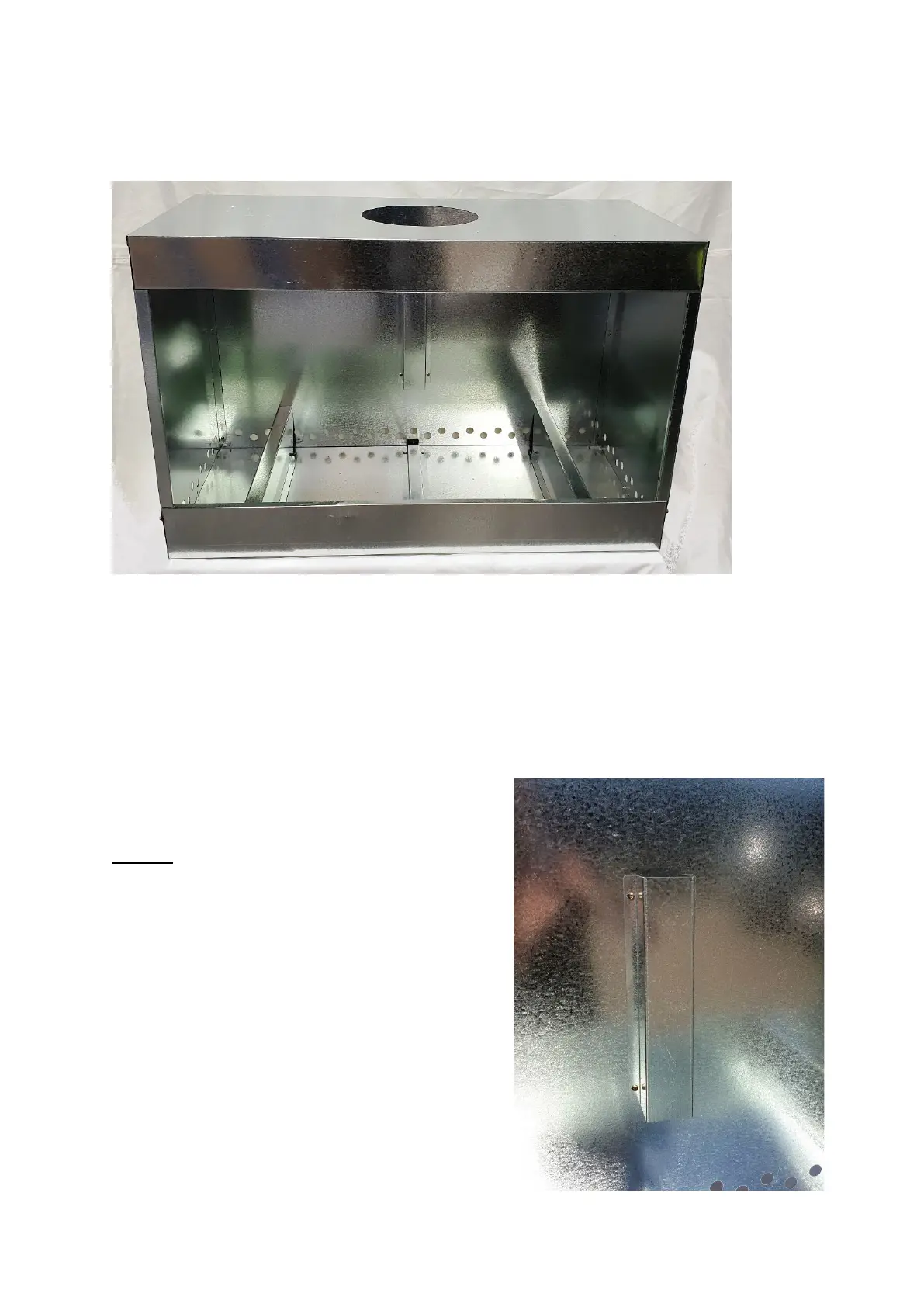

Below shows the side panels and back panel in position. Note only fully
tighten all screws once the top panel is in position.
The top panel fits on, with the folds on the outside of all the other panels.
Alternatively, it could be fitted on the inside of the side panels, so the holes are
the same size.
Use the larger self-tapping screw for the larger holes, or create new holes with
the standard screws. Once the top panel is on, tighten all of the screws.
Step 4:
Add the spacer / stopper to the back wall.
So that the heater will stop when inserted
up to the rear spacer
.
