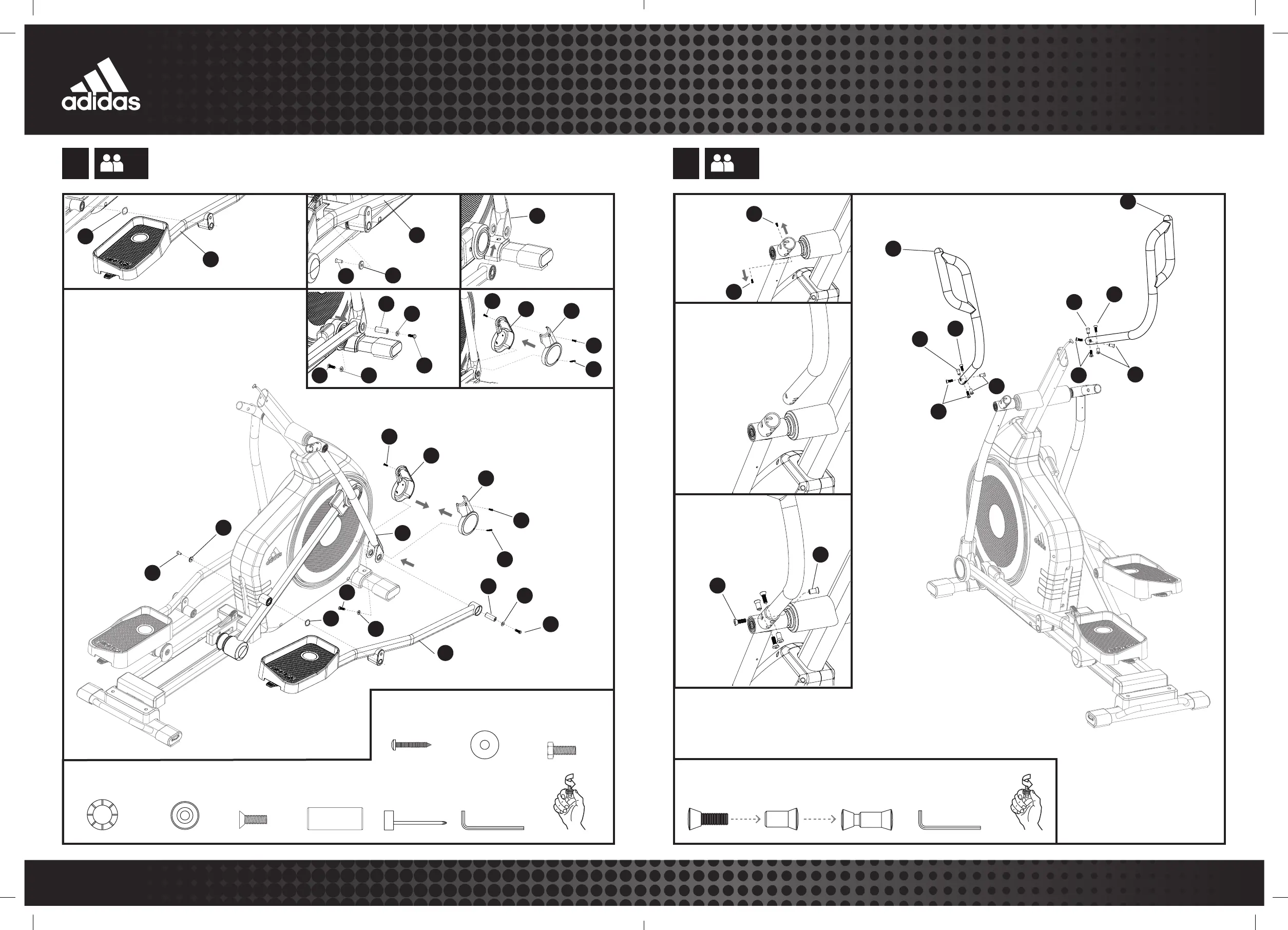

9 X-21FD CROSSTRAINER
WWW.ADIDASHARDWARE.COM 10
39# 40#
189#
M8x 20L(6PCS)
6 x 30 x 84(2PCS)
M8x 16L(6PCS)
35
41
41
39
39
40
40
39
39
40
40
49
39
40
44#
45#
159#
188#
189#
146#
147#
26#
43#
13 、14(2PCS)
φ
17.5x φ 25x0.3T( 1PCS)
M8x 20L(2PCS)
φ8.2x φ25x2T (2PCS)
φ8x φ25x4.5T (1PCS)
M8x 20L (1PCS)
ST2.9 x 20L (1PCS)
φ20 x 50L(1PCS)
6 x 30 x 84(1PCS)
41
46
47
41
26
159
43
44
177
177
43
45
146
147
44
50
47
46
41
26
41
50
43
159
44
44 43
147
146
177
45

D

B
C
39. M8*20L
x 6
+ =

B
C
40. M8*16L
x 6
189. 6*30*84
x 1
189. 6*30*84
x 2
45. Ø17.5*Ø25*0.3T
X 1
159. Ø20X50L
X 1
43. Ø8.2*Ø25*2T
X 2
147. M8x20L
x 1
146. Ø8*Ø25*4.5T
X 1
44. M8*20L (Teflon
Paste) x 2
188. 13/14
x 2
26. ST2.9*20L
x 1
5 6
x 2x 2
