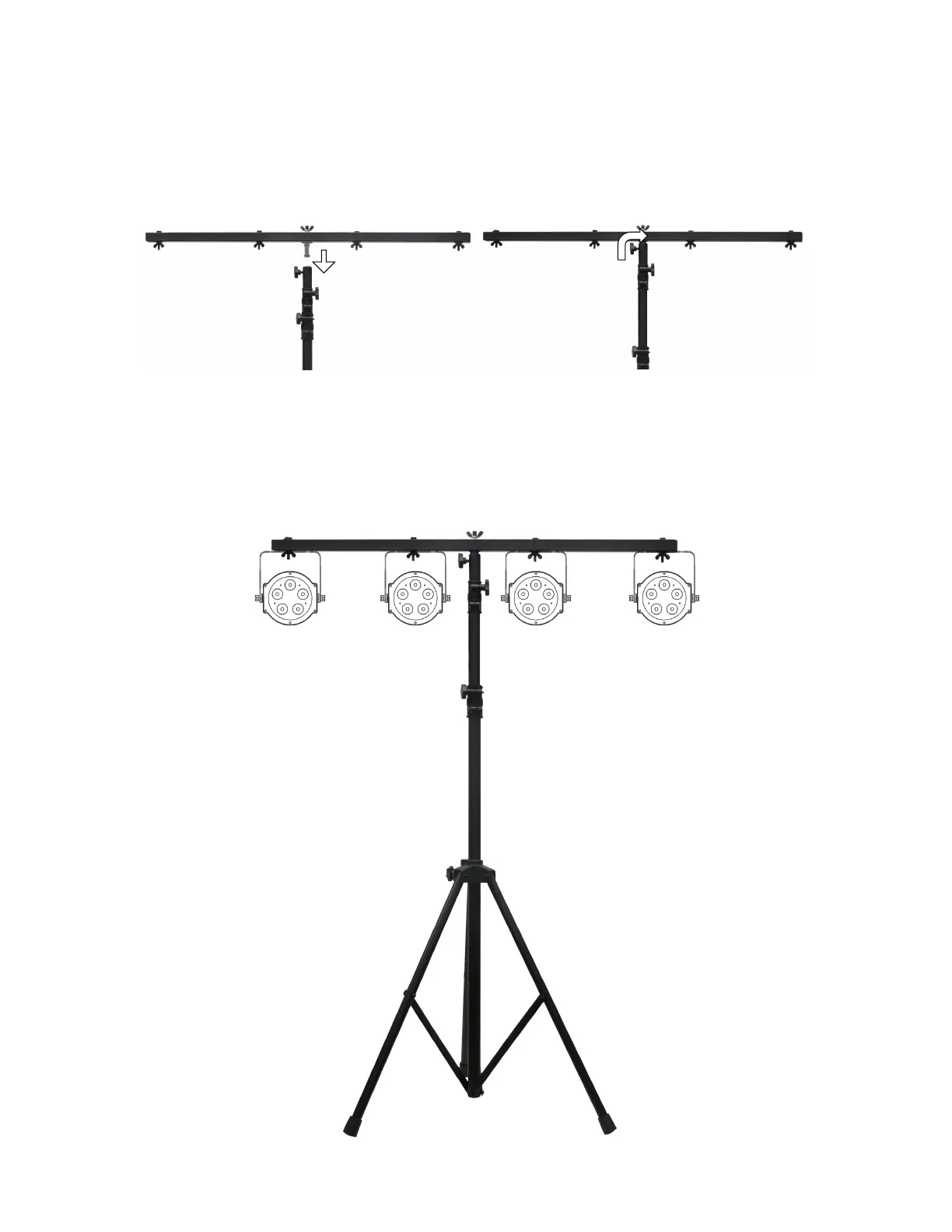

MOUNTING THE T-BAR
The stand comes with a T-Bar for mounting optional lighting and other equipment. To use the T-Bar,
install the FS-Adapter by inserting it through the center hole of the T-Bar and tighten using the
provided locking nut. To install the T-Bar onto the stand, insert the shaft from the FS-Adapter into the
Inlet Pipe and tighten Knob A. Ensure all hardware is securely fastened.
MOUNTING OPTIONAL LIGHTING AND OTHER ACCESSORIES
When using the FS-Adapter only, one fixture may be mounted to the stand at a time. Lighting and
other optional accessories may be mounted to the T-Bar as well. For installation instructions, please
refer to the mounting instructions provided with the fixtures that are to be installed.
