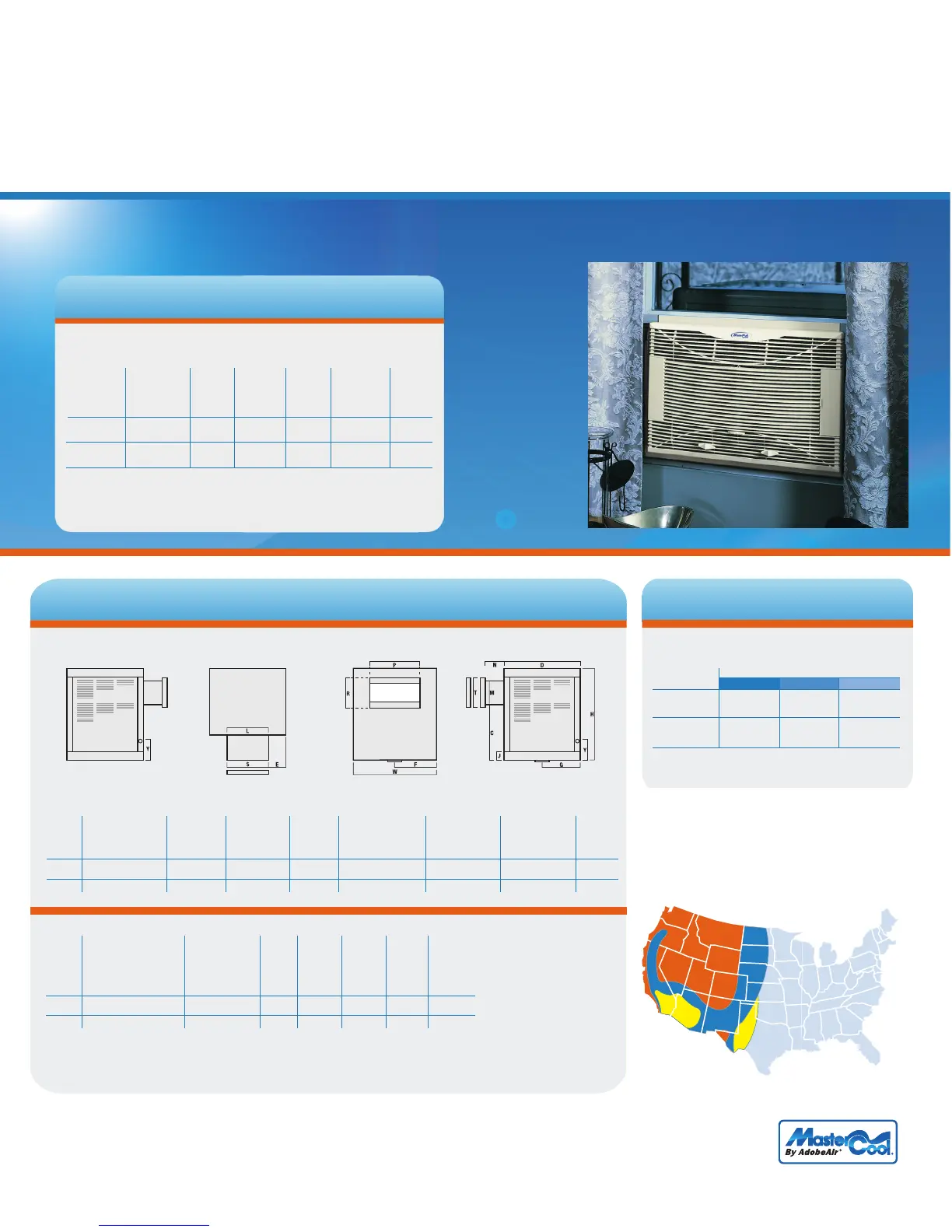

Specifications
Industry
Model Standard
Series Rating* HP** Speed Phase Amps** Volts
MRC55W 5500 ½ 2 1 9.2 120
MW5500 5500 ½ 2 1 9.2 120
Dimensions
Sizing Instructions
Side View Top View Front View Side View
Cabinet Dimensions Bottom Duct Dimensions Grille Dimensions Duct With Flanges Water
2
Model Height Width Depth Duct Location Drain Location
1
Pan Depth Width Height Depth Width Height Width Height Service
H W D C E F G J L M N P R S T Y
MRC55W
32½ 42 26 16 10¼ 21 3 3½ 21½ 13 10 23½ 15 21½ 14¼ 5¾
MW5500
32½ 42 26 16 10¼ 21 3 3½ 21½ 13 10 22½ 14
7
/8 21½ 14¼ 5¾
Model Approximate Square Footage Cooled*
A B C
MRC55W
* Square footages are for 8’ ceiling heights and
average insulation and heat loads for each zone
using an 80
o
desired room temperature.
When in doubt, select a higher horsepower or
larger cabinet or contact your salesperson for
additional information.
1200 1400 1600
Blower
Pulley Effective
Pads Blower Wheel Belt Pitch Pad Area Shipping Operating
Model Number Height Width Diameter Width Length Diameter (Sq. In.) Weight Weight
MRC55W
2 28½ 22½ 16 16 4L57 10 1040 162 260
MW5500
2 28½ 22½ 16 16 4L57 10 1040 162 260
* Industry Standard Rating is a numerical index for use in comparing units of different manufacturers.
** Blower motor (high speed) and pump
