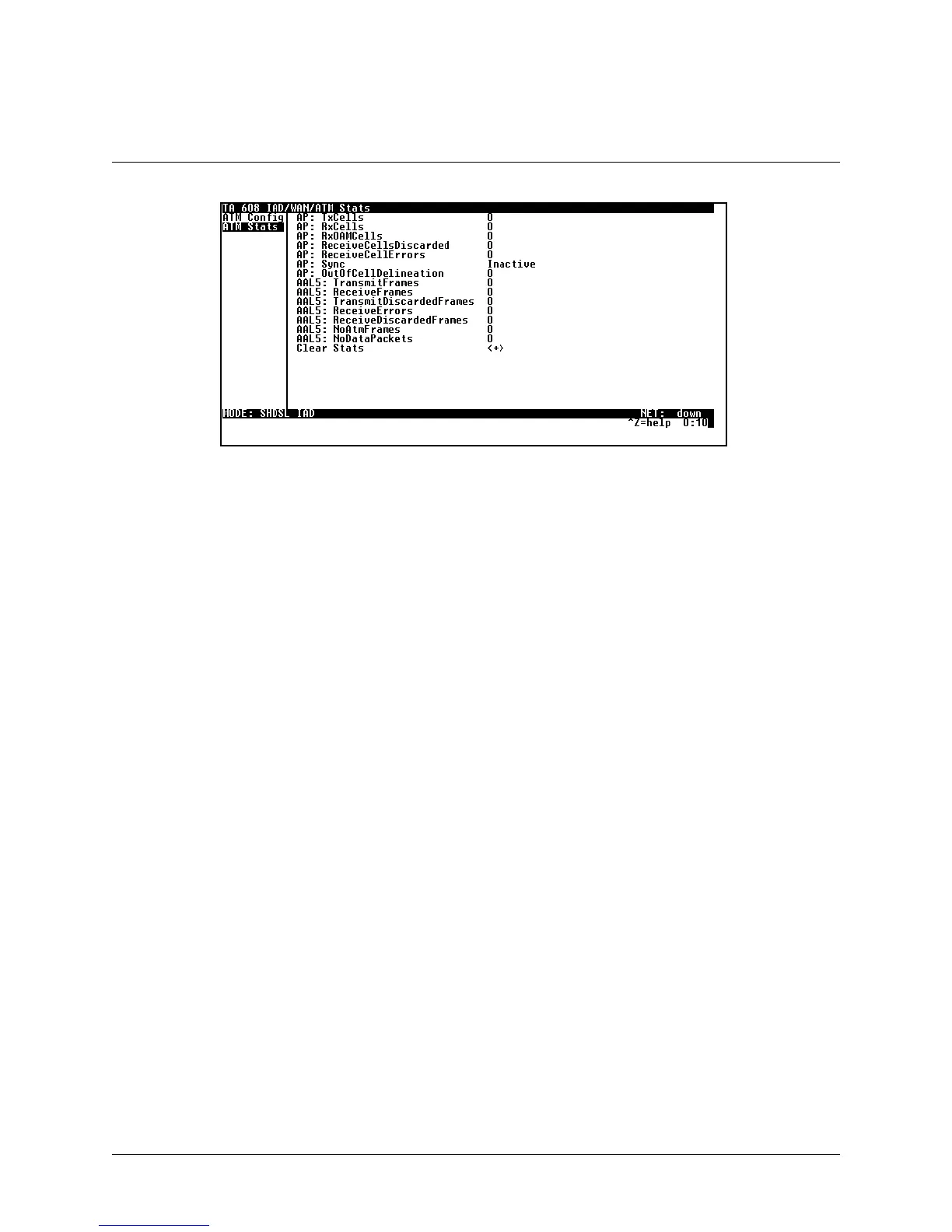

Figure 8. ATM Stats Menu
AP: Tx Cells
This is the number of cells transmitted.
AP: Rx Cells
This is the number of cells received.
AP: Rx OAM Cells
This is the number of OAM cells received
AP: Receive Cells Discarded
This is the number of cells received and discarded. An incrementing count in this field could indicate a con-
figuration problem with the ATM layer.
AP: Receive Cell Errors
This is the number of cells received with an HEC error.
AP: Sync
This indicates cell delineation at the ATM layer.
AP: Out Of Cell Delineation
This indicates loss of cell delineation at the ATM layer.
AAL5: Transmit Frames
This is the number of AAL5 frames transmitted.
AAL5: Receive Frames
This is the number of AAL5 frames received.
AAL5: Transmit Discarded Frames
This is the number of AAL5 frames discarded.
