Total Access 600 Series User Manual © 2002, ADTRAN, Inc.
Total Access 600 Series SHDSL IAD User Interface Guide/64200683L1-31B
Page 38
>WAN
Use the :$1 menu (Figure 12) to configure WAN settings on the Total Access 600.

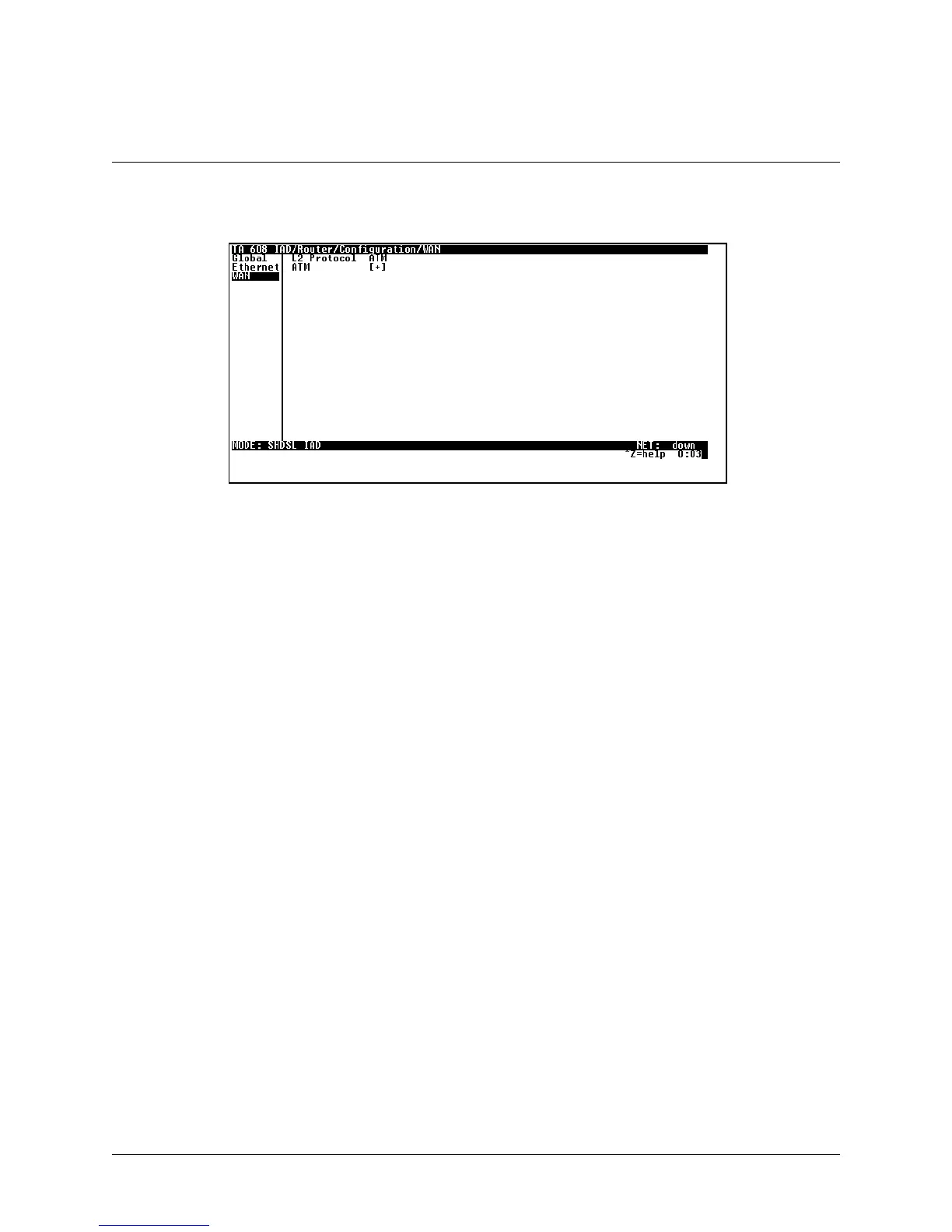

Figure 12. WAN Menu
L2 Protocol
Displays the current L2 protocol - ATM (Read Only).
ATM
Use the ATM menu to setup Data PVCs for the router.
Description
This is the text description for the PVC.
VPI
ATM virtual port identifier.
VCI
This is the ATM virtual channel identifier.
PCR (Peak Cell Rate)
Limits transmitted cells.
QOS (Quality of Service)
Indicates this PVC’s traffic class.
Protocol
This is the protocol supported on the PVC.
