Total Access 600 Series User Manual © 2002, ADTRAN, Inc.
Total Access 600 Series SHDSL IAD User Interface Guide/64200683L1-31B
Page 44
LAN-TO-WAN (Out)
The packets which come out toward the WAN from the TA600 can be filtered in three ways:
Out Exceptions
This is a list of up to 32 filter entries. The setup is exactly the same as the )
,/7(56
,
1
(
;&(37,216
list.
Configuring the Router – Status
Use the 5
287(5
6
7$786
menu to view and set the parameters shown in Figure 13. The 5
287(5
6
7$786
screens give the user useful information for debugging the current routes in the Total Access 600.

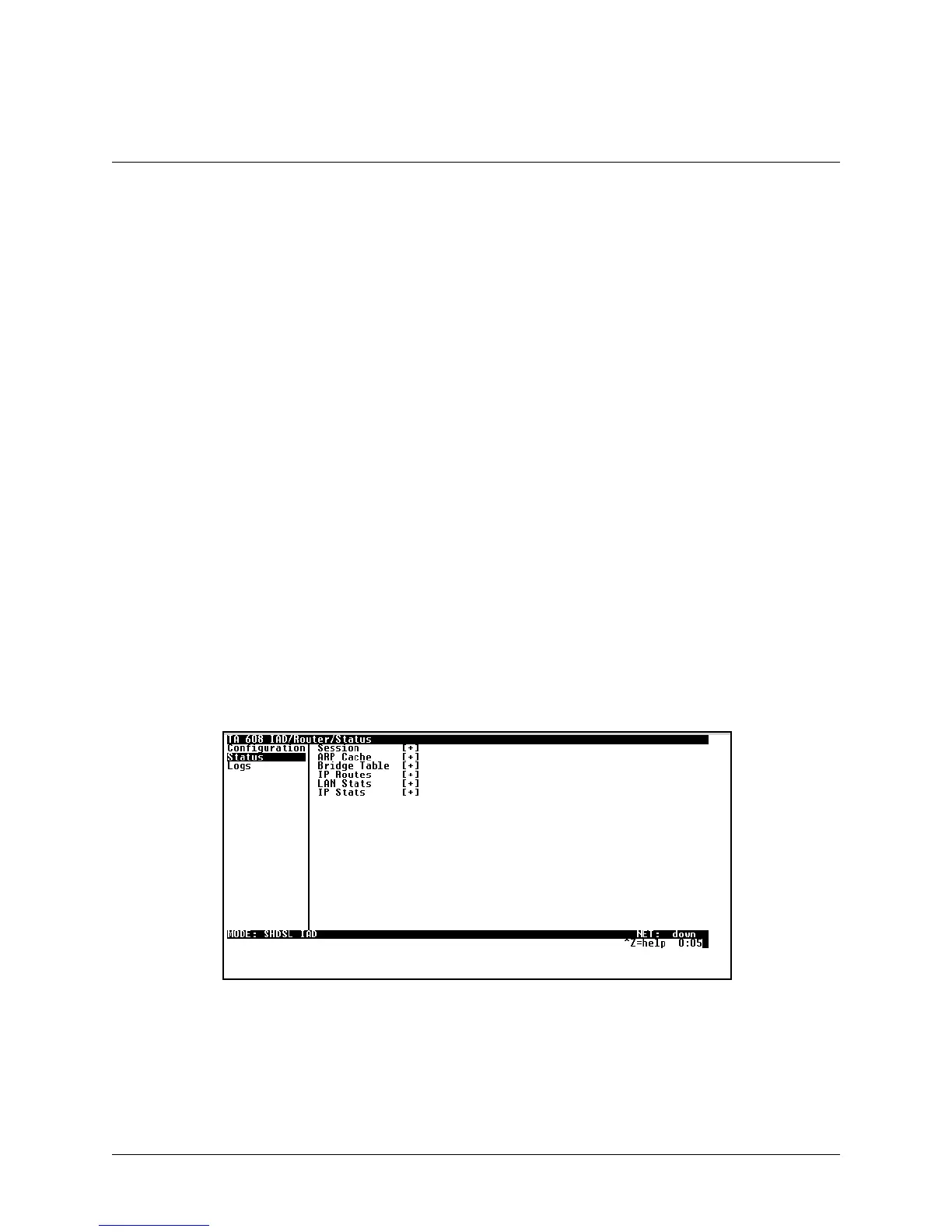

Figure 13. Router/Status Menu
FILTER LIST NAME
Selects between filters defined in the list.
N
EXT
O
PER
The next operation to use to combine with the next
filter in the list:
(1'
the last filter to combination.
$1'
logically AND this filter with the next filter in the
list.
25
logically OR this filter with the next filter in the list.
DISABLED (
GHI Turns off packet input filtering. No outgoing packets
are blocked.
BLOCK ALL
All outgoing packets to the WAN are blocked except as
defined in the
FILTERS/OUT EXCEPTIONS
list.
FORWARD ALL
All outgoing packets to the WAN are not blocked ex-
cept as defined in the
FILTERS/OUT EXCEPTIONS
list.
