617108148PF2-13D 3
Mounting on a Desk or Shelf
To mount the switch on a desk or shelf, complete the following steps.
1. Verify that the desk or shelf is sturdy enough to support the switch.
2. Attach the four adhesive rubber feet to the bottom of the switch.

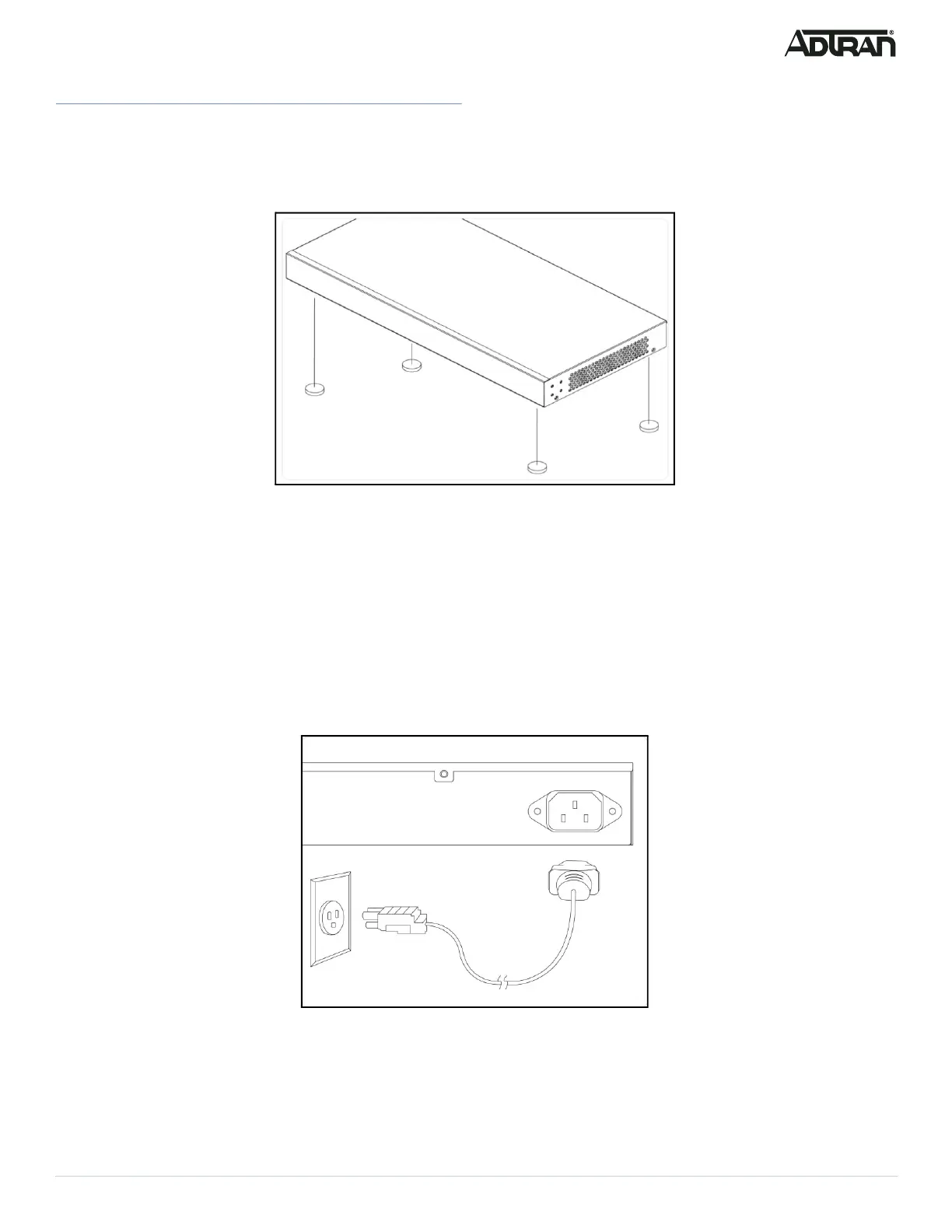

Figure 5. Attaching the Rubber Feet
f CAUTION!
Desk or shelf mounting of the equipment should be such that the amount of air flow required for safe operation of the equipment is not
compromised. Allow 1-inch clearance on the top and sides of the unit for sufficient air flow.
Connect AC Power
To connect the AC power cord to the switch, complete the following steps.
1. Connect the AC power cord to the AC power receptacle on the rear panel of the switch.
2. Connect the other end of the AC power cord to a properly grounded AC power outlet.
3. Confirm that the power is connected properly. The SYSTEM LED should be ON (see “SYSTEM Status LED”).
Figure 6. Connecting the AC Power Cord
Install SFP+ Modules
You can install or remove a mini-GBIC SFP+ module from a SFP+ port without having to power off the switch. To install an SFP+ module,
complete the following steps.
1. Insert the module into the appropriate SFP+ port.
