TOTAL ACCESS 612/616/624 (T1 TDM) P/N 4200624L1#TDM
For more detailed documentation, visit us online at www.adtran.com
Quick Start Guide
Quick Start Guide, 64200624L1#T-13A, March 2003 Technical Support 1-888-4ADTRAN (1-888-423-8726) Copyright  2003 ADTRAN, All Rights Reserved
AC Power Connection
Network (T1)
Connection
Life Line
POTS
Battery Backup
Connection
10/100BaseT
Ethernet
V.35 DTE
Connection
Voice Connection
CRAFT Interface

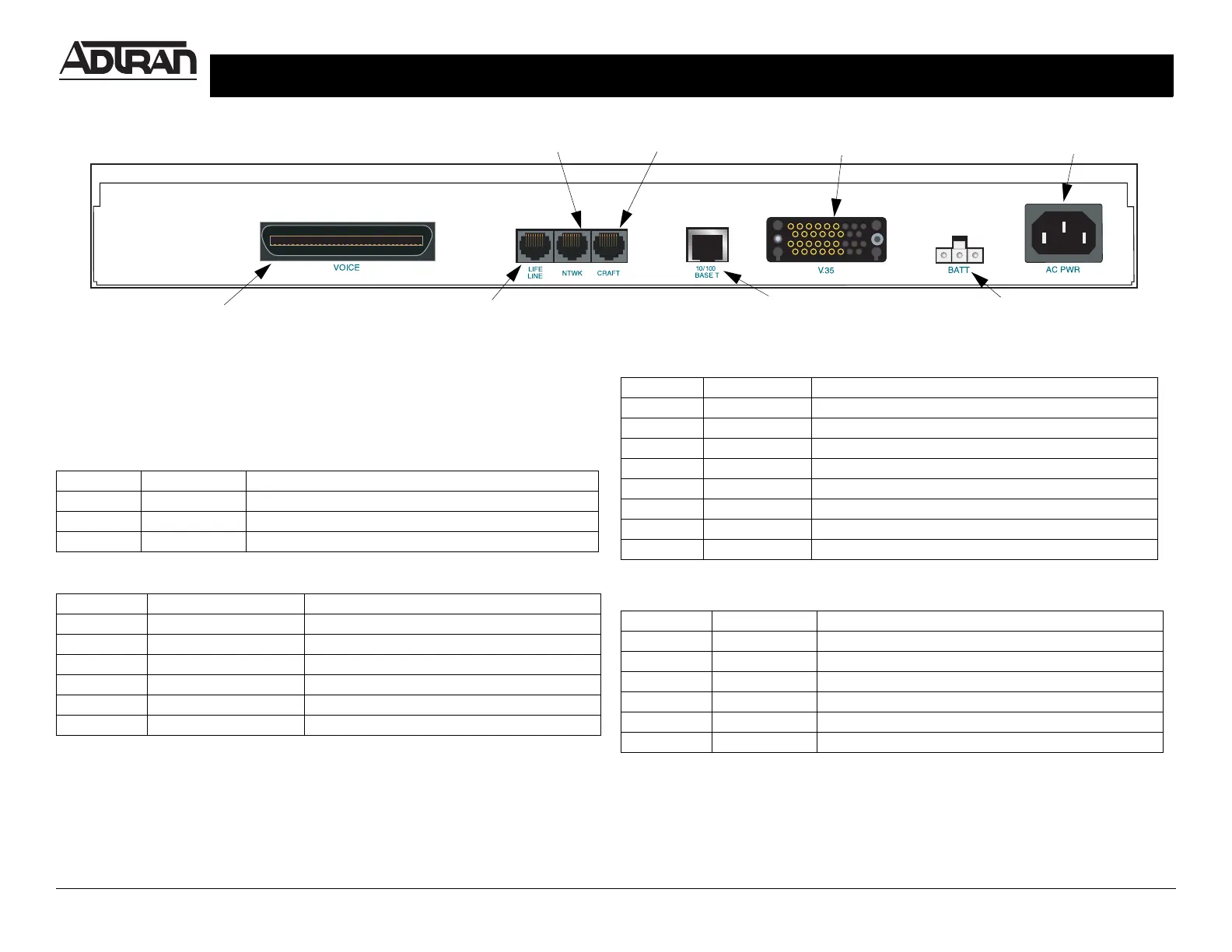

Reviewing the Rear Panel Design
Voice Connection
A single 50-pin female amphenol connector provides the interconnect wiring for
the analog circuits (FXS, FXO). Refer to Section 2, Engineering Guidelines, of
the Total Access 600 Series System Manual for a detailed pinout.
LIFE LINE POTS Pinout
NTWK (T1) Pinout
V.35 Connection
The V.35 DTE interface is compliant with ITU Recommendations through a
standard 34-pin Winchester connector. Refer to Section 2, Engineering
Guidelines, of the Total Access 600 Series System Manual for a detailed pinout.
PIN NAME DESCRIPTION
1,2, 5, 6 UNUSED —
3 RING Life Line Ring Connection
4 TIP Life Line Tip Connection
PIN NAME DESCRIPTION
1 R1 | RXDATA-RING Receive data from the network (RING)
2 T1 | RXDATA-TIP Receive data from the network (TIP)
3 UNUSED —
4 R | TXDATA-RING Transmit data towards the network (RING)
5 T | TXDATA-TIP Transmit data towards the network (TIP)
6,7,8 UNUSED —
CRAFT Pinout
10/100BaseT Ethernet Pinout
Battery Backup Connection
An optional battery backup system is available for the Total Access 6xx (T1 TDM)
(P/N 1175044L1, 2, or 4). Refer to the documentation available for your specific
battery backup unit for more information on this connection.
PIN NAME DESCRIPTION
1 GND Ground - connected to unit chassis
2 RTS Request to send - flow control
3 RXDATA Data received by the unit
4 DTR Data terminal ready
5 TXDATA Data transmitted by the unit
6 CD Carrier detect
7 UNUSED —
8 CTS Clear to send - flow control
PIN NAME DESCRIPTION
1 TX1 Transmit Positive
2 TX2 Transmit Negative
3 RX1 Receive Positive
4,5 — Unused
6 RX2 Receive Negative
7, 8 — Unused
