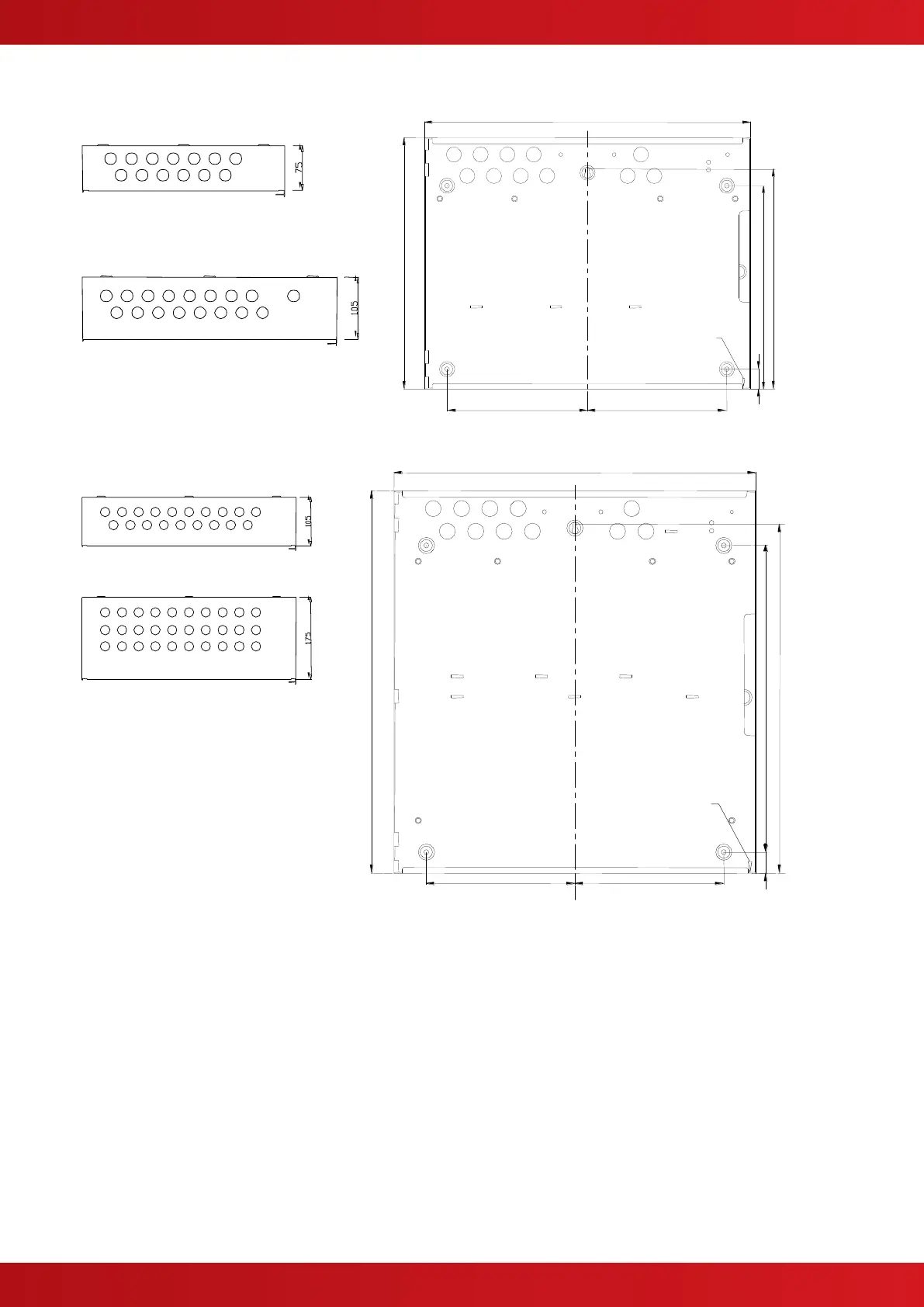

(/S) Enclosure Size and knockouts (top)
(/M) Enclosure Size and knockouts (top)
427
340
299
26
183.5
183.5
Knockouts x2
271
(/M) Enclosure Size and Fixing Point Dimensions
(/L Enclosure Size and knockouts (top)
(/D Enclosure Size and knockouts (top)
447
472
431
26
183.5
183.5
Knockouts
/L x2, /D x3
378
(/L, /D) Enclosure Size and Fixing Point Dimensions
