ACTH12 THERMOSTAT INSTALLATION:

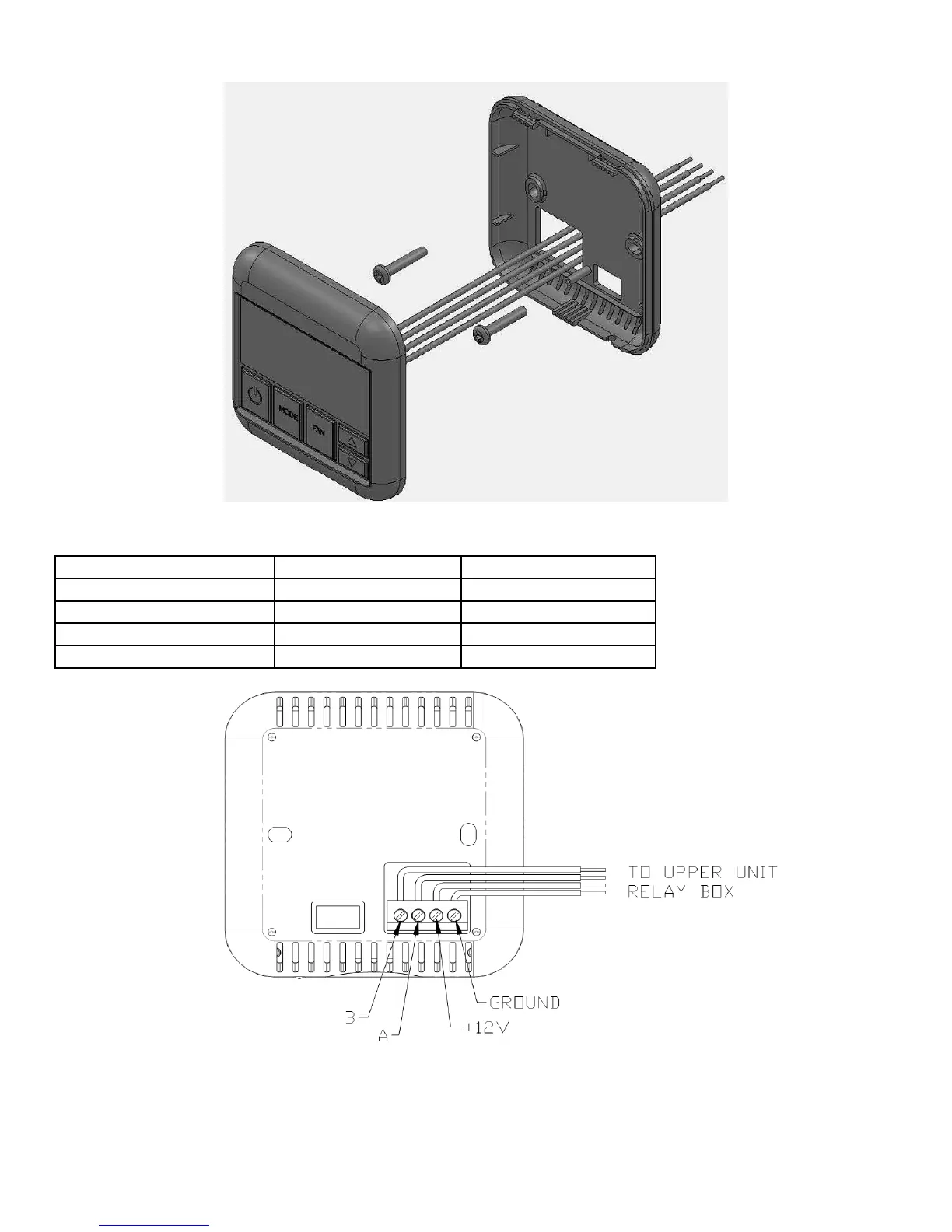

ACTH12 THERMOSTAT WIRING

Function Wire Size Label Text

12VDC 22 AWG 12V

Ground 22 AWG COM

A Data Communication 22 AWG A

B Data Communication 22 AWG B

IMPORTANT: When connecting the wires:

1. Make any adjustments required to relieve pinched or stressed wiring.

2. Remove ¼” insulation from the 4 wires. Use a small Flat-head screw driver to loosen the wire terminal screws.

Push each corresponding wire into the proper terminal hole and tighten each screw.
