The following tools (not included) are needed for making adjustments:
COMBINATION SQUARECOMBINATION WRENCHFRAMING SQUARE
Ø 254 mm
n
max.
7000
Ø 30 mm
48 HW 2.2 mm
42
43
41
1
7
8
9
11
13
14
15
16
17
18
19
20
21
23
25
26
33
35
34
10
12
12
36
40
12
24
12
32
28
29
31
30
27
4
22
37 3938
2
3
6
5

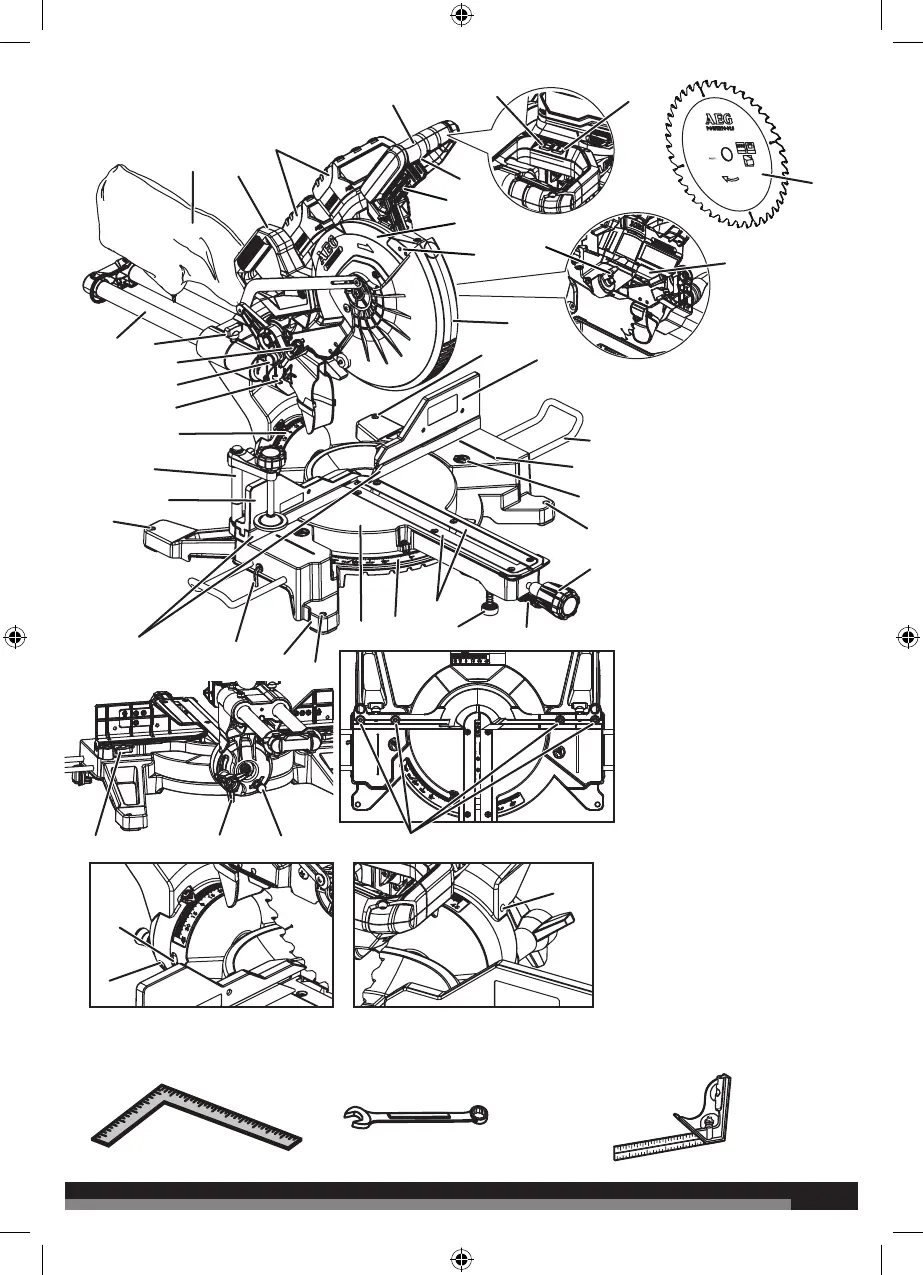

1. “D” Handle
2. Laser button
3. LED button
4. Saw blade
5. LED light
6. Spindle lock button
7. Switch trigger
8. Lower guard lock out lever
9. Upper blade guard
10. Laser guide
11. Lower blade guard
12. Mouting hole
13. Right sliding fence
14. Extension bar
15. “No hands zone” boundary line
16. “No hands zone” label
17. Mitre lock knob
18. Detent release lever
19. Balancing foot
20. Throat plates
21. Mitre scale
22. Turning table
23. Saw base
24. Blade wrench
25. Fixed fence
26. Left sliding fence
27. Work clamp
28. Bevel scale
29. Depth stop
30. Head lock pin
31. Depth control knob
32. Sliding lock knob
33. Slide bar
34. Dust bag
35. Carrying handle
36. Battery pack
37. Sliding fence adjustment knob
38. Bevel lock knob
39. Single/dual bevel selector
40. Screws for fixing fence
41. 0° bevel stop screw
42. Right bevel angle adjusting screw
43. Left bevel angle adjusting screw
