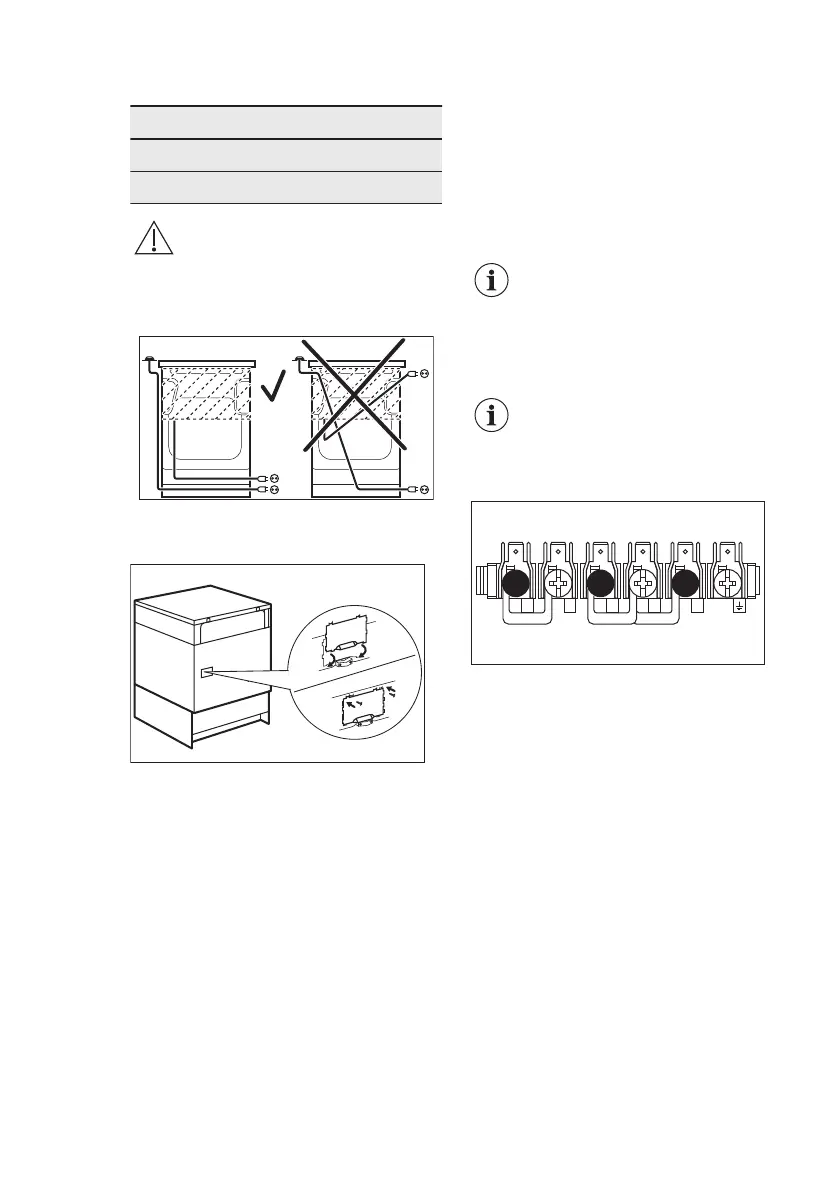

Applicable types of cables for different
phases:
Phase Min. size cable
1 3x6.0 mm²
3 with neutral 5x1.5 mm²
WARNING!
The power cable must not
touch the part of the
appliance shaded in the
illustration.
3.5 Covering terminal board
• The recommended cross-section area
is six square millimetres (6 mm²).
• When you refit the mains terminal
cover, make sure that the lower tabs
are located inside the bottom edge of
the aperture, before you fix the two
screws into the top edge of the mains
terminal cover.
• Make sure that the cover is securely
fastened.
To open the cover of
terminal board obey the
procedure in opposite
sequence.
3.6 Terminal board
Do not remove blanking
plates.
Make sure that the links are fitted as
shown.
ENGLISH 9
