5

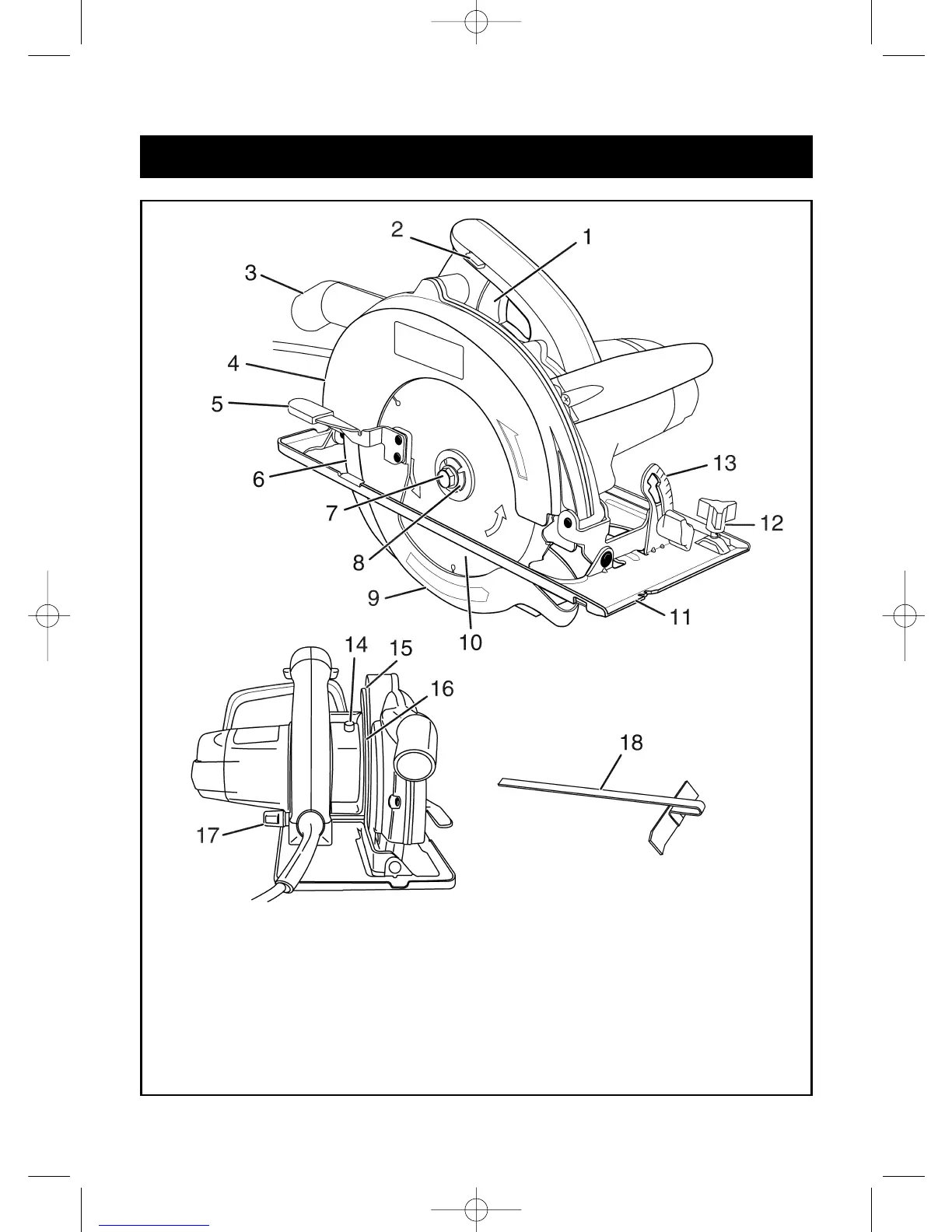

FEATURES
1. TRIGGER SWITCH
2. SAFETY BUTTON
3. DUST NOZZLE
4. UPPER GUARD
5. LOWER GUARD LEVER
6. RIVING KNIFE
7. HEX. SCREW HEAD
BOLT
8. OUTER FLANGE
9. LOWER GUARD
10. BLADE
11. BASE PLATE
12. KNOB BOLT
13. BEVEL SCALE
14. SPINDLE LOCK
BUTTON
15. PROJECTION
16. DEPTH SCALE
17. DEPTH ADJUSTMENT
KNOB
18. STRAIGHT FENCE
