INSTALLATION
8

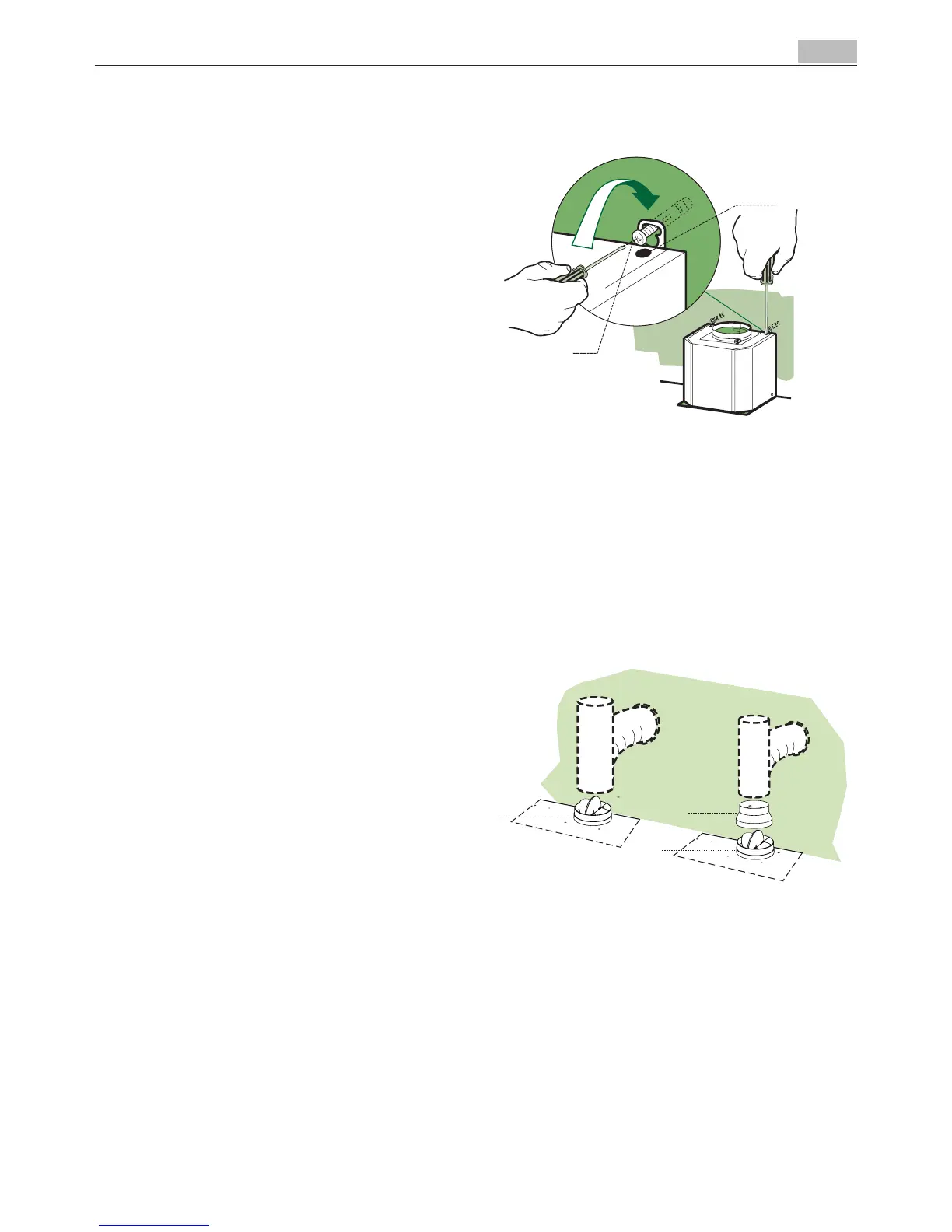

HOOD BODY MOUNTING
• Beforeattachingthehoodbody,tightenthe
two screws Vr located on the hood body
mounting points.
• Hookthehoodbodyontothescrews12a.
• Fullytightenthesupportscrews12a.
• Adjust the screws Vr to level the hood
body.
CONNECTIONS
DUCTED VERSION AIR EXHAUST SYSTEM
When installing the ducted version, connect the
hood to the chimney using either a flexible or
rigid pipe ø 150 or 120mm, the choice of which
is left to the installer.
To install a ø 150
• Toinstallthedumper10
• Fixthepipeinpositionusingsufficientpipe
clamps (not supplied).
To install a ø 120
• Toinstallaø120mmairexhaustconnection,
insert the reducer flange 9 on the dumper
10.
• Fixthepipeinpositionusingsufficientpipe
clamps (not supplied)
.• Removeanyactivatedcharcoalfilters.







