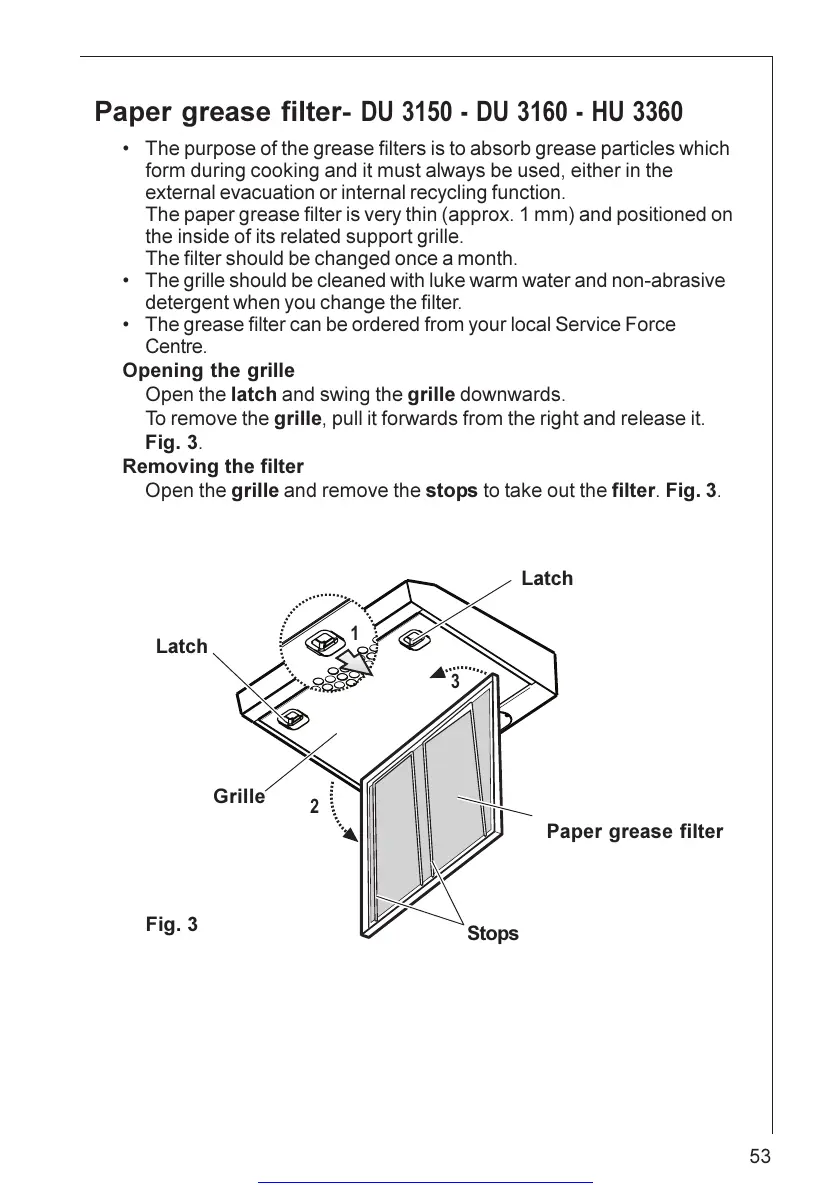

Paper grease filter- DU 3150 - DU 3160 - HU 3360
The purpose of the grease filters is to absorb grease particles which
form during cooking and it must always be used, either in the
external evacuation or internal recycling function.
The paper grease filter is very thin (approx. 1 mm) and positioned on
the inside of its related support grille.
The filter should be changed once a month.
The grille should be cleaned with luke warm water and non-abrasive
detergent when you change the filter.
The grease filter can be ordered from your local Service Force
Centre.
Opening the grille
Open the latch and swing the grille downwards.
To remove the grille, pull it forwards from the right and release it.
Fig. 3.
Removing the filter
Open the grille and remove the stops to take out the filter. Fig. 3.
Fig. 3
1
2
3
Paper grease filter
Stops
Latch
Grille
Latch
