AEG HK956970FB - Attaching the seal; Assembly

• Replace the damaged mains cable
with a special cable (type H05BB-F
Tmax 90°C; or higher). Speak to your
local Service Centre.
8.4 Attaching the seal
1. Clean the worktop around the cut
out area.
2. Attach the supplied seal stripe to the
lower edge of the hob along the
outer edge of the glass ceramic. Do
not extend it. Make sure that the
ends of the seal stripe are located in
the middle of one side of the hob.
3. Add some mm when you cut the seal
stripe to the length.
4. Push the two ends of seal stripe
together.

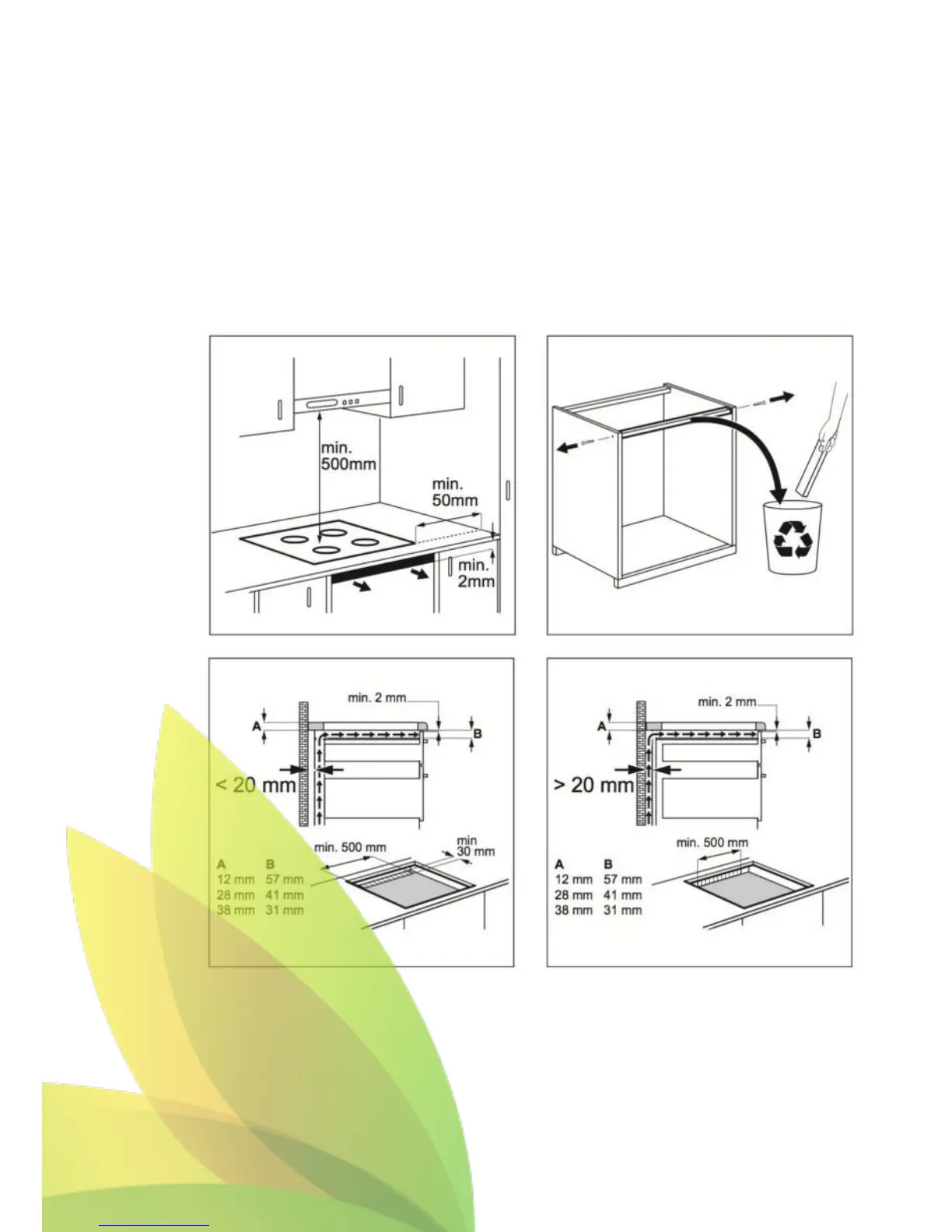

8.5 Assembly
min.
50mm
min.
500mm
min.
2mm
< 20 mm
min. 2 mm
A
B
A
12 mm
28 mm
38 mm
B
57 mm
41 mm
31 mm
min
30 mm
min. 500 mm
> 20 mm
min. 2 mm
A
B
A
12 mm
28 mm
38 mm
B
57 mm
41 mm
31 mm
min. 500 mm
