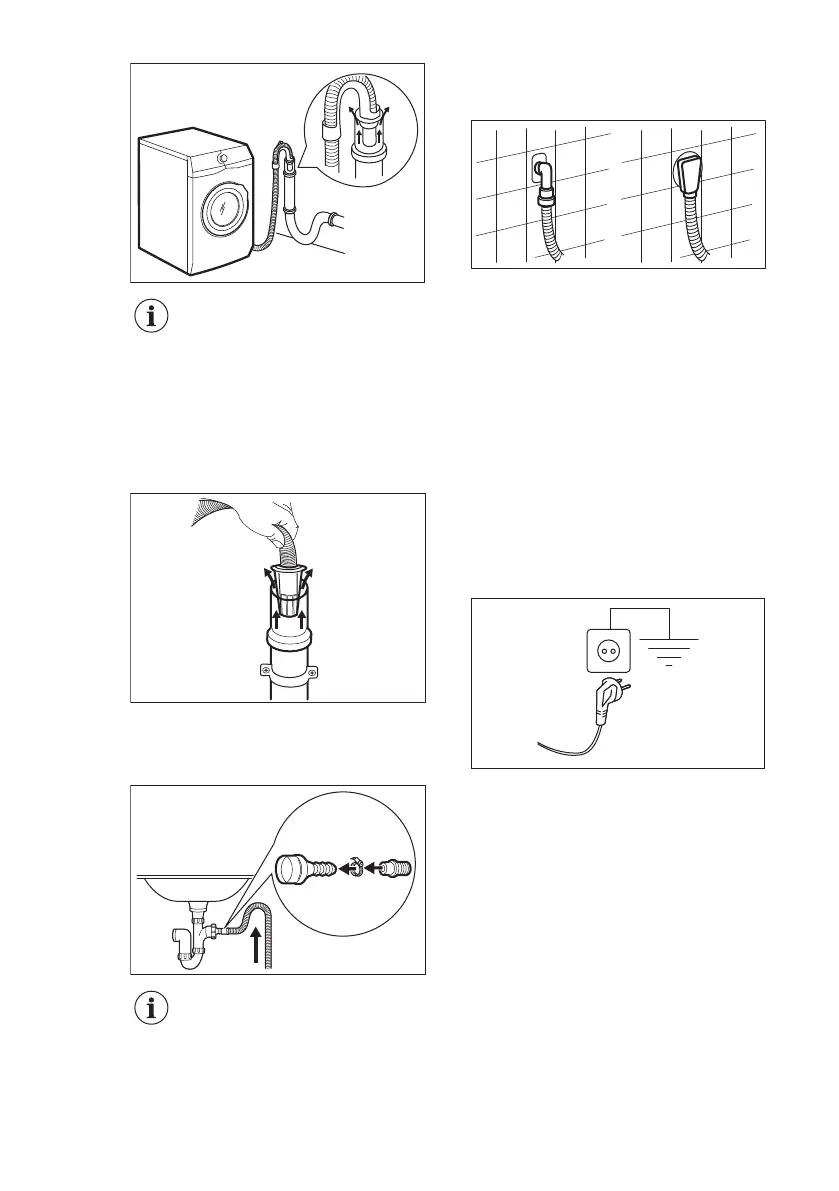

The end of the drain hose
must always be ventilated ,
i.e. the inner diameter of the
drain pipe (min. 38 mm -
min. 1.5") must be larger
than the external diameter of
the drain hose.
4. If the end of the drain hose looks like
this (see the picture), you can push it
directly into the stand pipe.
5. Without the plastic hose guide, to
a sink spigot - Put the drain hose in
the spigot and tighten it with a clamp.
Refer to the illustration.
Make sure that the drain
hose makes a loop to
prevent particles going into
the appliance from the sink.
6. Position the hose directly to a built-
in drain pipe in the room wall and
tighten it with a clamp.
5.5 Electrical connection
At the end of installation you can connect
the mains plug to the mains socket.
The rating plate on the inner edge of the
appliance door and the 'Technical Data'
chapter indicate the necessary electrical
ratings. Make sure that they are
compatible with the mains power supply.
Check that your domestic electrical
installation can take the maximum load
required, also taking into account any
other appliances in use.
Connect the appliance to an earthed
socket.
The power supply cable must be easily
accessible after installing the appliance.
For any electrical work required to install
this appliance, contact our Authorised
Service Centre.
The manufacturer does not accept any
responsibility for damage or injury
through failure to comply with the above
safety precaution.
ENGLISH 11

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the AEG L6FBI947P and is the answer not in the manual?

AEG L6FBI947P Specifications

General IconGeneral
Door hingeRight
Cord length1.8 m
Drum volume68.6 L
Control typeRotary, Touch
Door openingSide opening
Loading typeFront-load
Product colorWhite
Built-in displayYes
Door opening angle160 °
Appliance placementFreestanding
Dispenser tray type3-way
Drum capacity9 kg
Spin-drying classB
Maximum spin speed1400 RPM
Noise level (spin)76 dB
Noise level (wash)- dB
Foam control system-
Number of washing programs10
Connected load2200 W
AC input voltage230 V
AC input frequency50 Hz
Energy efficiency scaleA to G
Power consumption (off)0.5 W
Water consumption per cycle50 L
Energy efficiency index (EU 2017/1369)51.8
Weight and Dimensions IconWeight and Dimensions
Depth636 mm
Width597 mm
Height847 mm
Depth with door open1101 mm
Depth with door closed660 mm
