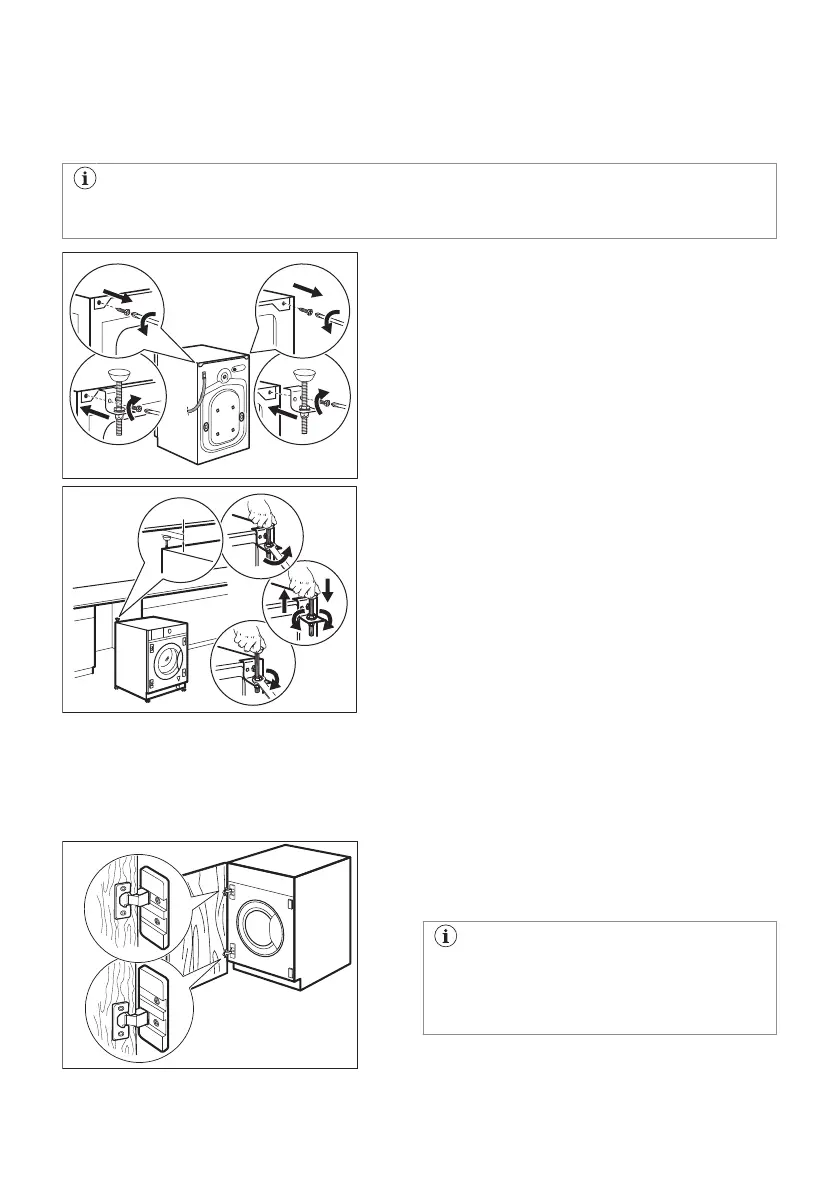

5.8 Installing anti-tilting device
(Accessory)
Install this accessory in case of risk of appliance tilting only.
If the height of the counter is 820 mm or lower, you cannot install the anti-tilting device.
1. Remove the screws of the top cover on the rear
of the appliance and install the anti-tilting device
as shown in the drawing.
2. Adjust the anti-tilting device so that the distance
from the counter is 10mm. Loosen the nut
counterclockwise with a 3mm wrench. Adjust the
height and turn the nut clockwise to fix it.
5.9 Preparation and assembly of the cupboard door
The dimensions of the cupboard door should be:
• width min. 595 - max. 598 mm;
• thickness 16-22 mm.
Factory pre setting
The appliance is originally pre set for the
assembly of a cupboard door opening from right
to left.
The best solution would be to screw the
upper hinge to the upper hole of the top
plate and the lower hinge to the lower hole
of the bottom plate.
16 ENGLISH
