Reversing The Door
14 818 36 23-02/7

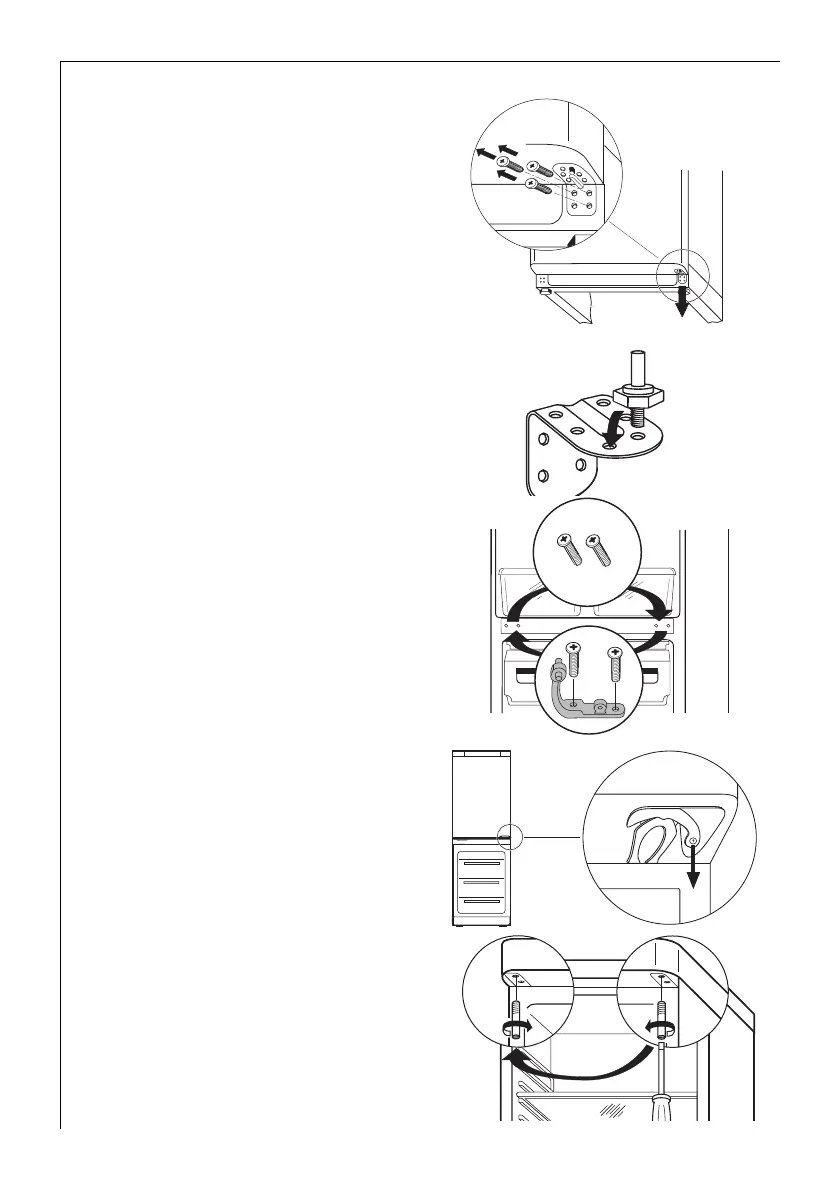

3. With the freezer compartment
door closed, remove the cross-
head screws from the lower door
bearing and remove the door
bearing downwards.
4. Move the bearing pivot from the
right to the left hand hole.
Remove the freezer compartment
door carefully to the front and
place on one side.
5. Unscrew the centre door bearing.
6. Remove the fridge compartment
door carefully to the front and
place on one side.
7. Unscrew the retaining screw for
the self-closing mechanism on the
bottom of the fridge compart-
ment door.
8. Move the upper bearing pivot to
the left.
