AEG ST 500 - Parallel and Circle Cutting Guides; Parallel Guide Assembly; Circle Cutting Setup; Maintenance and Service

6
ENGLISH
ST 500, STE 500, STEP 500
Using the parallel guide or circle cutting, parallel cuts of 0–200 mm, circular cuts of
100–400 mm are possible. Use cross-cut saw blades.
*Not included in standard equipment, available as an accessory.

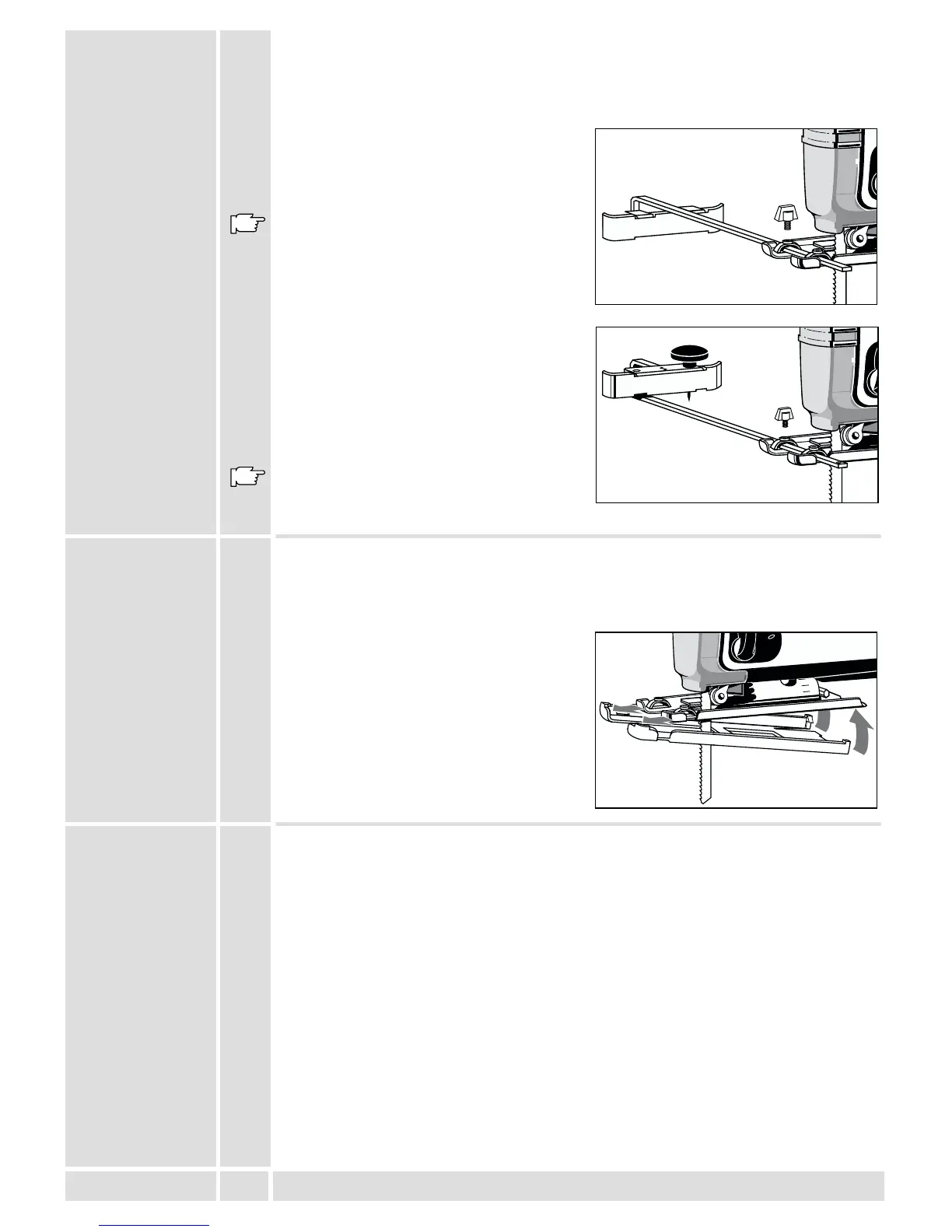

Push the parallel guide, with the contact
surface facing downwards, through the
lugs in the base plate and fasten it in
position with the capstand–headed screw.
For cutting from the left or from the right,
push the parallel guide in from the
appropriate side.
Push the parallel guide, with the contact
surface facing upwards, through the lugs
in the base plate and fasten it in position
with the capstand–headed screw.
Tighten the centre point into the parallel
guide from the top.
Ensure that the saw blade and the circle
centre point form one single line.
When working on delicate surfaces please use the plastic protection shoe.
*Not included in standard equipment, available as an accessory.
Fit the plastic protection shoe to the front
of the base plate (as illustrated) and fix the
lugs with the back of the base plate.
Bend up both lugs and remove the plastic
protection shoe.
Further accessories with part numbers are
shown in our catalogues.
In order to guarantee constant readiness for operation, the machine should be
checked for worn carbon brushes at one of the AEG after–sales service agencies.
Use only AEG accessories and spare parts. Should components need to be
replaced which have not been described, please contact one of our AEG service
agents (see our list of guarantee/service addresses).
If needed, an exploded view of the tool can be ordered. Please state the ten–digit
No. as well as the machine type printed on the label and order the drawing at your
local service agents or directly at: Atlas Copco Electric Tools GmbH, Postfach 320,
D–71361 Winnenden.
Parallel guide
and circle cutting
guide
(Accessory*)
Assembly of
parallel guide
Cutting a circle
Plastic protection
shoe
(Accessory*)
Assembly
Dismantling
Maintenance
