Combine receiver and transmitter
1.Turn on the transmitter and power the receiver. At this time, the receiver is in the state of confirming
the transmitter signal, and the LED light flashes slowly.
2.If the transmitter signal cannot be confirmed within 15 seconds, then enter the automatic frequency
matching mode, the receiver starts to search for the signal and perform frequency matching, and the
LED light flashes quickly.

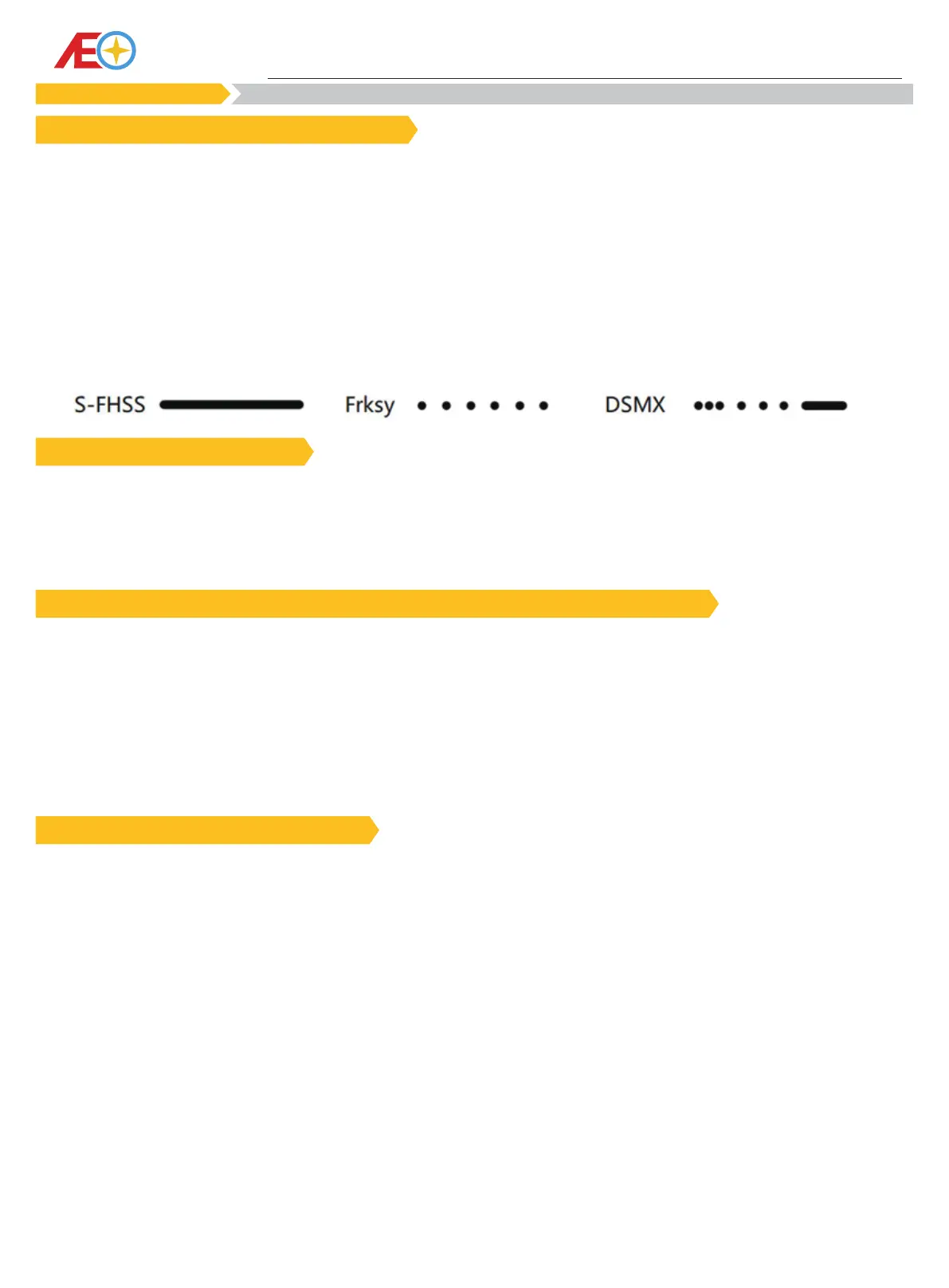

3.If the frequency matching is successful, according to different types of remote transmitters , there will
be a variety of different LED light feedbacks, including but not limited to the following three LED light
flashing methods. Please confirm according to the actual remote control whether the frequency
matching is successful or not.
How to use ESC
Connect the positive pole of the brushed motor to“M+” and the negative pole to “M-”to replace the
throttle channel, as picture 1.1.
The integrated brushed ESC has the lock function of preventing accidental touch. After the receiver is
powered on, the throttle channel remains at the lowest position for more than 2 seconds, then this function
can be canceled and the brushed ESC can be used normally.
Connection for 2CH electromagnetic servo and PWM signal servo
Electromagnetic servo connection:
Connect the positive pole to“CH1 Magnet Servo 1” and the negative pole to “CH2 Magnet Servo 2”, and
set up the servo’s positive inversion with transmitter. Then you can control the electromagnetic servo after
combining transmitter.
PWM signal servo connection:
The most frequently used servo is PWM mode, so please confirm the voltage range of servos.
Connect the negative/positive/signal (black/red/white) three wires to GND/ VIN / CH1-CH6”respectively,
then you can control the servo after combining.
TELEM Function Introduction
Firstly , you need a remote control with TELEM to use this TELEM function.
This function could realize real-time monitoring to battery voltage, receiver voltage, receiver signal strength
and receiver operating temperature, allowing users to master the working status of receiver and battery in
real time to avoid unexpected situations in flight.
Instruction Manual
AEORC RX34x Series Mini Micro Receiver
(with 2CH electromagnetic servo control function)
