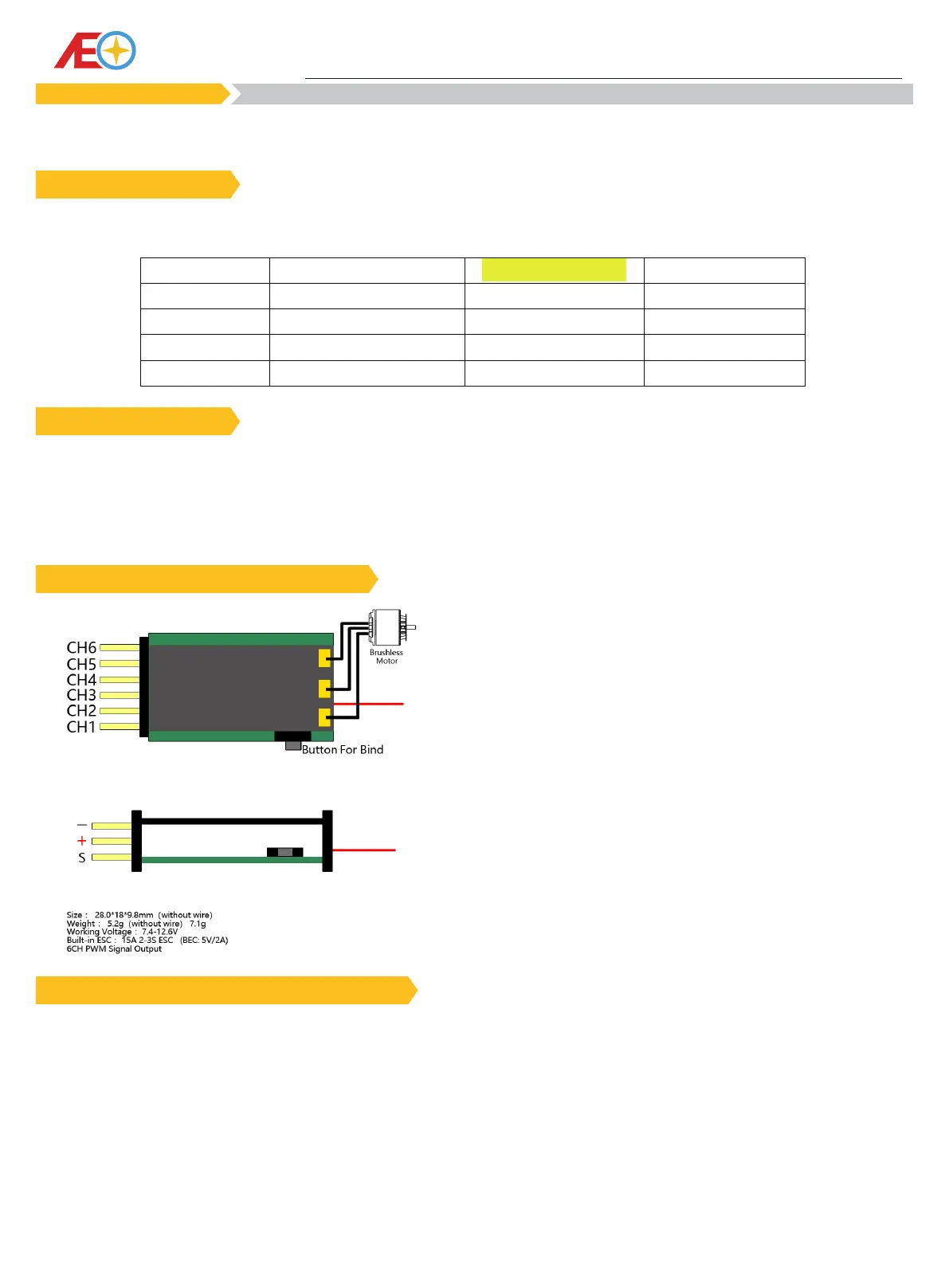

AEO RX44x Series 6CH Mini Micro Receiver
(Integrates 2-3S/15A brushless ESC)
Instruction Manual
Thank you for choosing AEORC mini micro receiver, this receiver integrates 2-3S/15A
brushless ESC with 5V/2A BEC, please read this document carefully before use.
RX44x series include below 4 versions for choice, please understand the corresponding basic functions
according to below form.
Version selection
Basic Data
Combine receiver and transmitter
1.Turn on the transmitter and power the receiver.
2.Press the binding button and holding, after about 2s, the red LED of receiver will flash from slow to
quick, then loosen the binding switch, at present, come into binding mode.
3.If necessary, please set up the transmitter to bind.
4.If the binding is successful, according to different types of remote transmitters , there will
be a variety of different LED light feedbacks, including but not limited to the following three LED light
flashing methods. Please confirm according to the actual remote control whether the frequency
matching is successful or not.
Protocol 15A/2-3S brushless ESC TELEM
RX442 S-FHSS √
RX444 DSMX/2 √
RX445 FRSKY-D16 √
RX446 FRSKY-D8 √
Size： 28.0*18*9.8mm（without wire）
Weight： 5.2g（without wire） 7.1g（with wire）
Working voltage：7.4-12.6V
Built-in ESC：15A 2-3S ESC BEC: 5V/2A
Over voltage protection：without 6CH servo signal output （standard servo plug）
Receiver interface definition
