ELECTRIC CONNECTIONS
The unit must be connected directly to
an electrical outlet or to an indepen-
dent circuit.
The FCL cassette fan coils must be
powered with 230V ~ 50Hz current
and have an earth connection. The line
voltage must remain within the toleran-
ce of ±10% with respect to the nominal
value.
In order to protect the unit against short
circuits, mount a max.2A 250V (IG)
magnet circuit breaker omnipolar
switch on the power supply line with
a minimum contact opening distance
of 3 mm.
The electrical power supply cable must
be of the H07 V-K or N07 V-K type with
450/750V insulation if inside a tube
or raceway. Use cables with double
H5VV-F type insulation for visible
cable installation.

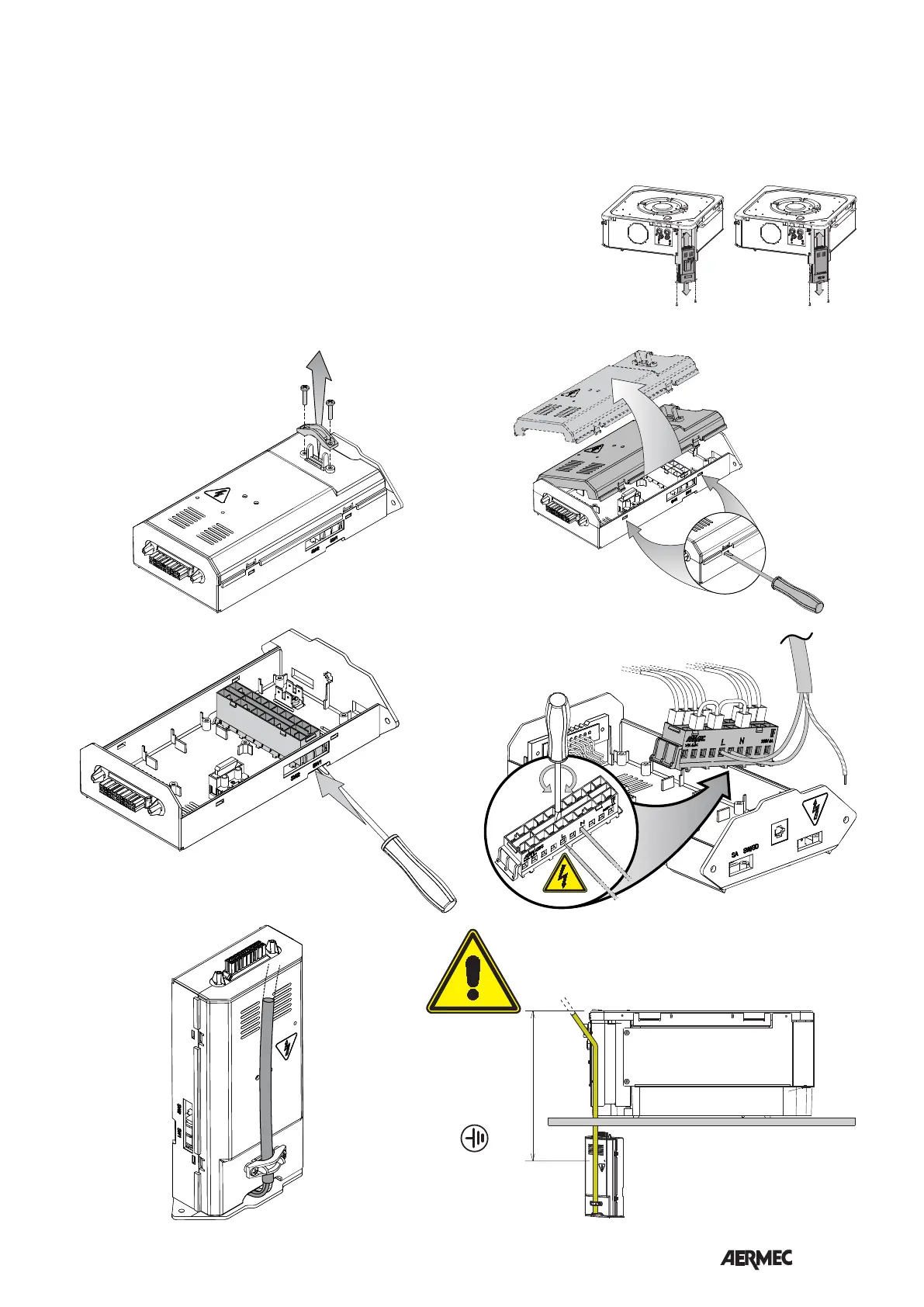

Refer to the wiring diagrams of the
appliance and the control panel.
230VAC
- L - N
230VAC
