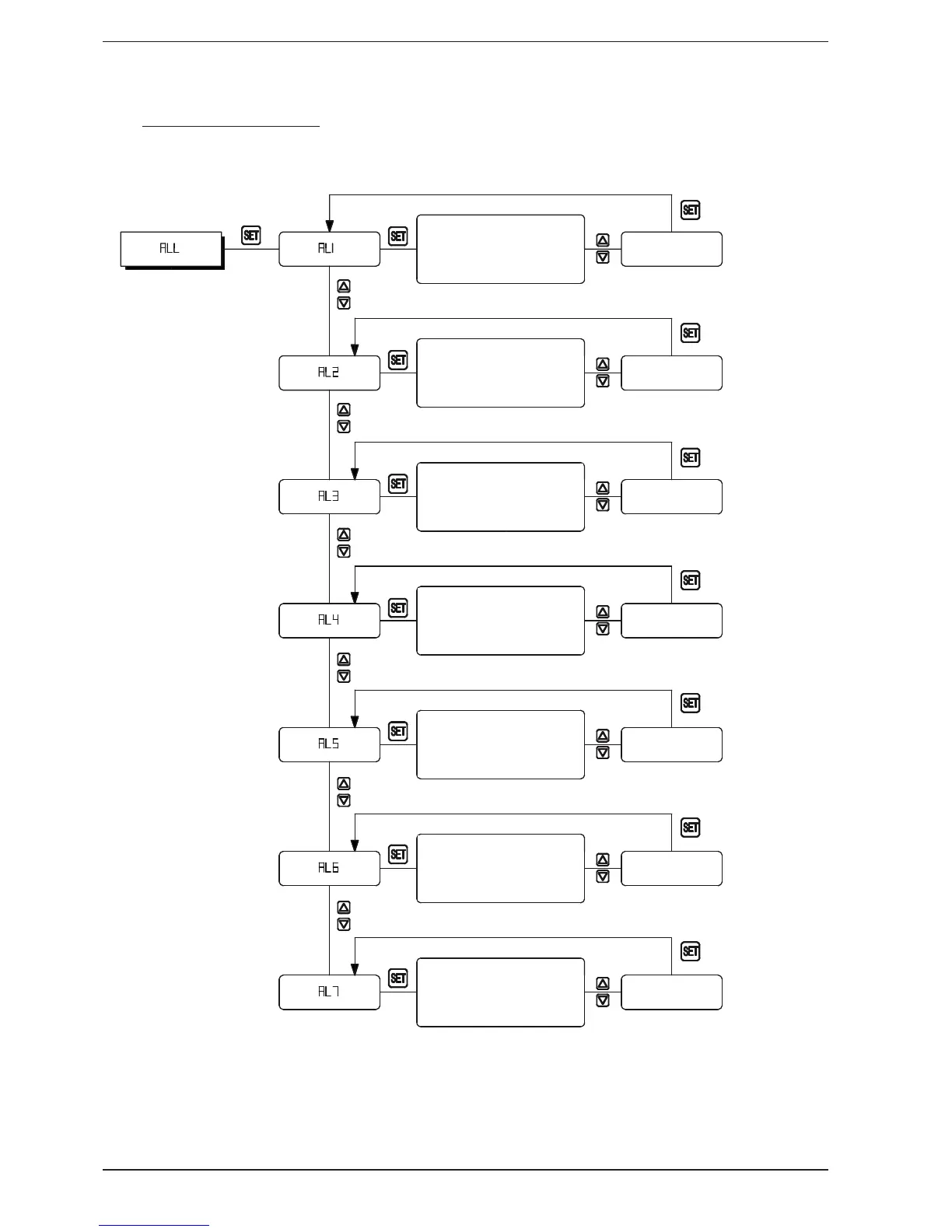

12.6. MANUFACTURER (COS)
/ ALARM (ALL) BRANCH
DIAGRAM
AL1 value
variation
AL2 value
variation
AL3 value
variation
AL4 value
variation
AL5 value
variation
AL6 value
variation
AL7 value
variation
Low pressure alarm delay from
compressor start-up
Number of low pressure events/
hour --> switch from automatic
reset to manual reset
Time during which the low
pressure alarm must remain active
for the alarm to be triggered (at
the end of this time period)
Time during which the low pressure
alarm must remain inactive for the
alarm to be deactivated (at the
end of this time period)
Set the temperature value
associated with probe S1 just
above the value at which the high
temperature alarm is triggered
Set the continuous duration of the
condition S1 > AL5, outside which
the high temperature alarm is
triggered
Number of high pressure alarms/
hour beyond which resetting is no
longer automatic and becomes
manual
