ASSEMBLY INSTRUCTIONS (cont’d)

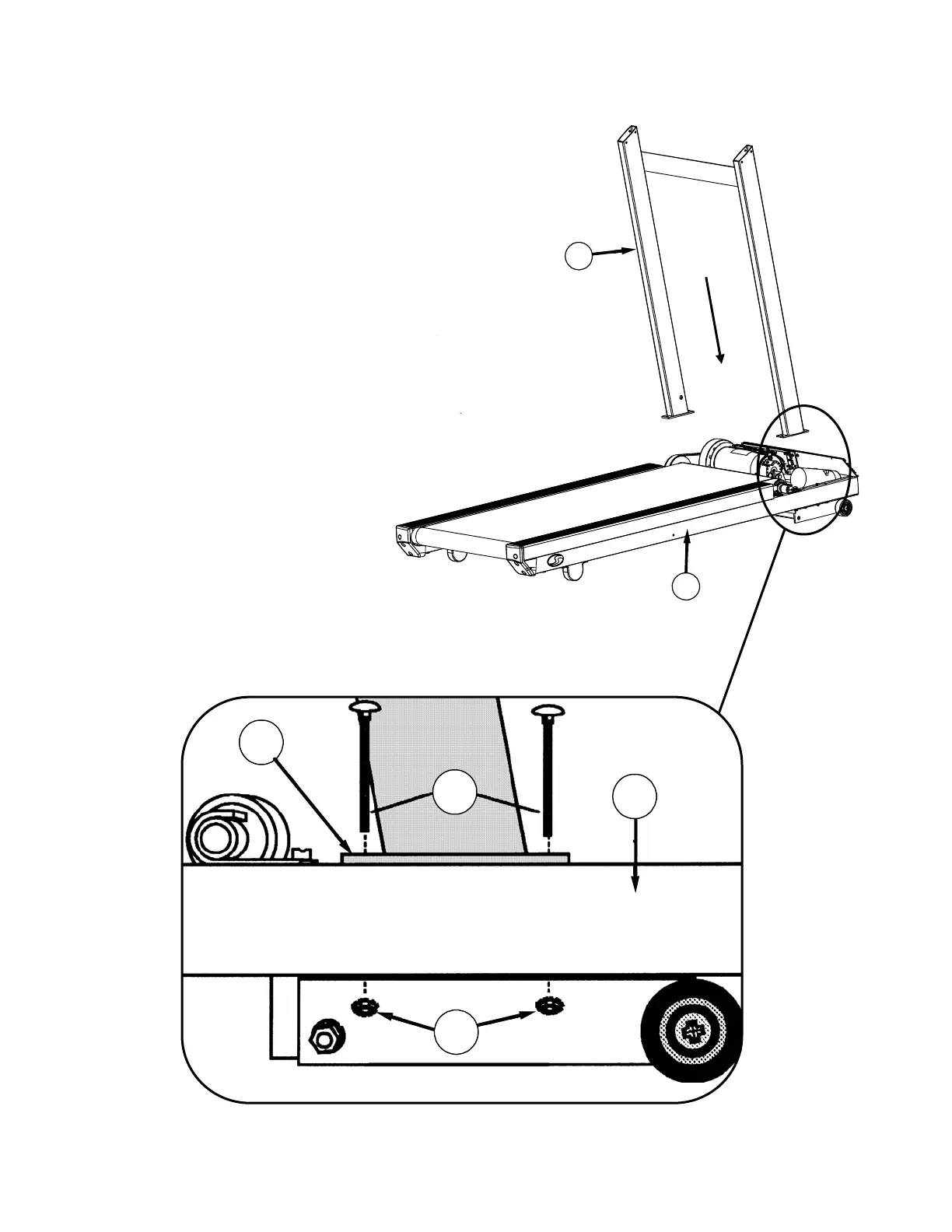

Step One:
Carefully place the bottom of the upright (1) on the
frame (2) so the two holes in the plate at the bottom
of the upright line up with the holes in the frame.
Insert the 3.5” carriage bolts (3) through the upright
and the frame.
Loosely install a 1/4-20 kep nut (4) to each carriage
bolt to keep the upright in place. Follow the same
procedure for the other side of the upright. Do not
tighten any nuts until Step Ten.
1
4
2
4
3
2
To Next Page
