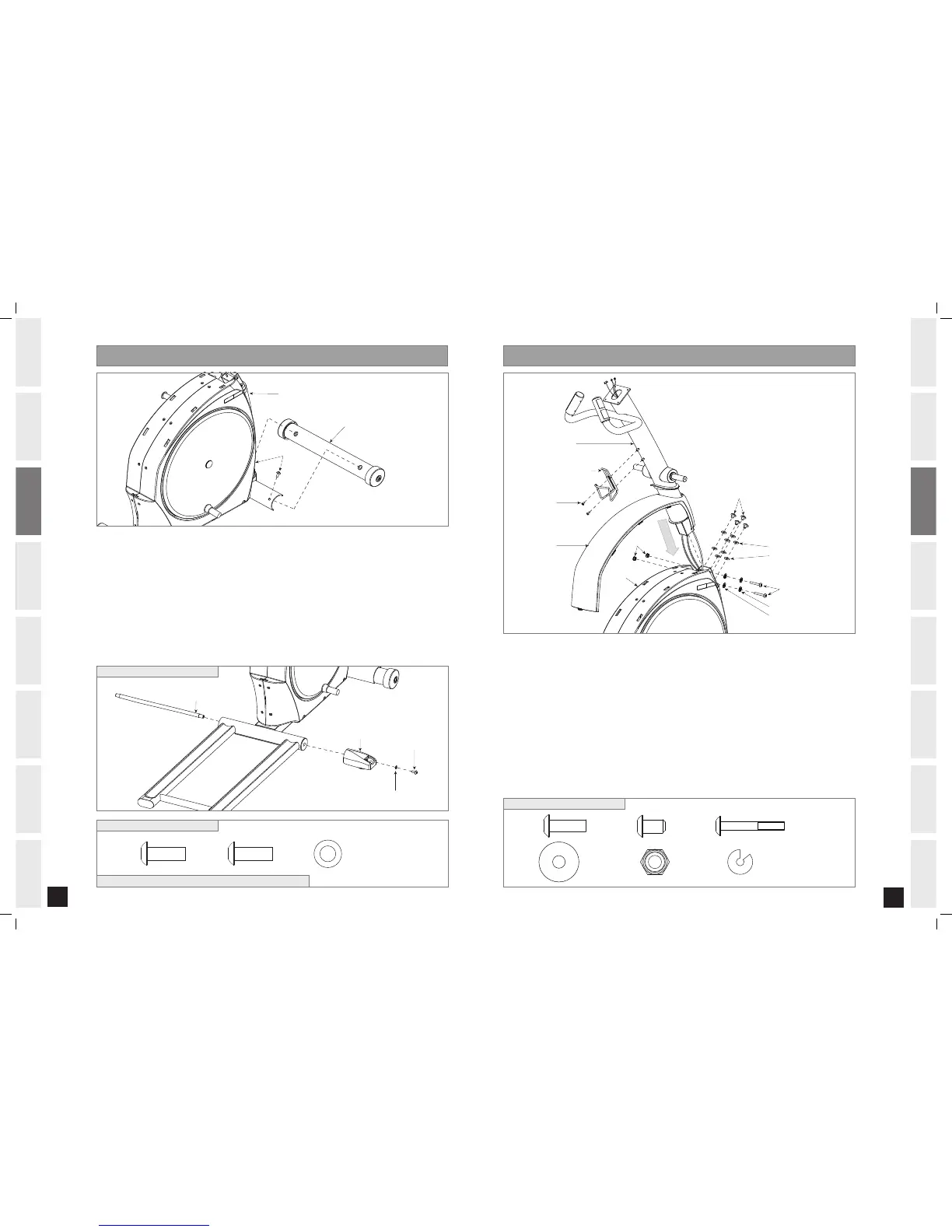

ASSEMBLY STE P 1
A) Open HARDWARE BAG FOR STEP 1.
B) Attach the FRONT STABILIZER TUBE to the MAIN FRAME using 2 BOLTS (A).
NOTE: STEPS C-E ARE 3.0 AE ONLY.
C) Slide FOOT LEVELER AXLE through MAIN FRAME TUBE. (The FOOT LEVELER AXLE is on top of bottom
styrofoam, beside the side shroud).
D) Slide left and right FOOT LEVELERS onto the AXLE.
E) Attach FOOT LEVELERS to the FOOT LEVELER AXLE using 2 BOLTS with BLUE THREAD LOCK (B) and
2 FLAT WASHERS (C).
BOLT (A)
20 mm
Qty: 2
BOLT (B)
20 mm
Qty: 2
FLAT WASHER (C)
16 mm
Qty: 2
BLUE THREADS
HARDWARE BAG FOR STEP 1 CONTENTS :
BOLT (A)
FRONT STABILIZER TUBE
MAIN FRAME
BOLT (B)
FLAT WASHER (C)
STABILIZER BAR
CAP THINGY
MID-STABILIZER COVER
BOLT (A)
FRONT STABILIZER TUBE
MAIN FRAME
BOLT (B)
FLAT WASHER (C)
FOOT LEVELER
FOOT LEVELER AXLE
3.0 AE ONLY
ASSEMBLY STE P 2
WASHER (W)
19 mm
Qty: 6
NUT (X)
Qty: 2
SPRING WASHER (Y)
15.4 mm
Qty: 6
BOLT (D)
15 mm
Qty: 2
BOLT (E)
12 mm
Qty: 4
BOLT (F)
70 mm
Qty: 2
HARDWARE BAG FOR STEP 2 CONTENTS :
Open HARDWARE BAG FOR STEP 2.
Slide CONSOLE MAST BOOT and TOP CAP onto the bottom of the CONSOLE MAST.
Carefully pull the CONSOLE WIRES through the CONSOLE MAST using the twist tie located inside the
CONSOLE MAST.
DO NOT PINCH WIRES!
Attach the CONSOLE MAST to the MAIN FRAME using 4 BOLTS (E), 4 WASHERS (W) and 4 SPRING WASHERS
(Y)in the front and 2 BOLTS (F), 2 WASHERS (W), 2 SPRING WASHERS (Y) and 2 NUTS (X) from the side.
Attach the WATER BOTTLE HOLDER to the mast using 2 BOLTS (D).
A.
B.
C.
D.
E.
BOLT (D)
TOP CAP
MAIN FRAME
WATER BOTTLE CAGE
CONSOLE MAST
BOLT (E)
BOLT (F)
SPRING WASHER (Y)
SPRING WASHER (Y)
NUT (X)
WASHER (W)
WASHER (W)
NOTE: 4.0 AE ONLY USES BOLT (A) WHILE 3.0 AE USES ALL HARDWARE SHOWN
